CommandCenter Display 9980 Self-Propelled Peanut Combine
Message Center
Diagnostic Address
Allows you to select a desired controller and
make address modifications or view
addresses (see your AMADAS/John Deere
dealer).
1.
Rotate the Selection dial until the
Diagnostic Address icon (B) is highlighted.
2. Press Confirm.
Diagnostic Trouble Codes
Allows you to view controllers, trouble code
addresses, code (active or not), and counts
how many times code is displayed (refer to
Diagnostic Trouble Codes in the Diagnostic
Trouble Codes section for further information).
1. Rotate the Selection dial
until the
Diagnostic Trouble Codes icon is
highlighted.
2. Press Confirm.

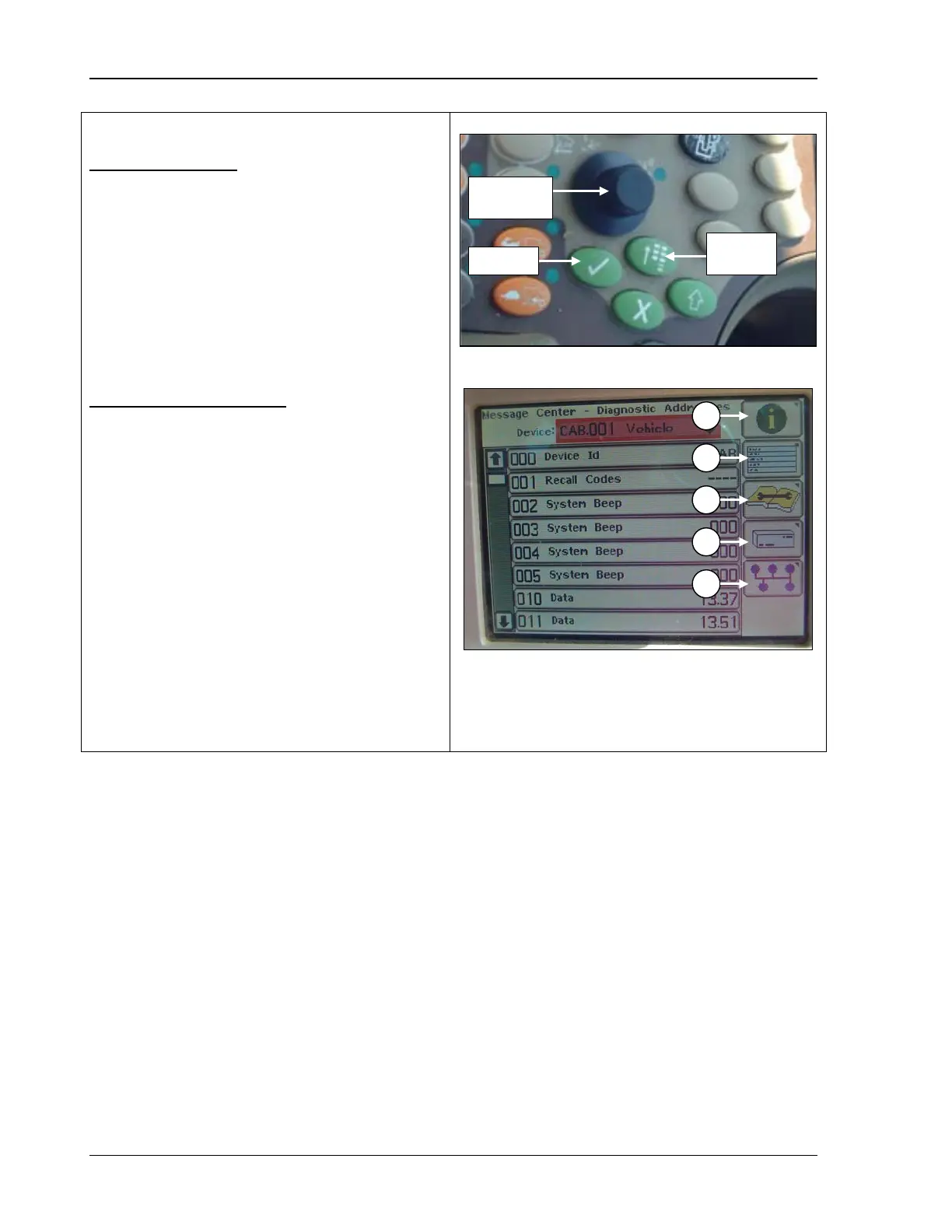

A – Message Center Icon
B – Diagnostic Address Icon
C – Diagnostic Trouble Codes Icon
D – Electronic Control Unit Information Icon
E – CAN Bus information Icon
Main
Menu
Selection
Dial
Confirm
A
B
C
D
E
