CommandTouch Cornerpost 9980 Self-Propelled Peanut Combine

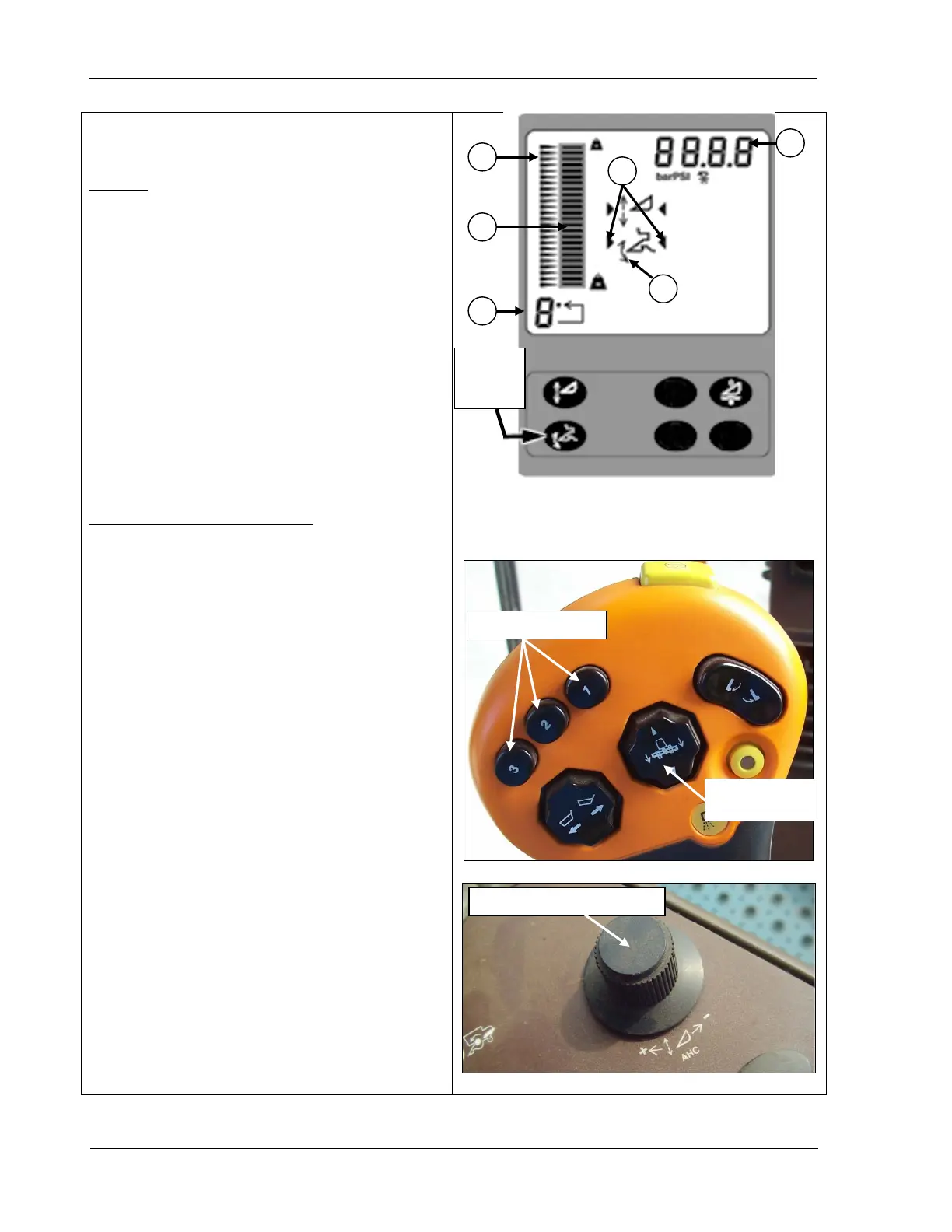

Header Height Resume
Header height resume functions as follows:
To start:
1.
Press the header height resume button
(top photo)
to enable the system; the
header height resume symbol (A) appears
on the display.
2. Activate the header by pressing one of the
activation buttons (middle photo)
on the
multifunction control handle; the system
activation arrows (B) display to indicate the
system is active.
Note that the activation number in the
lower left hand corner (C) indicates which
activation button was selected.
To use header height resume:
•
To change the height set point of the
activation buttons, press the desired
activation button
and adjust the height
using the header height control dial
(bottom photo).
Turn the dial toward the plus (+) sign to
raise the header and set point or toward
the minus (-) sign to lower the header and
set point.
• The bar graph (E) and numeric display (F)
show the header’s relative position based
on the header height resume sensor linked
to the feeder house.
• Manually adjusting the header height using
the header raise lower switch (middle
photo) deactivates the system.
•
Press an activation button (middle photo)
to reactivate the system. The header
automatically moves
to the preselected
height.
• Press header height resume (top photo) to
disable system.
A
B
C
E
D
F
Header
height
resume
Activation buttons
Header height control dial
Header raise/
lower switch
A - Header height resume
symbol
B – System activation arrows
C – Activation button number
D – Height set point
E – Bar graph
F – Numeric display
