E4 Series
Maintenance Manual
Power Plant
Page 262
E4.08.04
Rev. 29
71 - Maintenance Procedures
01-Jul-2020
Refer to Fig. 71 - 81 for an overview of the wiring harness installation described in this
paragraph

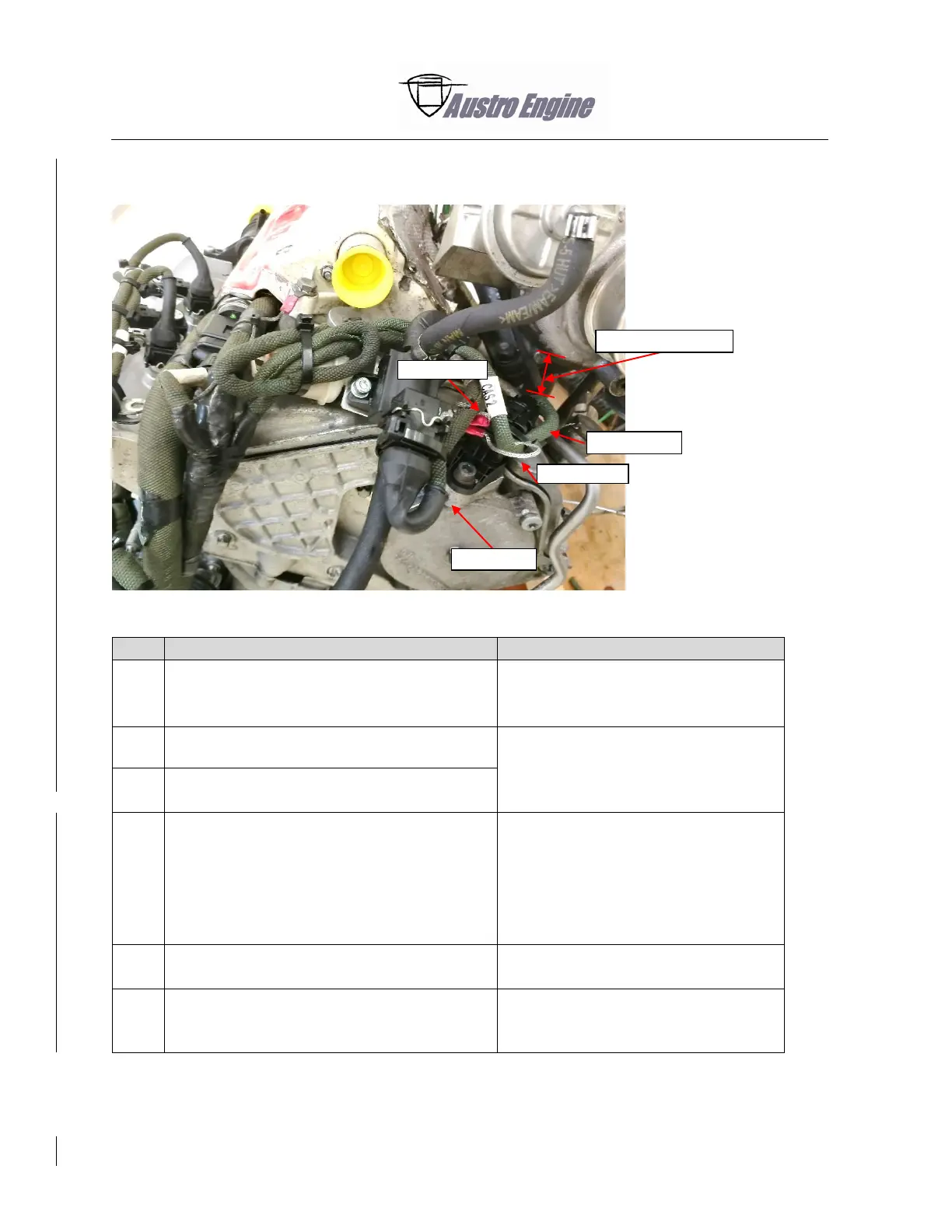

Fig. 71 - 81 Harness installation overview
Detail Steps/Work Items
Key Items/References
(1)
Install the BPA blade terminal [11] with the
mounting screw of the BPA.
Torque 3 Nm.
Apply Loctite 243.
Refer to Fig. 71 - 82.
(2)
Connect the pigtail of CAS2 to the blade
terminal of BPA.
Refer to Fig. 71 - 83.
(3)
Connect the pigtail of BPA to pigtail of CAS2
(double connector).
(4)
If the cable of CAS2 branch is too long, fold it
back and attach it with cable tie No.[05] to
prevent cable caving.
The cable must not touch hot parts or
any other installation.
The permitted area to fold the cable is
marked green in Fig. 71 - 84.
Do not fold the cable back in the red
marked area.
(5)
Attach the CAS2 branch with a cable tie
No.[05] on the CAS2 connector housing.
Refer to Fig. 71 - 85.
(6)
Attach the branch of BPA and CAS2 to the
BPA bracket.
Use the edge clip No.[06] and cable tie
No.[05]
Refer to Fig. 71 - 86.
BPA Branch
Pigtail BPA
min 25 mm distance
CAS 2 Branch
Pigtail CAS 2
