Ruote - Sospensioni - Freni
Wheels - Suspensions - Brakes
sezione / section
G 7
39
A
B
C
D
E
F
G
H
L
M
N
P
749/749 DARK/749S Aggiornamento/Update - M.Y. 2006 - edizione/edition 00

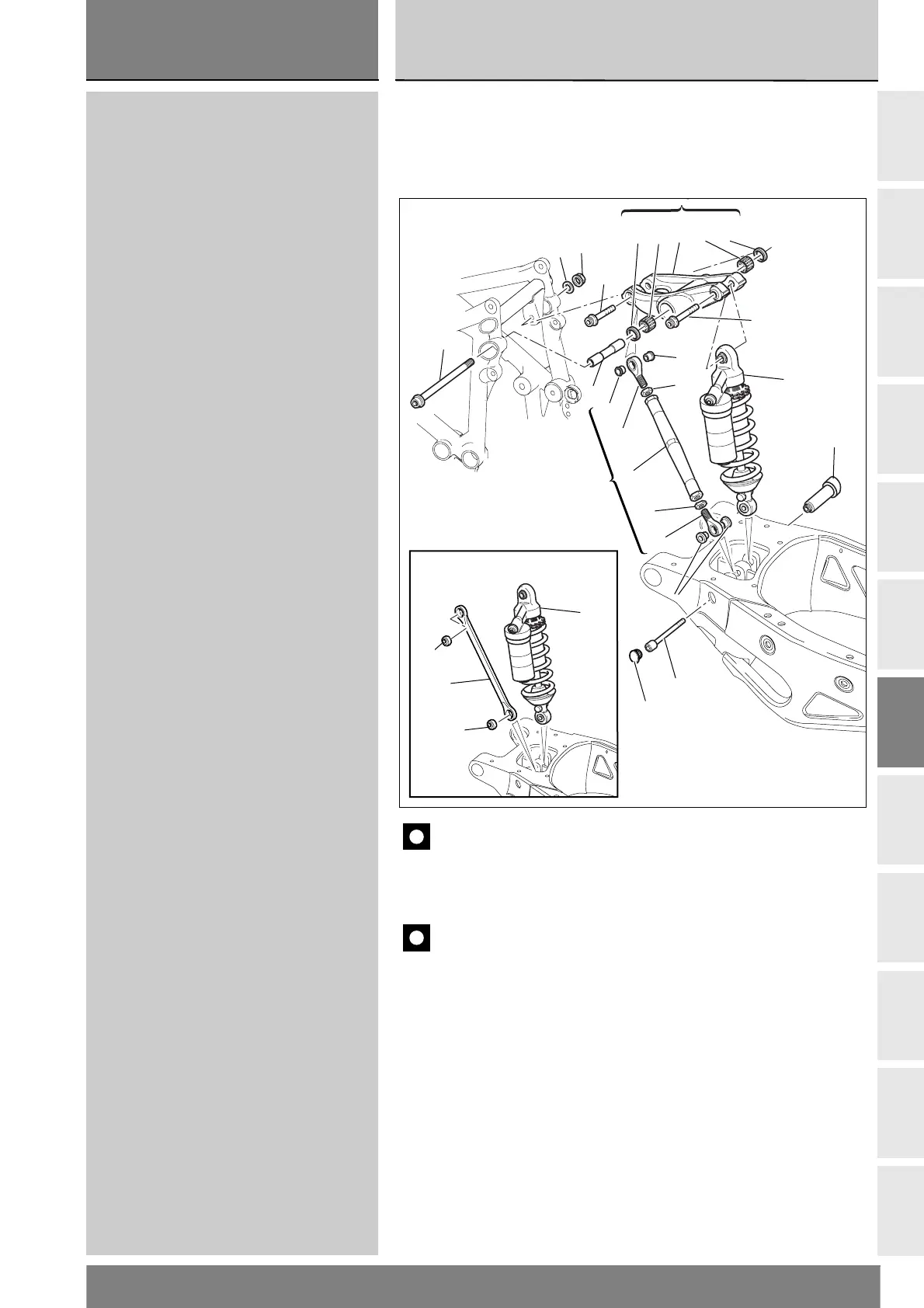

7 - SOSPENSIONE POSTERIORE
1Vite
2 Rosetta
3 Dado
4Vite
5 Distanziale
6 Bussola
7 Snodo sferico
8 Dado
9Tirante
10 Dado
11 Snodo sferico
12 Vite
13 Bussola
14 Astuccio a rullini
15 Anello di tenuta
16 Vite
17 Ammortizzatore
18 Bilanciere
19 Tirante completo
20 Bilanciere completo
21 Tappo
22 Snodo sferico
12
21
11
10
9
22
22
19
9
1
7
6
5
6
8
6
13
17
16
2
3
15
14
18 14 15
4
17
749 Dark
7 - REAR SUSPENSION
1Screw
2 Washer
3Nut
4Screw
5 Spacer
6Bush
7 Ball joint
8Nut
9Tie-rod
10 Nut
11 Ball joint
12 Screw
13 Bush
14 Roller bearing
15 Seal
16 Screw
17 Shock absorber
18 Rocker arm
19 Tie-rod assembly
20 Rocker arm assembly
21 Plug
22 Ball joint
Importante
I riferimenti in grassetto all’interno di questo capitolo indicano che i
particolari richiamati non sono presenti nelle immagini a fianco del testo, ma
devono essere ricercati nella presente tavola esplosa.
2
Important
Bold reference numbers in this section identify parts not shown in the
figures alongside the text. Refer to the exploded view diagram.
