Mototelaio
Frame
sezione / section
H 3
11
A
B
C
D
E
F
G
H
L
M
N
P
749/749 DARK/749S - M.Y. 2005 - edizione/edition 00

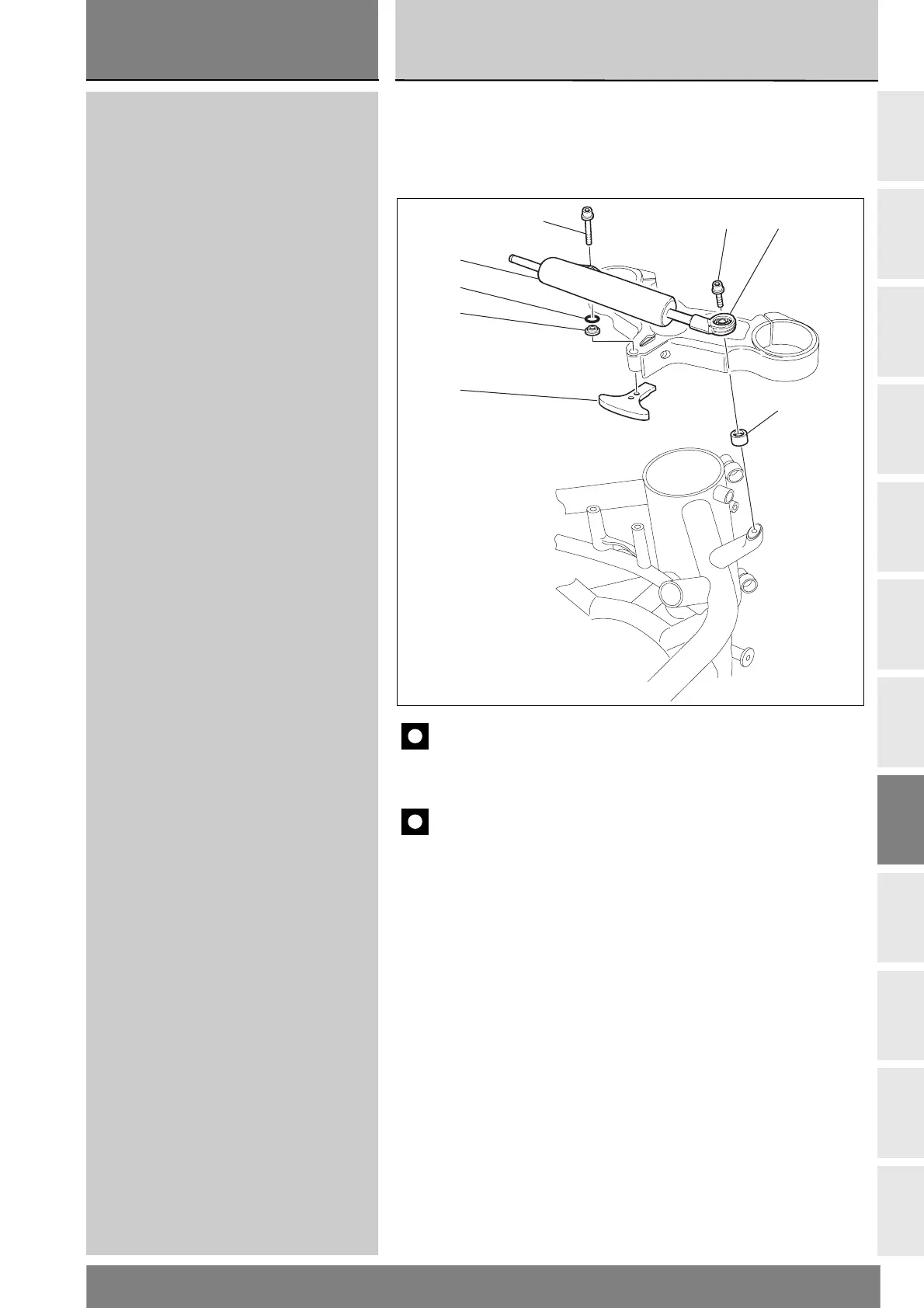

3 - AMMORTIZZATORE DI STERZO (749/749S)
1 Ammortizzatore di sterzo
2 Guarnizione O-Ring
3 Distanziale
4Vite
5Vite
6 Snodo sferico
7 Distanziale
8 Martelletto
7
654
1
2
3
8
3 - STEERING DAMPER (749/749S)
1 Steering damper.
2 O-ring
3 Spacer
4Screw
5Screw
6 Ball joint
7 Spacer
8 Steering lock peg
Importante
I riferimenti in grassetto all’interno di questo capitolo indicano che
i particolari richiamati non sono presenti nelle immagini a fianco del testo,
ma devono essere ricercati nella presente tavola esplosa.
2
Important
Bold reference numbers in this section identify parts not shown in
the figures next to the text. Look up the exploded view diagram.
