Motore
Engine
sezione / section
N 3.3
47 749/749 DARK/749S - M.Y. 2005 - edizione/edition 00

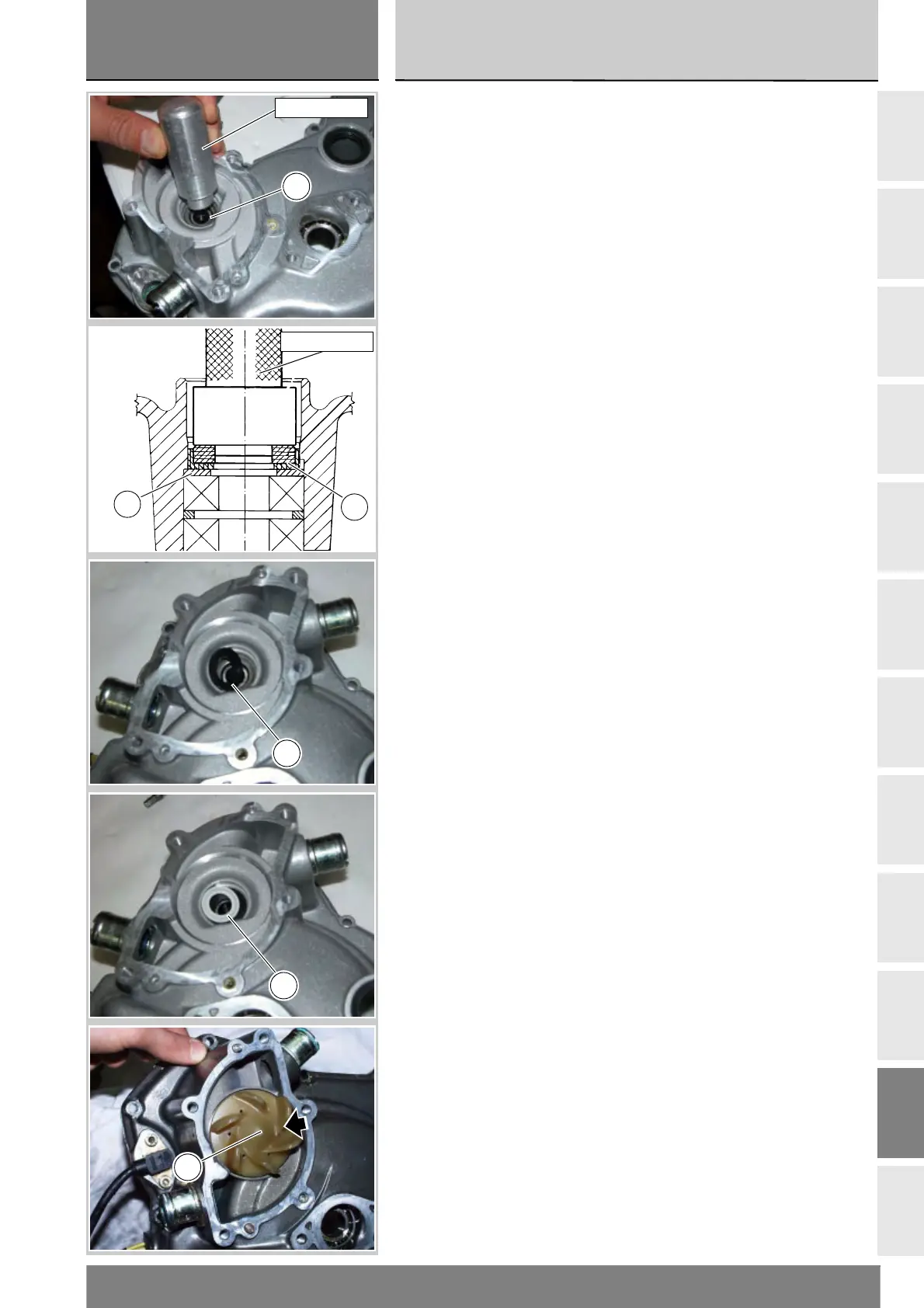

Capovolgere il coperchio e, utilizzando
il tampone cod. 88713.0870, installare
la controfaccia (8), orientata come
in figura, fino in battuta sul
distanziale (7).
Inserire l'anello di tenuta (B) e la
rosetta ceramica (A).
Inserire l'alberino della girante (10)
con la tenuta meccanica (9) e
capovolgere il coperchio.
Turn over the cover and use drift part
no. 88713.0870 to install the locating
ring (8) as shown in the figure, fully
home against spacer (7).
Fit seal ring (B) and ceramic washer (A).
Insert rotor shaft (10) and seal (9).
Turn over cover again.
8
88713.0870
88713.0870
7
8
B
A
10
