Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

▶
"Disconnecting the power cord" on page 53
.
▶
"Getting access to the component" on page 56.
▶
Release all HDD/SSD modules and pull them out a few centimeters, see
"Removing a 2.5-inch HDD/SSD module" on page 169.
The HDD/SSD modules need not to be removed. But if you want to
remove them nevertheless, check if all HDD/SSD modules are
uniquely identified so that you can reinsert them into their original
bays.
▶
Release all dummy modules and pull them out a few centimeters, see
"Removing a 2.5-inch HDD/SSD dummy module" on page 165.
▶
"Removing the fan cage" on page
74.
Removing the defective 8x 2.5-inch HDD backplane
▶
If applicable, remove the SAS expander board holder, see "Removing the
SAS expander board holder" on page 209.
▶
If applicable, remove the internal RAID riser module, see "Removing the
internal RAID riser module" on page 273.
▶
Disconnect all cables from the HDD backplane.

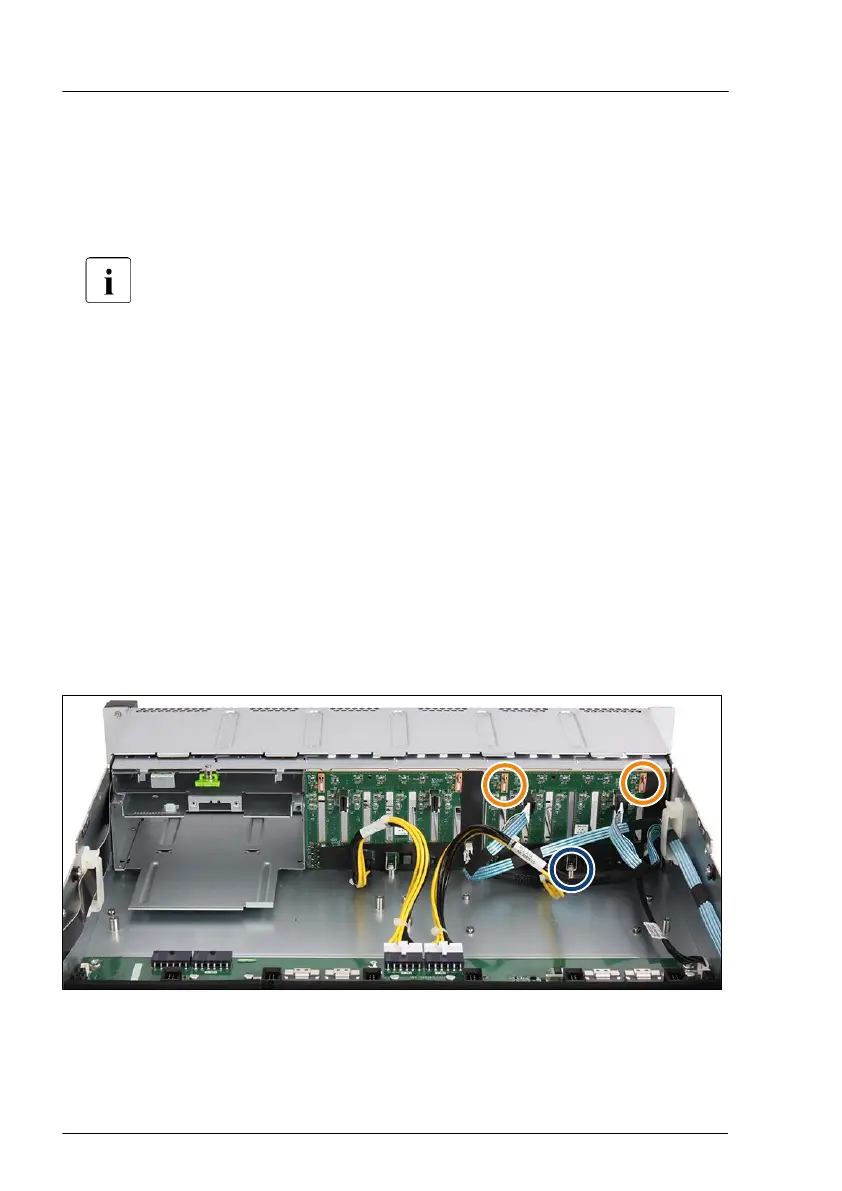

Figure 85: Removing the 8x 2.5-inch HDD/SSD backplane
Hard disk drive (HDD) / solid state disk (SSD)
180 Upgrade and Maintenance Manual RX2540 M6

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
