Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

Installing the rear 4x 2.5-inch HDD backplane

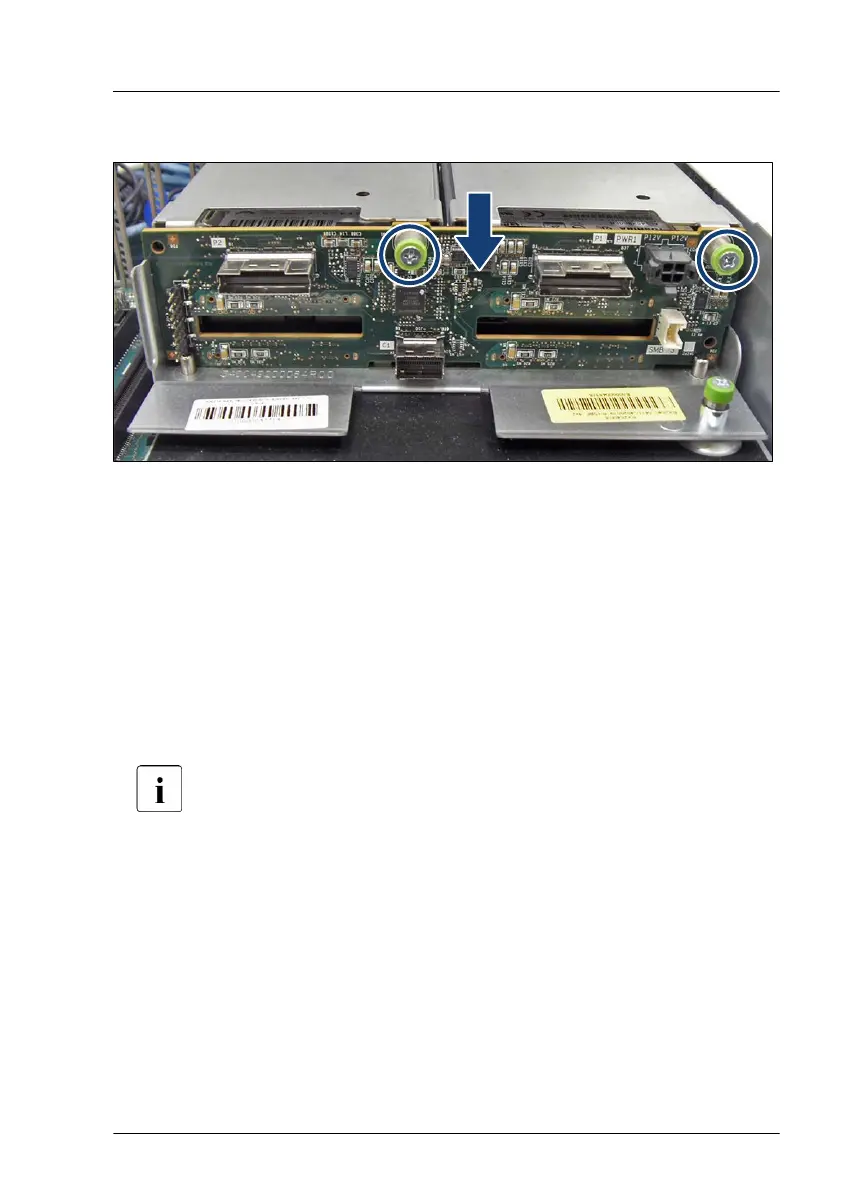

Figure 122: Installing the rear 4x 2.5-inch HDD backplane
▶
Position the rear HDD backplane.
▶
Fasten the screw (see circle).
▶
Connect the cables to the rear HDD backplane, see Figure 1
15 or
Figure 1
16.
Concluding steps
▶
Insert all HDD/SSD modules, see "Installing a 2.5-inch HDD/SSD module"
on page 167.
Ensure that you install the HDD/SSD module in the bay it was located
before the HDD backplane replacement.
▶
Insert all dummy modules, see "Installing a 2.5-inch HDD/SSD dummy
module" on page
170
.
▶
"Reassembling" on page 60.
▶
"Connecting the power cord" on page 65.
▶
"Switching on the server" on page 69.
▶
If applicable, "Installing the front cover with lock" on page 69.
Hard disk drive (HDD) / solid state disk (SSD)
RX2540 M6 Upgrade and Maintenance Manual 223

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
