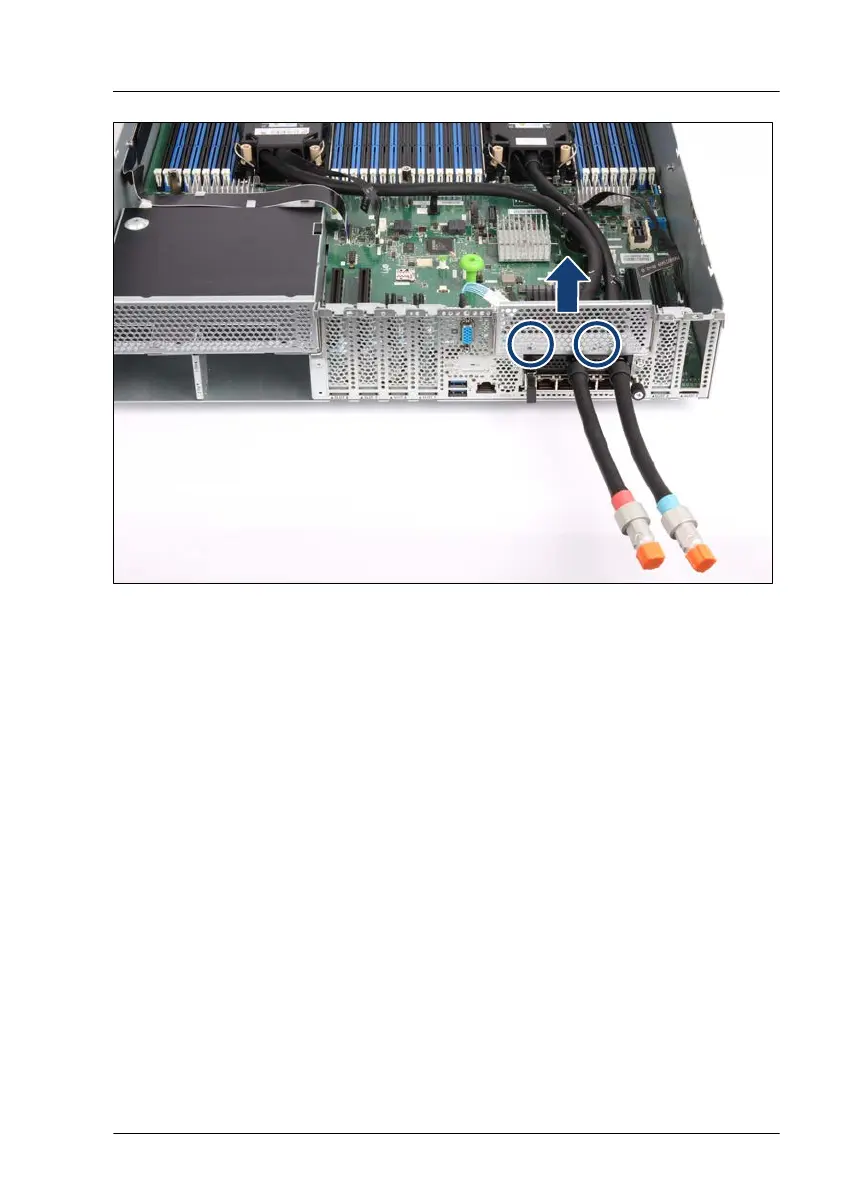

Figure 239: Removing the LC kit (A)
▶
Remove the two screws of the air grid (see circles).
▶
Remove the air grid (see arrow).
▶
Remove the OCP dummy cover or the OCP module, see "Removing the
OCP dummy cover" on page
250
or "Removing an OCP module" on
page 252.
Liquid cooling (LC)
RX2540 M6 Upgrade and Maintenance Manual 371

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
