236 Upgrade and Maintenance Manual
RX300 S8
Expansion cards and backup units
Inserting the SFP+ transceiver module

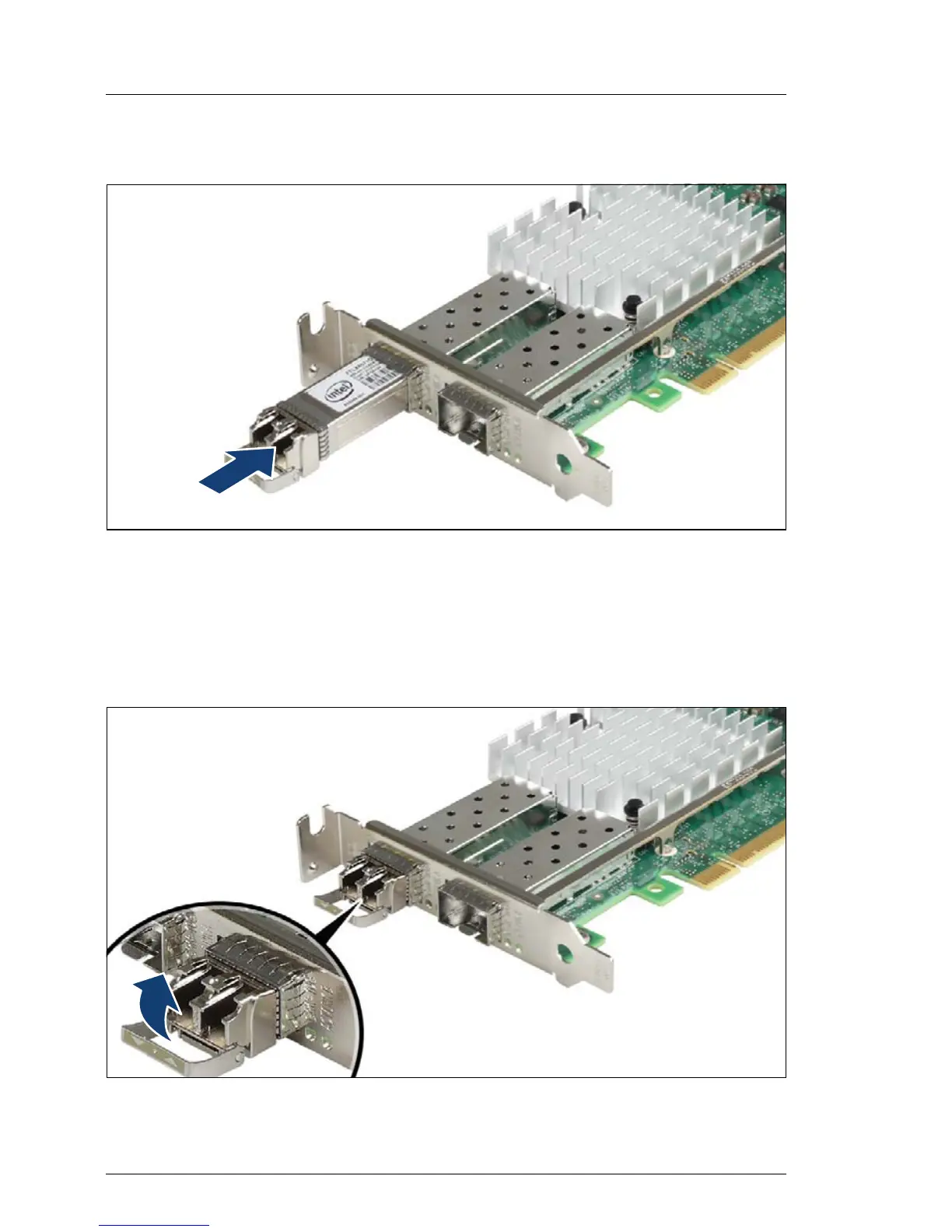

Figure 124: Inserting the SFP+ transceiver module
Ê Insert and slide the SFP+ transceiver module into the socket connector as
far as it will go.
I If only one slot is equipped with a SFP+ transceiver module, use the
primary connector as shown.
Figure 125: Latching the locking bail
