RX300 S8
Upgrade and Maintenance Manual 237
Expansion cards and backup units
Ê Carefully fold up and latch the locking bail.

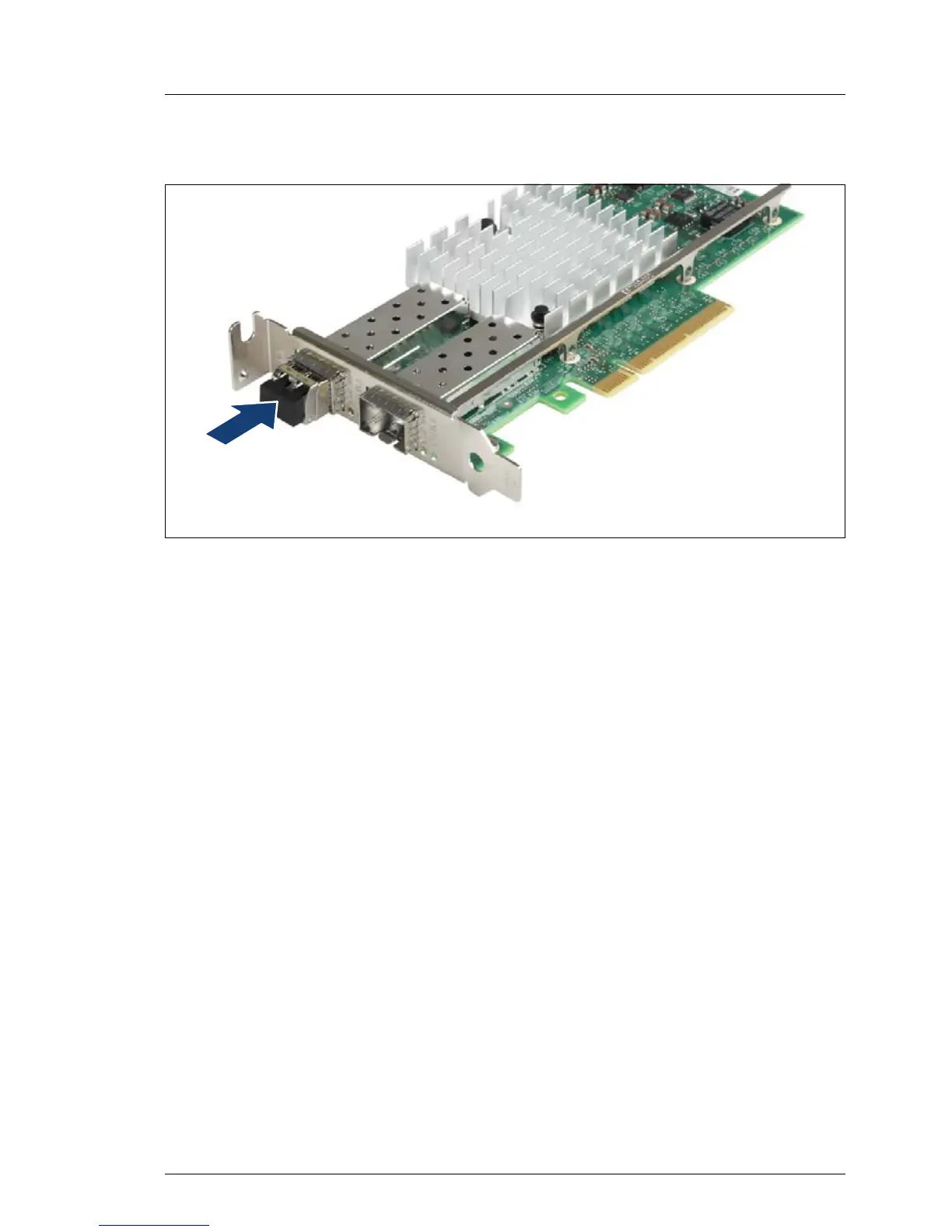

Figure 126: Attaching the protective optical port plug
Ê If the SFP+ transceiver module is not immediately connected to an LC
connector, attach the protective optical port plug to the transceiver optical
bores.
