Before you start
TPM bit insert
Dedicated TPM
screw driver /
TPM module
fixing tool (for the
Japanese market)
0.4 Nm
TPM screw
One way
head
(black)
REM 3 x 15 mm
(black)
C26192-Y10-
C176
Phillips
PH0 / (+) No. 0
0.06 Nm
UFM nylon
screw
M3 x 4.5 mm
(white)
A3C40109082
Phillips
PH2 / (+) No. 2
hexagonal cross
SW5 / PZ2
0.4 Nm
Slot bracket
to controller
board
M3 x 3.5 mm
C26192-Y10-
C151
Cross
0.2 Nm
ODD latch
(delivered
with the
accessory
pack)
M2 x 5 mm
(silver)
C26192-Y10-C63
Cylinder head
Torx Plus 6
0.2 Nm
ODD latch
(used by
factory
mounting)
M2 x 4 mm
(black)
C26192-Y10-
C166
Screw driver /
Bit insert /
torque

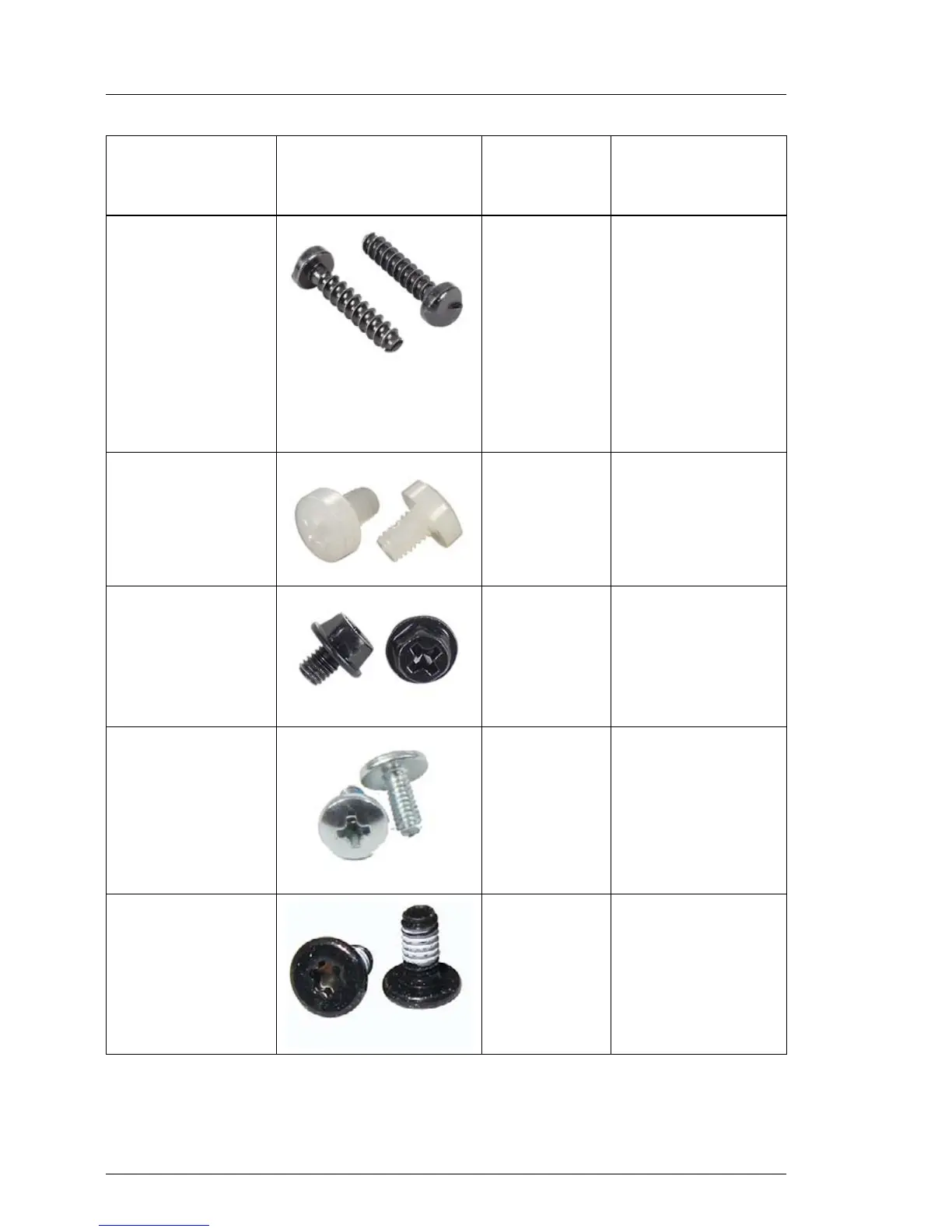

Screw Usage Type
Table 2: List of required tools and used screws
