RX300 S8
Upgrade and Maintenance Manual 379
Front panel and external connectors

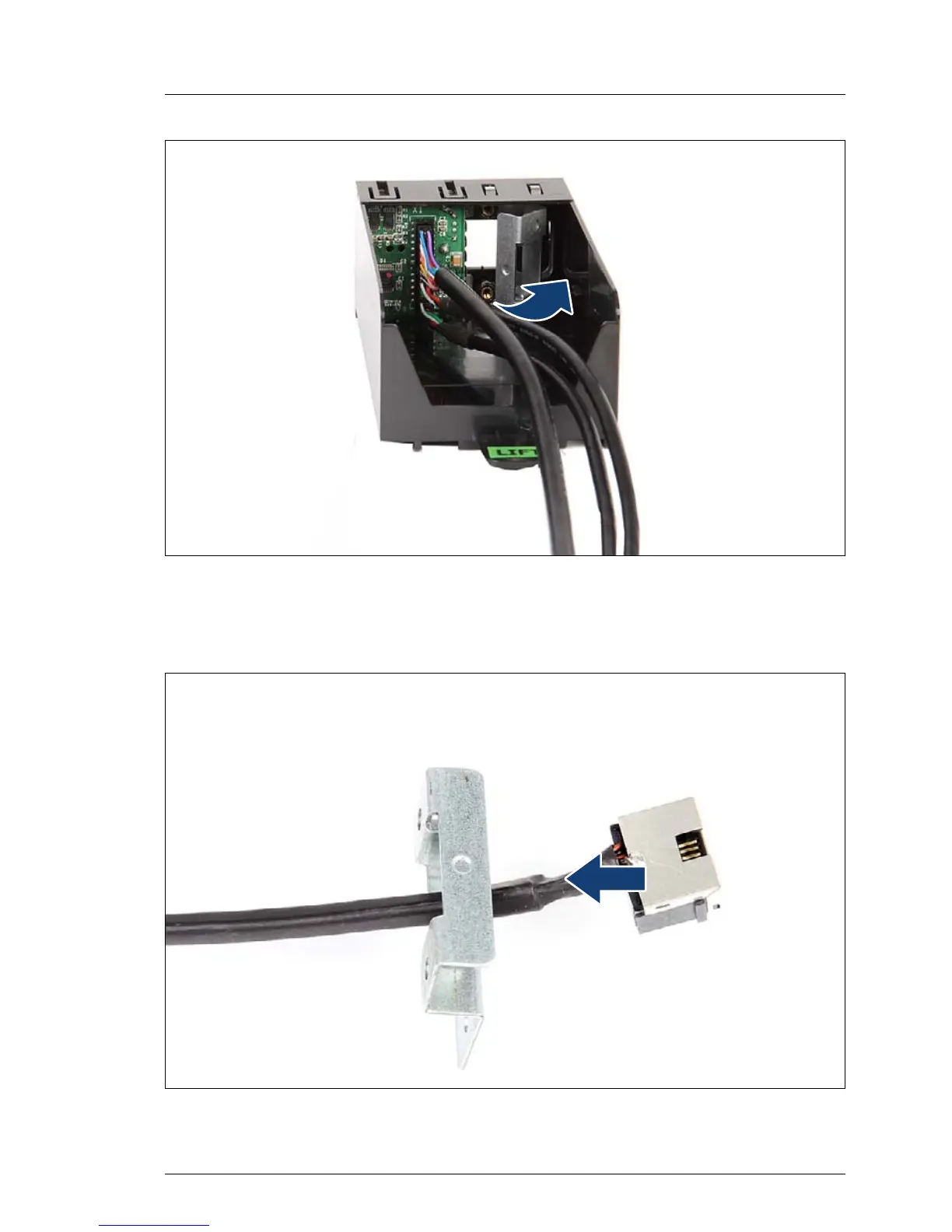

Figure 244: Removing the mounting bracket
Ê Remove the mounting bracket. Turn the mounting bracket so that the ESD
contact springs are not damaged.
Figure 245: Mounting the front LAN connector
