380 Upgrade and Maintenance Manual
RX300 S8
Front panel and external connectors
Ê Run the front LAN cable through the mounting bracket.
Ê Carefully snap the front LAN cable connector into the mounting bracket.

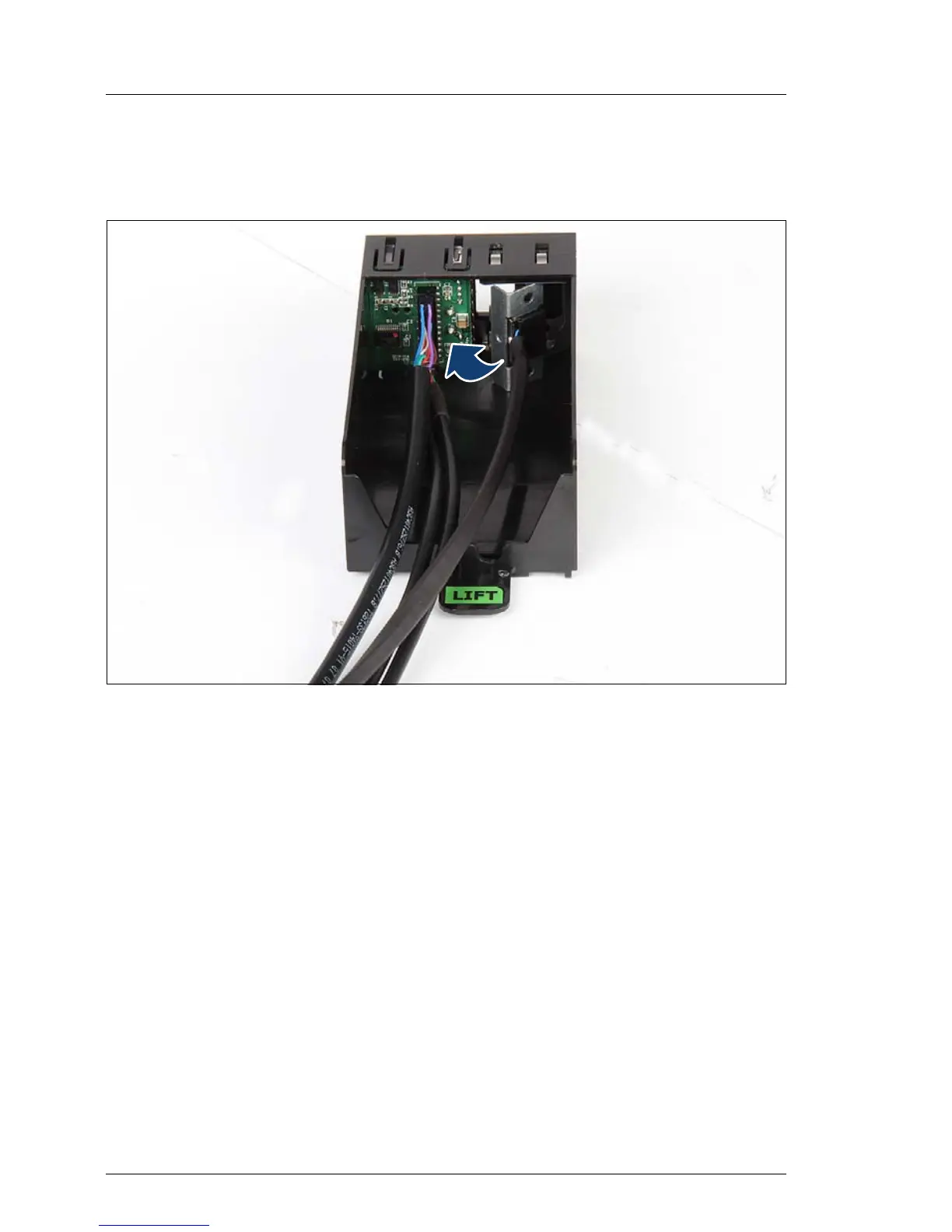

Figure 246: Mounting the front LAN connector
Ê Insert the mounting bracket. Carefully turn the mounting bracket into place.
Ê Carefully snap the mounting bracket into the front of the front panel module.
