RX300 S8
Upgrade and Maintenance Manual 389
Front panel and external connectors

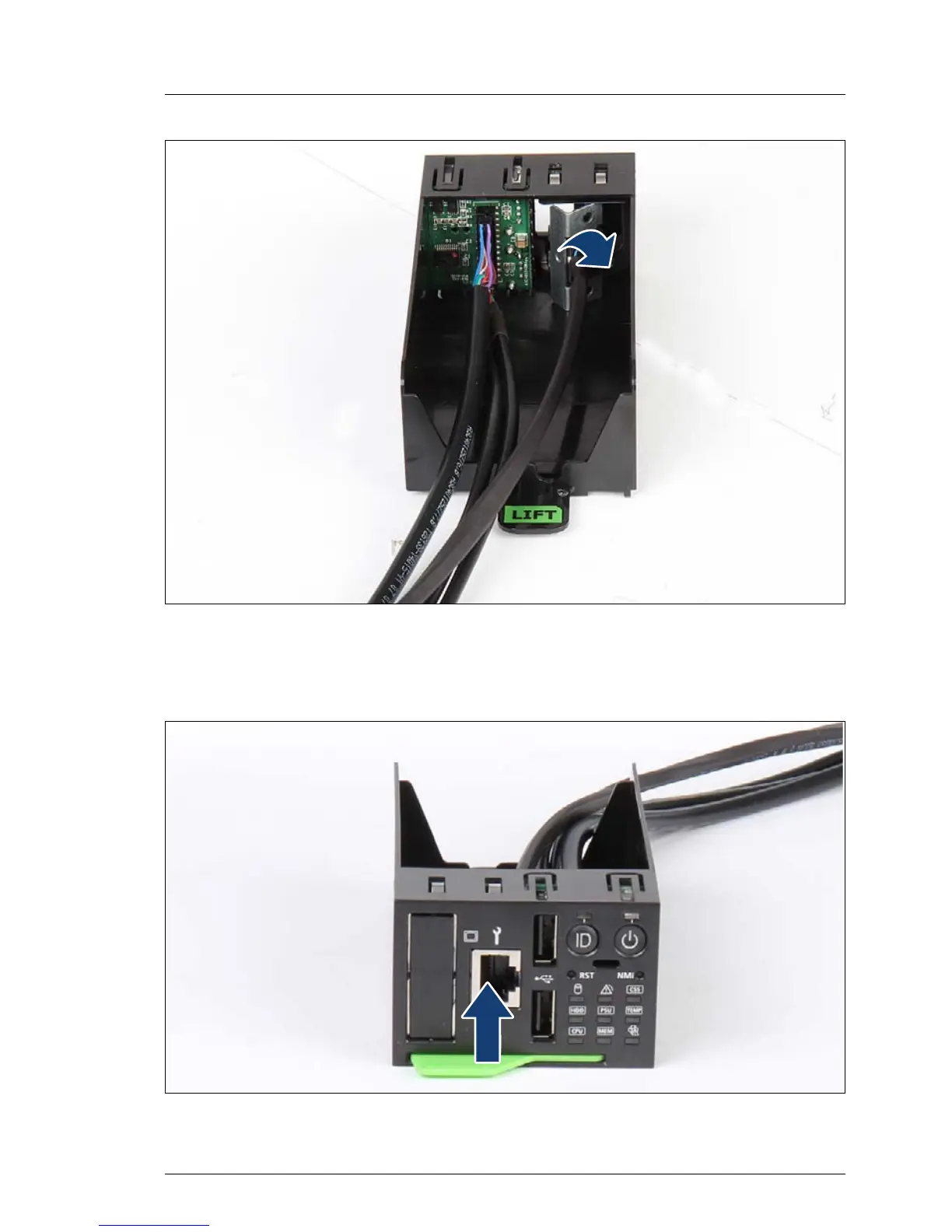

Figure 254: Mounting the front LAN connector
Ê Remove the mounting bracket. Turn the mounting bracket so that the ESD
contact springs are not damaged.
Figure 255: Removing the front LAN connector from the front panel module
