390 Upgrade and Maintenance Manual
RX300 S8
Front panel and external connectors
Ê Remove the front LAN connector carefully. Do not damage the ESD contact
springs of the mounting bracket.

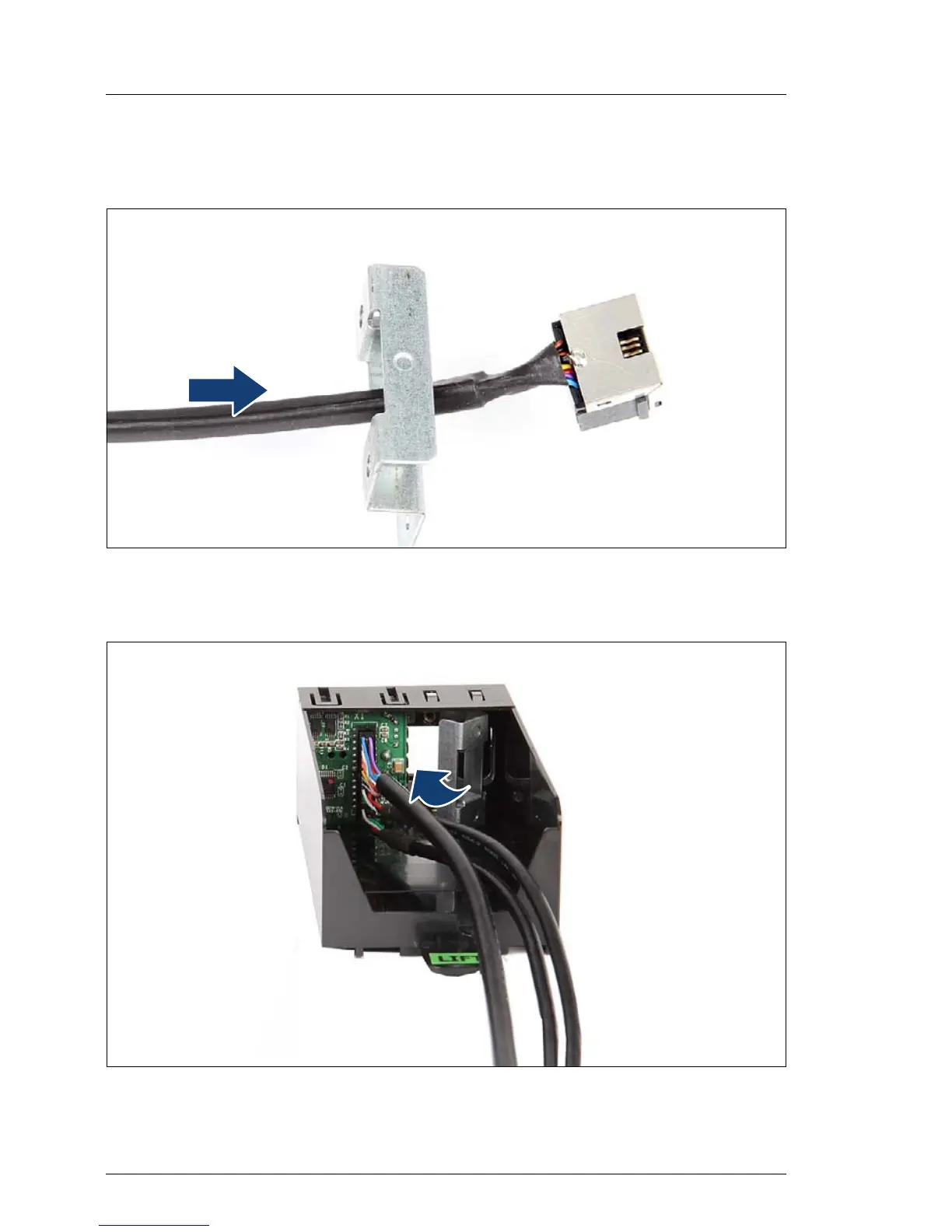

Figure 256: Removing the front LAN cable
Ê Remove the front LAN cable from the mounting bracket.
Figure 257: Mounting mounting bracket
