RX300 S8
Upgrade and Maintenance Manual
415
System board and comp
onents

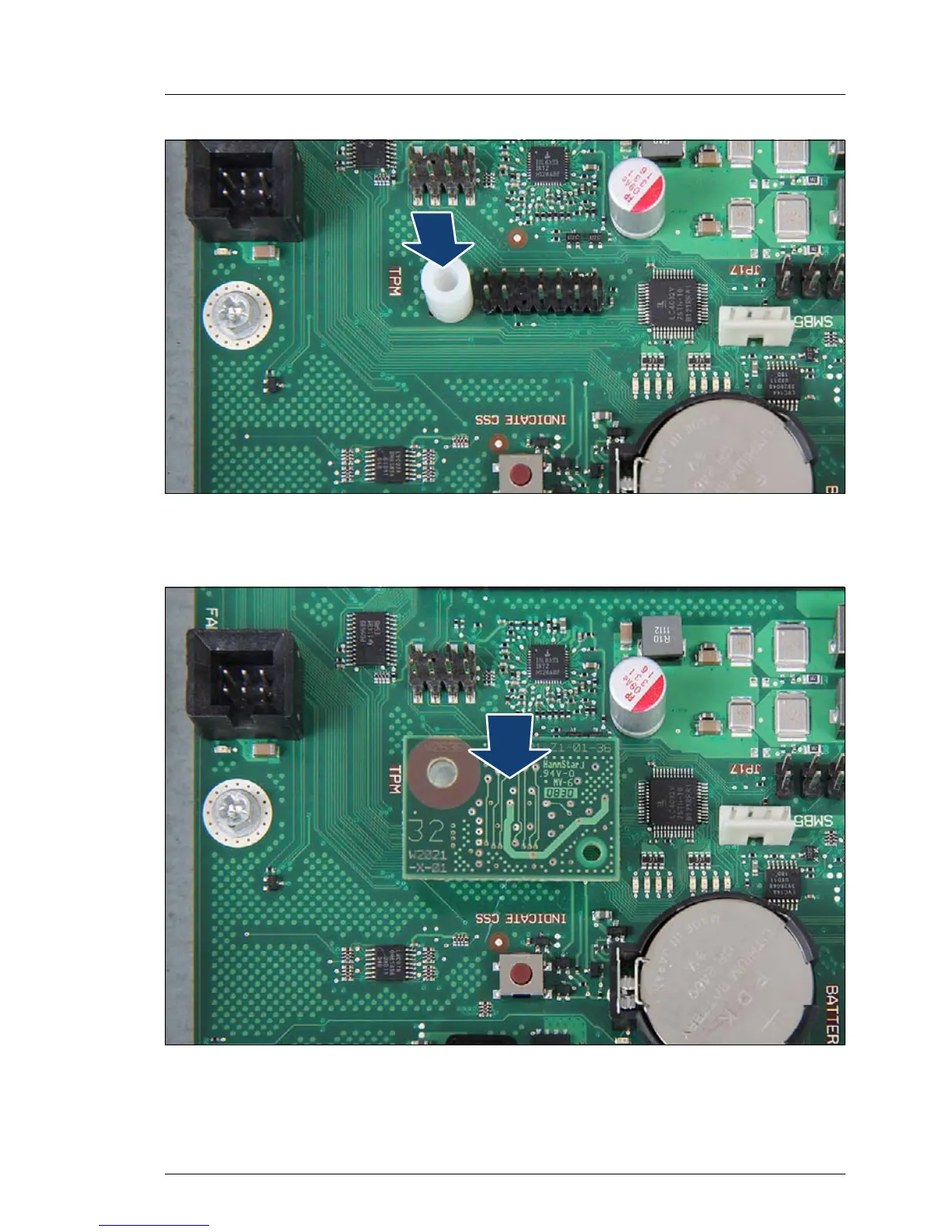

Figure 275:
Installing the TPM s
pacer
Ê
Snap the TPM spacer into the cut-out in the system board.
Figure 276: Installing t
he TPM
Ê
Connec
t the new TPM to the system board.
