416 Upgrade and Maintenance Manual
RX300 S8
System board and components

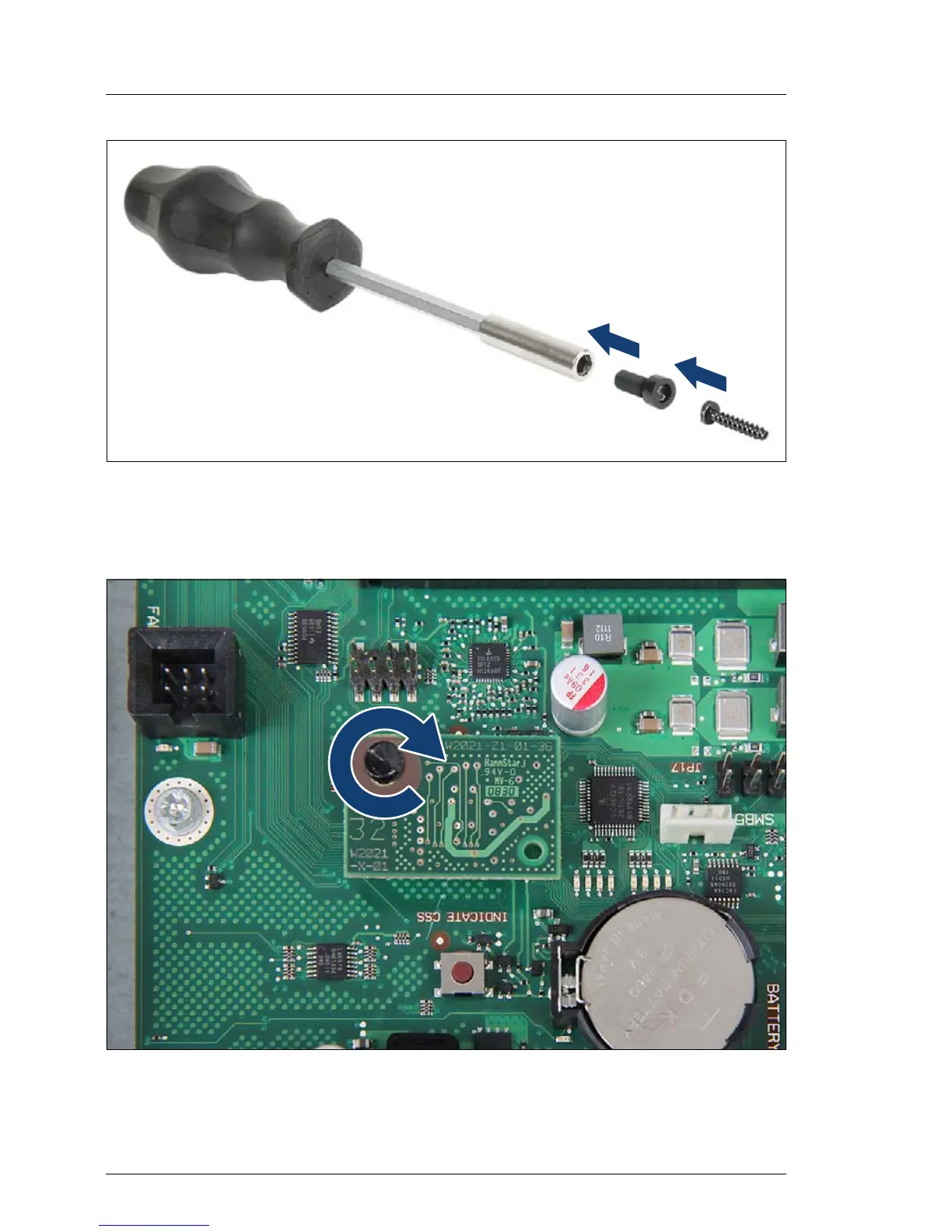

Figure 277: TPM bit insert
Ê Attach the TPM bit insert or TPM module fixing tool (Japanese market) to a
bit screw driver.
Figure 278: Securing the TPM
Ê Secure the TPM with the TPM screw using the TPM bit insert.
