452 Upgrade and Maintenance Manual
RX300 S8
Conversion configurations

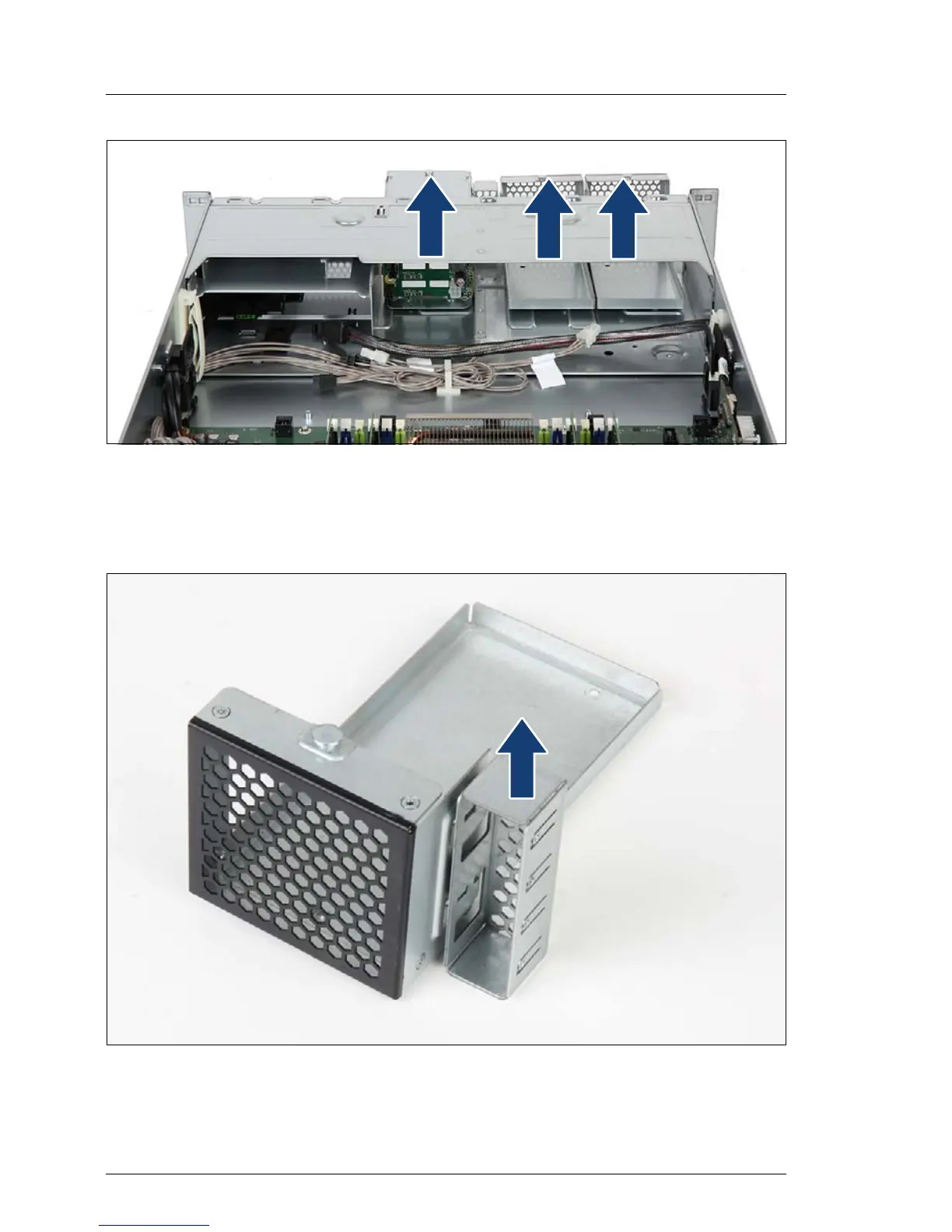

Figure 303: Removing the HDD cage and 2.5-inch dummy cages
Ê Remove all cables from the HDD cage backplane.
Ê Remove the HDD cage and the dummy cages from bay 1 and 2.
Figure 304: Removing the cover plate from the 2.5-inch dummy cage
Ê Remove the cover plate from the dummy cage.
