RX300 S8
Upgrade and Maintenance Manual 453
Conversion configurations

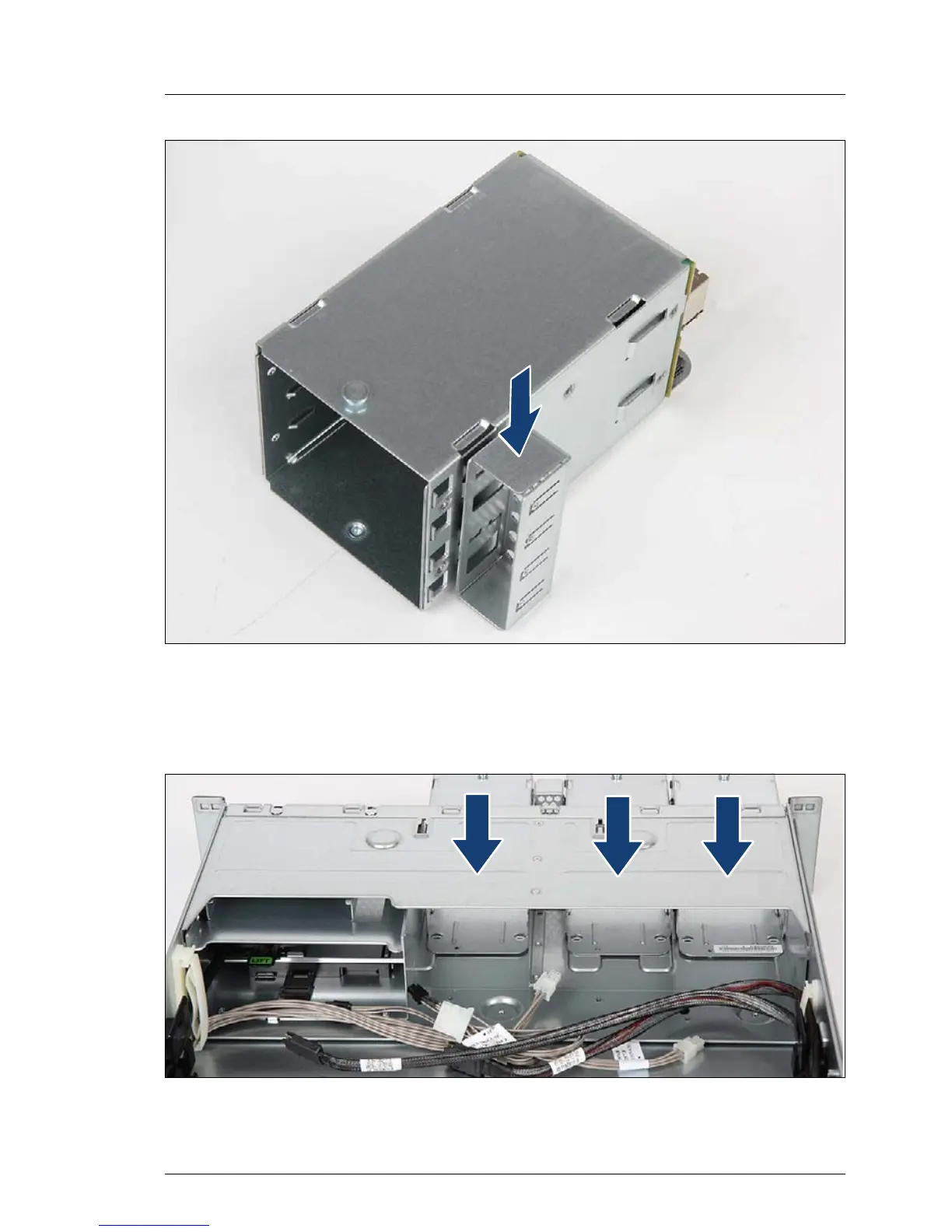

Figure 305: Installing the cover plate to a HDD cage.
Ê Insert the cover plate to one of the HDD cages.
Ê "Removing the 4x 2.5-inch SAS HDD backplane" on page 150
Figure 306: Installing the HDD cages
