Overview
Hardware Overview

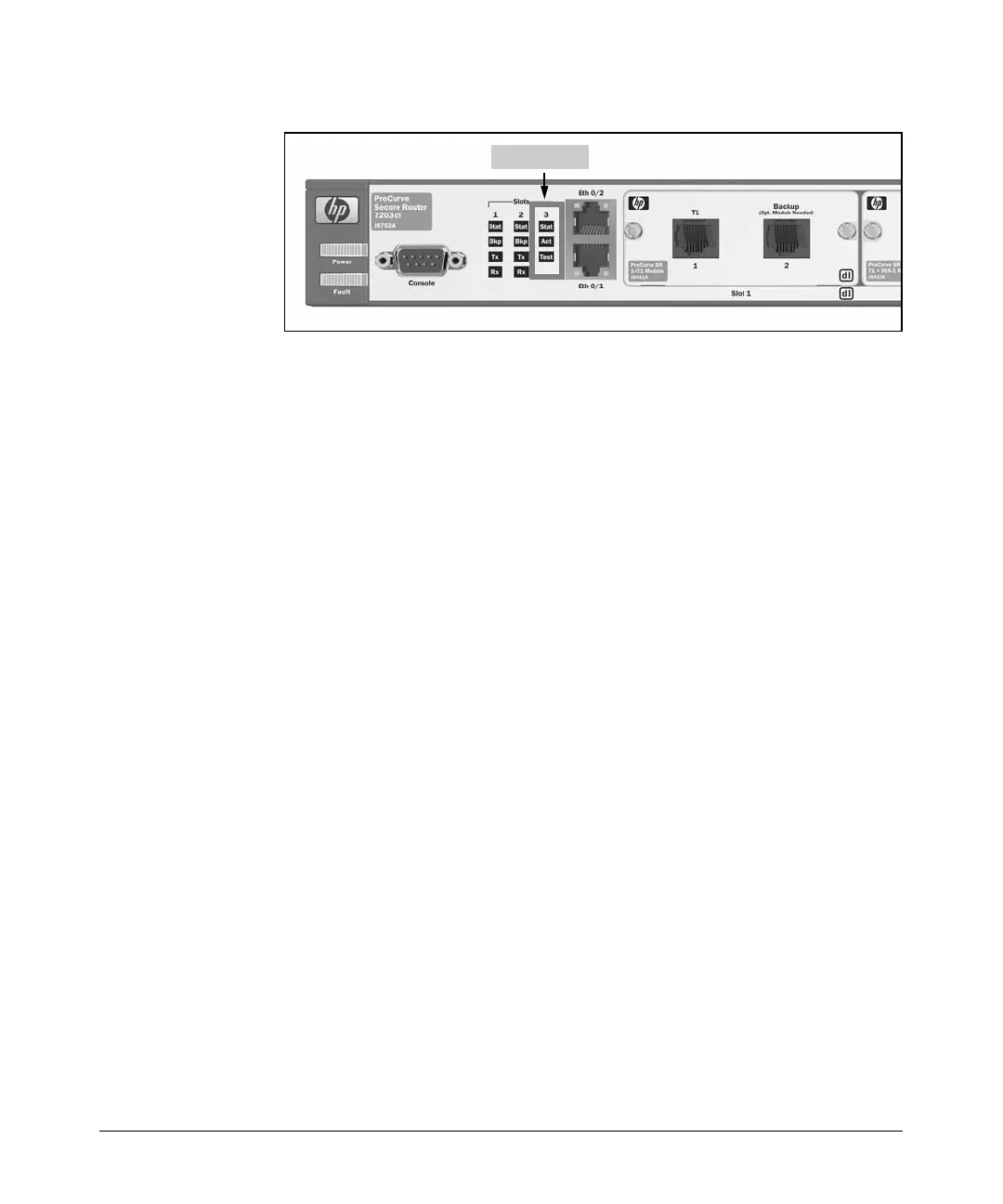

Figure 1-18. On the ProCurve Secure Router 7203dl, the Third Column LEDs Report
on the Wide Module.
Status LED
The first LED reports on the status of the wide module, indicating whether the
wide module is installed and functional.
■ No light—The module has not been installed, or none of the interface
ports have been activated.
■ Green—The module has been installed and recognized, and at least one
interface is up.
■ Red—There is an active alarm condition on one of the interfaces.
Activity LED
The second LED reports activity across the WAN links established through
the wide module. The LED flashes green to signal activity.
Test LED
The third LED glows solid yellow if one of the interfaces on the module is in
test mode.
Ethernet and Activity LEDs
The Ethernet interfaces also have LEDs that report on their status and activity.
(See Figure 1-19.)
Slot 3 LEDs
