14-50
Using the Web Browser Interface for Basic Configuration Tasks
Configuring Ethernet Interfaces
Configuring PPPoE for the Ethernet Interface
To configure PPPoE, complete the following steps:
1. Access the Configuration for Ethernet window, select PPPoE for the
Interface Mode, and click Apply. The PPPoE Configuration for “ppp
<interface number>” window is displayed.
2. Enter a description if you need to document information about PPPoE
settings. This information will be displayed in the running-config under
the appropriate PPP interface heading.
3. Click the Enabled box to activate the PPP interface.
4. For most environments, accept the default setting of 1500 for the MTU.
The ProCurve Secure Router OS will negotiate an MTU of 1492 with the
PPP peer. If the two peers fail to negotiate an MTU of 1492, you may need
to set the MTU manually.
5. Select Default Peer Address if you want to configure the IP address of the
PPP peer.

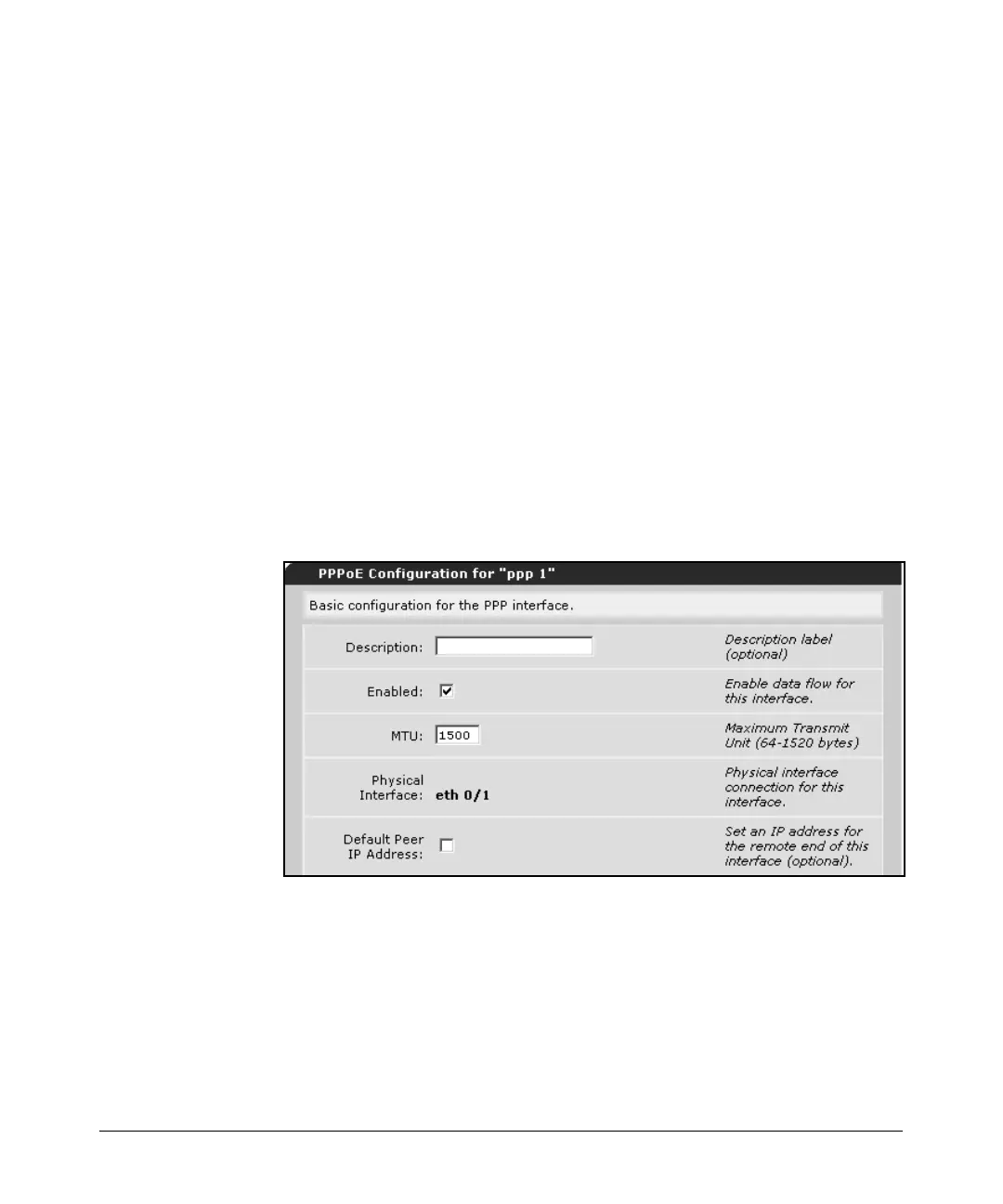

Figure 14-36. PPPoE for the Ethernet Interface
6. If you want to configure PPP authentication, see “PPP Authentication” on
page 14-65.
7. Configure IP settings. For Address Type select one of the following.
• None—Select this setting if you intend to set up a bridge group with
the PPP interface.
