14-64
Using the Web Browser Interface for Basic Configuration Tasks
Configuring the Data Link Layer Protocol for E1, T1, and Serial Interfaces
IP Settings
9. For Address Type select one of the following.
• None—Select this setting if you intend to set up a bridge group with
the PPP interface.
•Static—Select this setting if you want to configure a static IP address.
The boxes to enter the IP address and subnet mask are displayed, so
that you can enter the appropriate address for the PPP interface.
• Unnumbered—To set up the PPP interface with the same IP address
as another interface, click the Unnumbered option. The Interface box
is displayed.
Use the pull-down menu for the Interface box to select the appropri-
ate interface. The menu will display any ATM subinterfaces, Frame-
Relay subinterfaces, HDLC interfaces, loopback interfaces, and PPP
interfaces that are already configured.
• Negotiated—Select this setting if you want the PPP interface to
negotiate an IP address from your service provider. Select Default
Route if you want to configure the interface to receive a default
gateway from the peer.

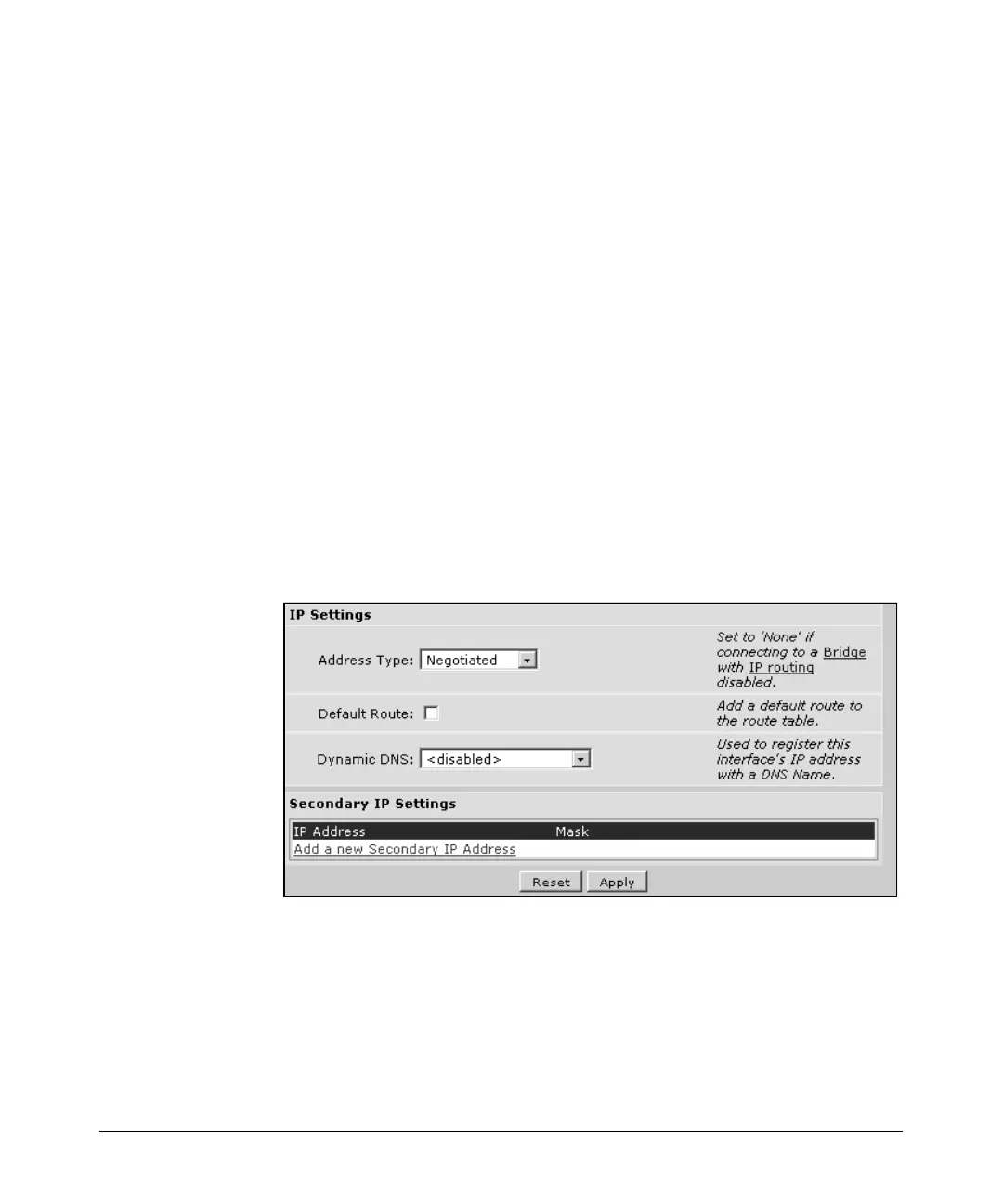

Figure 14-45. IP Settings
