14-49
Using the Web Browser Interface for Basic Configuration Tasks
Configuring Ethernet Interfaces
Releasing/Renewing a DCHP IP Address
If the Ethernet interface receives its IP address from a DHCP server, the first
line of the Status for Ethernet section reports the DHCP address state. If the
interface has successfully received an address, this should display “Bound.”
Next to “Bound” are the words Release and Renew highlighted in blue.
11. To release the current IP address, click Release.
12. To receive an IP address, click Renew. When the interface receives an
address, the DHCP field should display “Bound.”
13. To clear the current statistics, click the Clear Statistics button.
14. The information in this section refreshes automatically every 5 seconds.

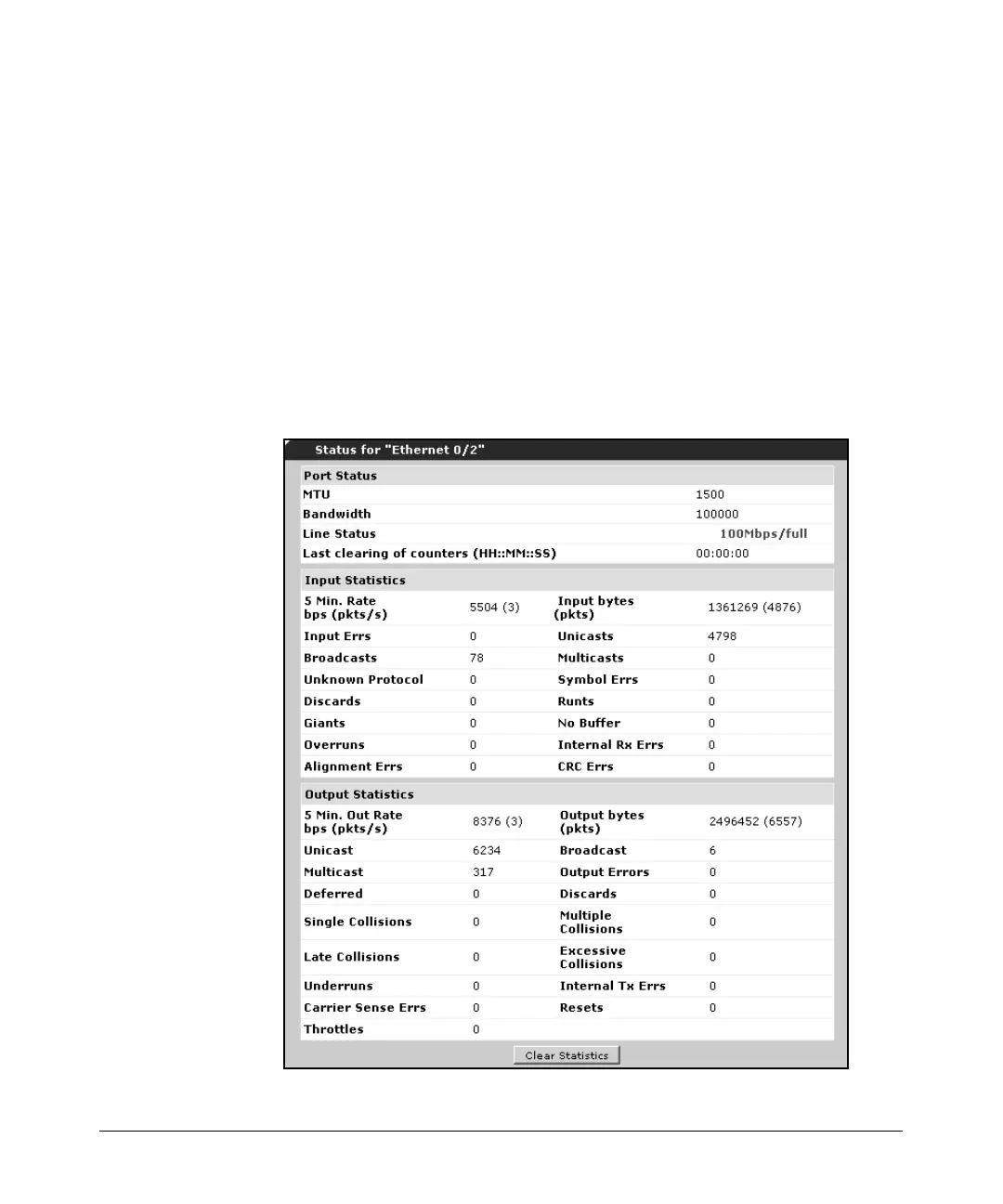

Figure 14-35. Status for Ethernet Interface
