HP ProCurve 7000dl Series User Manual

14-43
Using the Web Browser Interface for Basic Configuration Tasks
Configuring Ethernet Interfaces

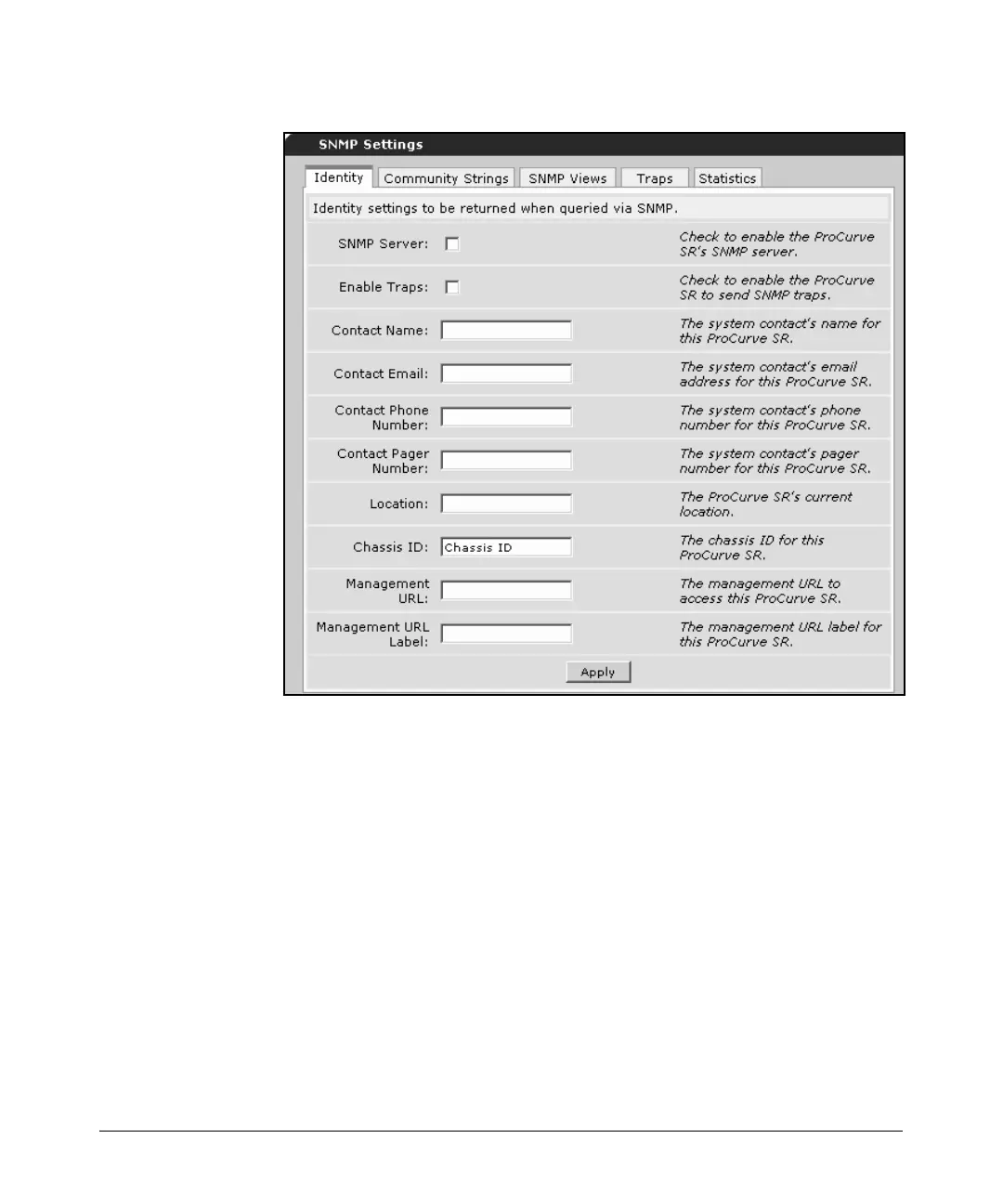

Figure 14-30. SNMP Identity Tab
2. Click SNMP Server to enable the SNMP server.
3. Click Enable Traps to enable SNMP traps.
4. Configure the remaining settings on the screen, which are optional.
5. Click Apply to save your changes.
Configuring SNMP Communities
Use the settings on the Community Strings tab to configure at least one SNMP
community on the ProCurve Secure Router. You should configure the same
community on the SNMP management server, so that you can access SNMP
information and manage the ProCurve Secure Router.
1. Click the Community Strings tab.

HP ProCurve 7000dl Series Specifications

General

Weight	Varies by configuration
Model	HP ProCurve 7000dl Series
Layer	Layer 3
Ports	Varies by configuration
Power Supply	Redundant
Management	CLI, Web, SNMP
Memory	Varies by configuration
Operating Temperature	32°F to 113°F (0°C to 45°C)
Device Type	Switch
