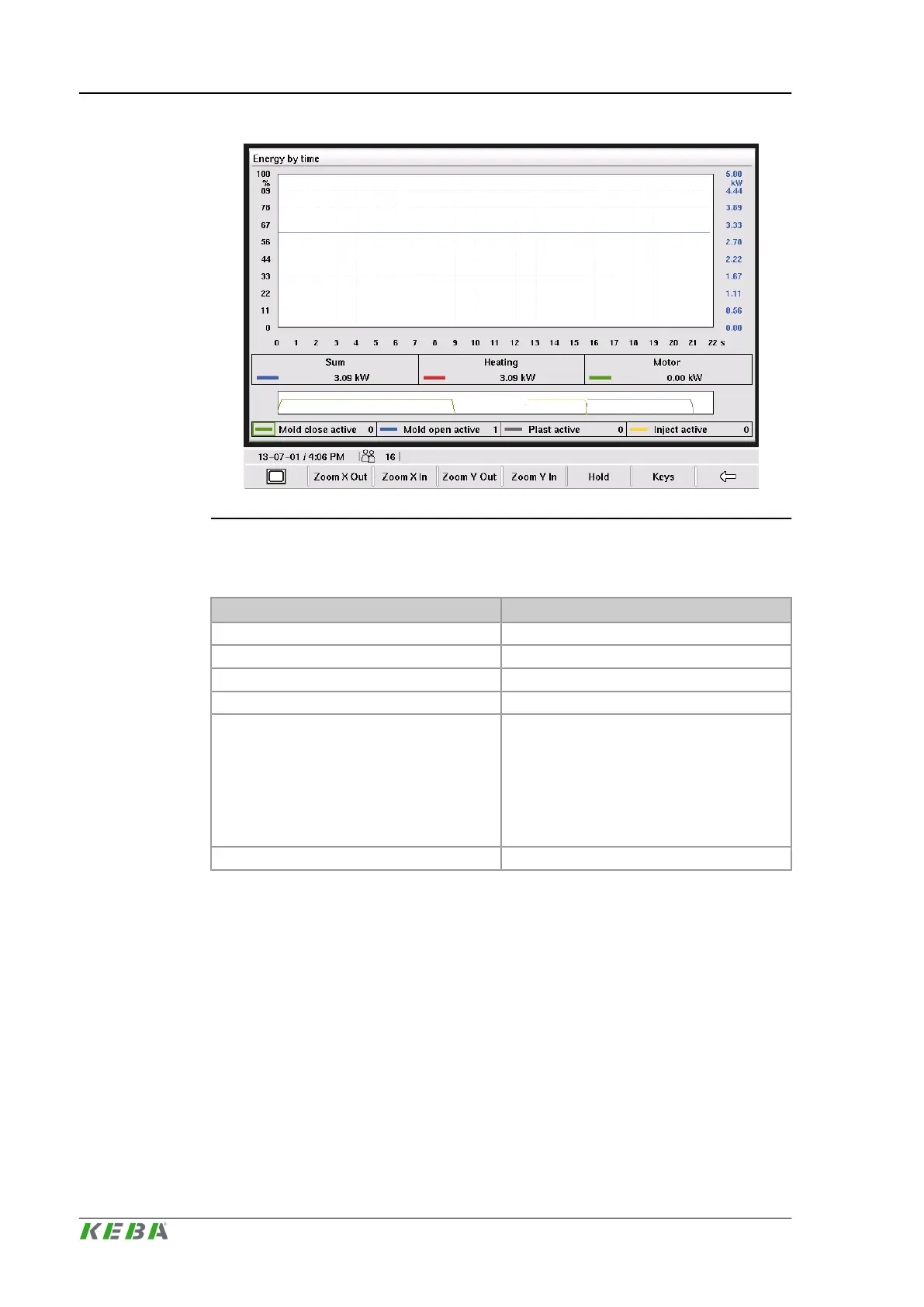

Fig.4-62: Mask "Energy Chart (by time)"
4.58.3 Description of the elements
Field Description
Zoom X Out Zoom out in x- direction.
Zoom X In Zoom in in x- direction.
Zoom Y Out Zoom out in y- direction.
Zoom Y In Zoom in in y- direction.
Hold / Run
Stops and starts the graphic recording.
A vertical red cursor is displayed which is used
for navigation inside the diagram by pressing
left and right cursor buttons of the operating
panel. Thus it is possible to navigate to each
point of the machine cycle in order to read out
the actual energy values.
Keys Fades- in and fades- out the legend.
4.59 Flex IO Mask
4.59.1 Purpose
The settings for programmable digital outputs can be made on this mask. For
each output, 'ON' and 'OFF' conditions can be defined. These condintions are
defined depending on a system variable.
4.59.2 Description of the mask
There are 4 digital outputs displayed in one mask
Description of the operating masks
KePlast.HMI.KVB
© KEBA 2016
User's manual V3.05140
