4.17 Ejector - Tab Graphic
4.17.1 Purpose
This mask shows the pressure and velocity profile of the ejector movement
graphically.
4.17.2 Description of the mask
The upper section of the mask displays the ejector forward profile and the lower
section of the mask the ejector backward profile. Arrows on top of the graphics
display the direction of the profile. A red line in the graphics displays the actual
position of the movement.
Further ramp settings for the respective movement can be set. Depending on
the configured ramp setting the corresponding ramp duration for the movement
is calculated.

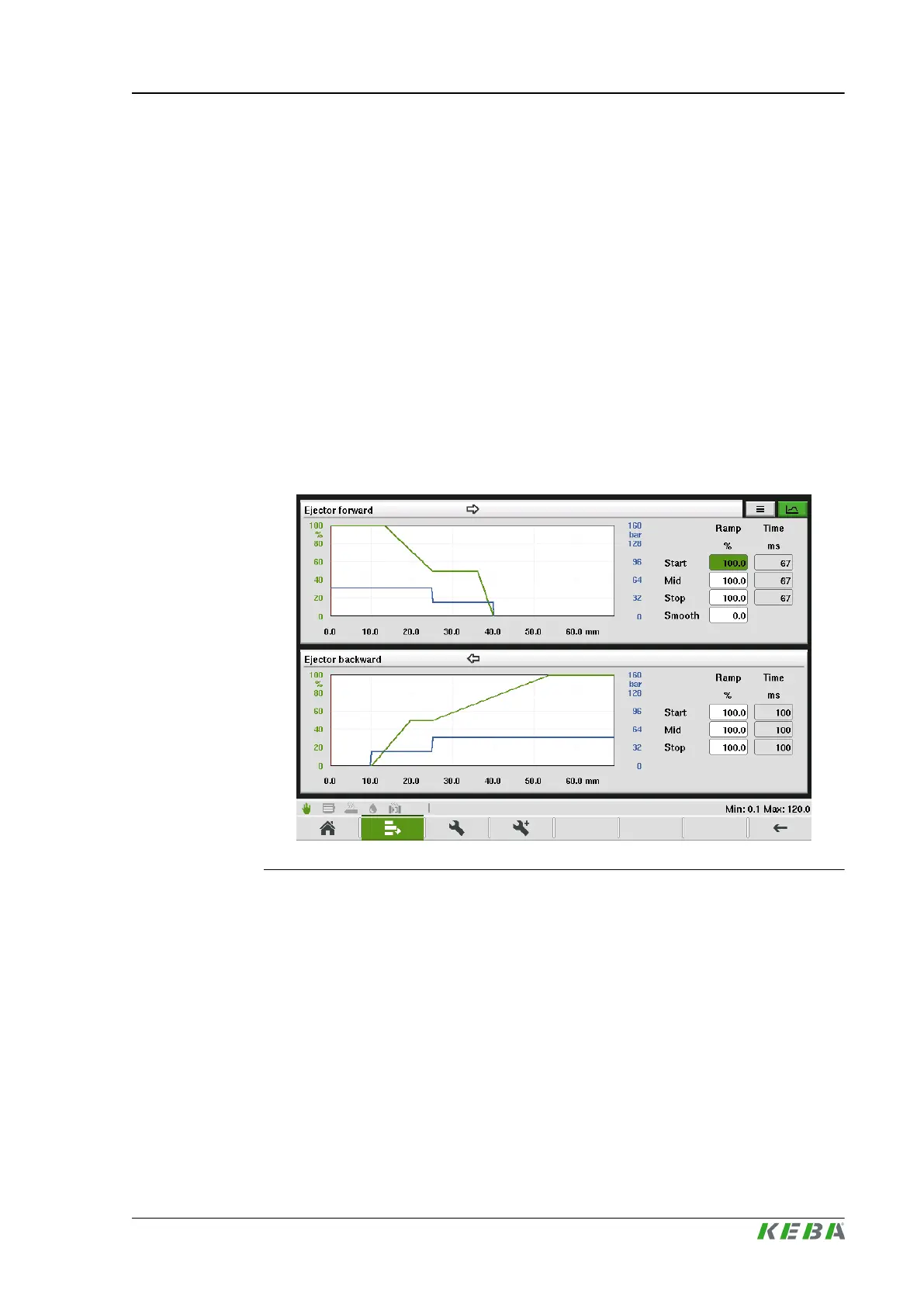

Fig.4-20: Mask "Ejector profile graphic"
KePlast.HMI.KVB Description of the operating masks
© KEBA 2016
User's manual V3.05 71
