4.70 IO Monitor Temperature Inputs
4.70.1 Purpose
This mask shows the status of the temperature inputs of the controller.
4.70.2 Description of the mask
The values of all temperature inputs are displayed. Further it is possible to force
a temperature input.
If an IO is physically available but no variable is allocated to the IO, only the
IO- number is displayed. However it is possible to force the IO.
If an IO is physically available and allocated to a variable but no text is assigned
to the variable, the name of the system variable is displayed.

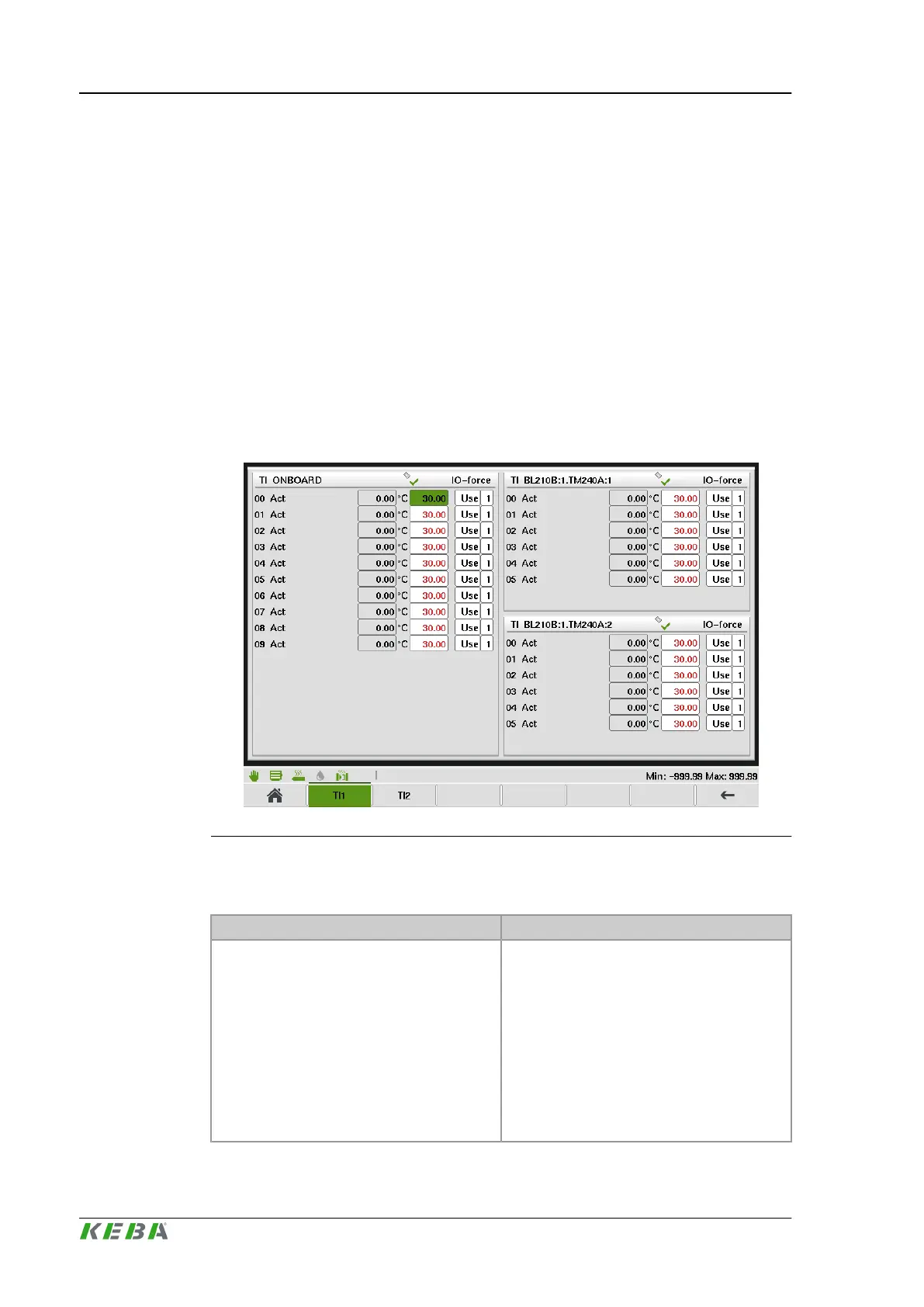

Fig.4-74: Mask 'IO Monitor Temperature Inputs'
4.70.3 Description of the elements
Field Description
TI 0...n
The descirption of the temperature input is dis-
played.
The left grey field indicates the current value of
the temperature input [°C]. The value "- - -"
represents a sensor error.
The input field in the middle configures the val-
ue the temperature input is forced to. If a force
is acitve, the value is represented in red color.
The right input field activates the force of the
temperature input.
