4.66 IO Monitor Digital Inputs
4.66.1 Purpose
This mask shows the values of the digital inputs of the controller.
Information
The IO Monitor masks for the digital inputs of the panel (PI1, PI2 and PI Ext)
are working the same way.
4.66.2 Description of the mask
The state of all digital inputs is displayed. Further it is possible to force a digital
input.
If an IO is physically available but no variable is allocated to the IO, only the
IO- number is displayed. However it is possible to force the IO.
If an IO is physically available and allocated to a variable but no text is assigned
to the variable, the name of the system variable is displayed.

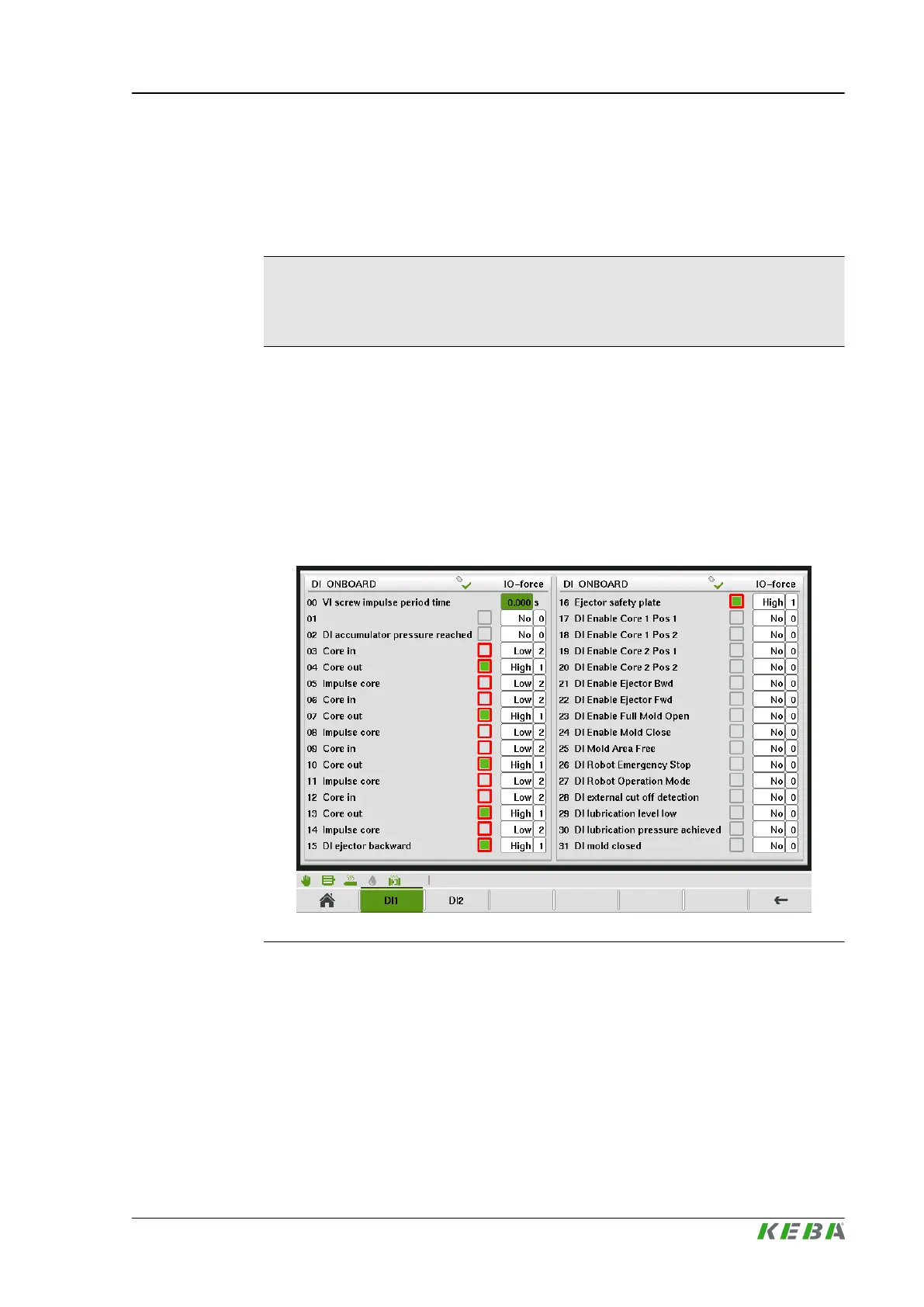

Fig.4-70: Mask 'IO Monitor Digital Inputs'
KePlast.HMI.KVB
Description of the operating masks
© KEBA 2016
User's manual V3.05 151
