Servo valve inject
Field Description
Valve direction screw for-
ward with P-B
Depending on the servo hydraulic system the inject process is
done either with the AP or the BP orifice of the valve. This means
that the screw possibly moves in the wrong direction during inject.
To check the movement direction of the inject unit switch to setup
mode and press the inject button. If the screw is moving forward
(to inject direction) the actual value of the input field is ok, other-
wise change the value.
Minimum valve voltage
Minimum voltage of the servo valve that is used for the identifica-
tion of the servo valve's flow characteristic.
Maximum valve voltage
Maximum voltage of the servo valve that is used for the identifi-
cation of the servo valve's flow characteristic.
4.97 Pump selection
4.97.1 Purpose
This mask allows to change the pump selection for specific movements.
4.97.2 Description of the mask
This mask is divided into 2 sections with a list of all movements and their cor-
responding pump assignments for up to 3 pumps.

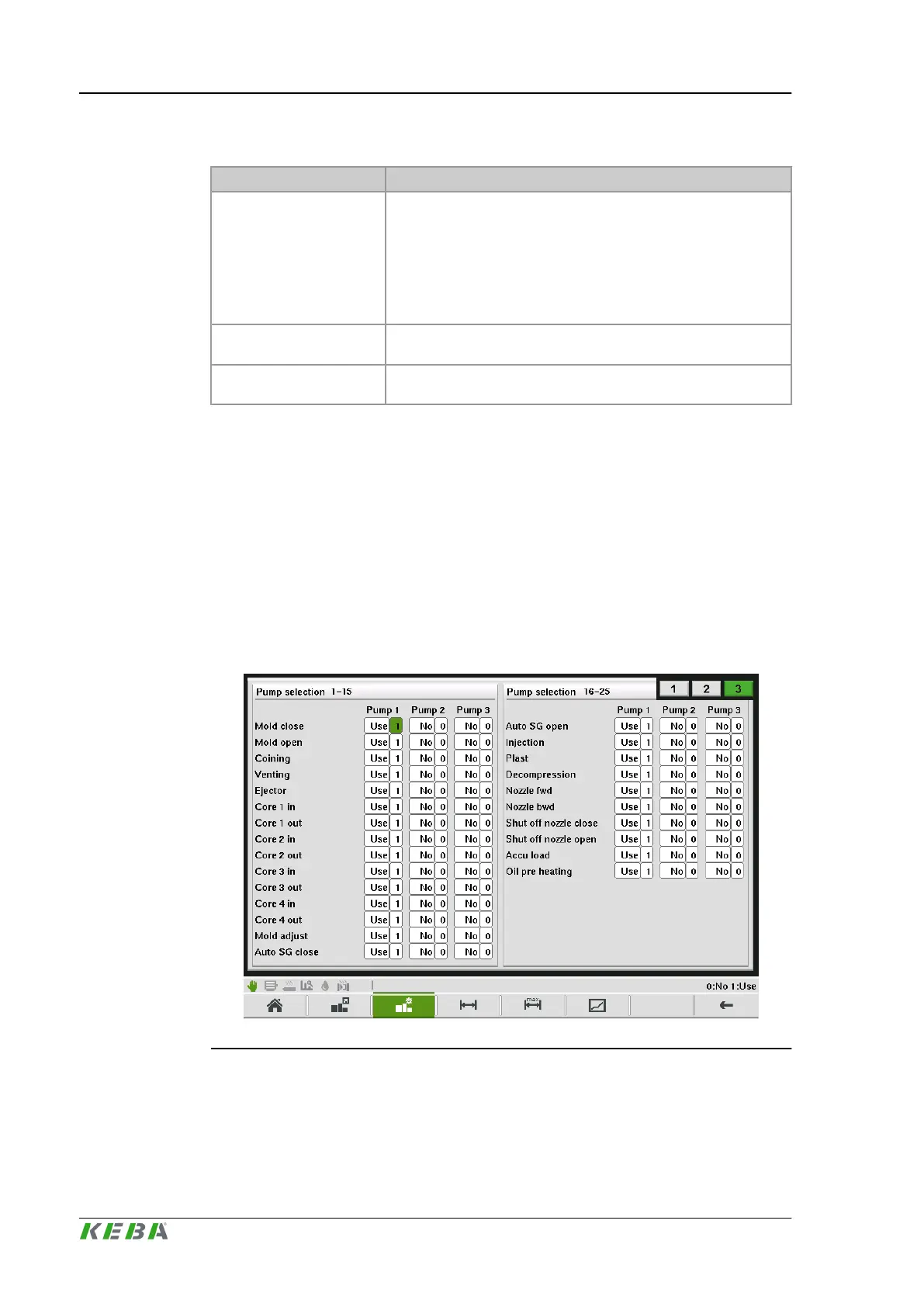

Fig.4-103: Mask "Pump selection''
Description of the operating masks
KePlast.HMI.KVB
© KEBA 2016
User's manual V3.05196
