4.26.2 Description of the mask
Pressure and velocity of the injection movement is specified in the upper sec-
tion of the mask. Settings for the cut off detection are specified in the middle
section of the mask. Settings for hold are specified in the lower section of the
mask.

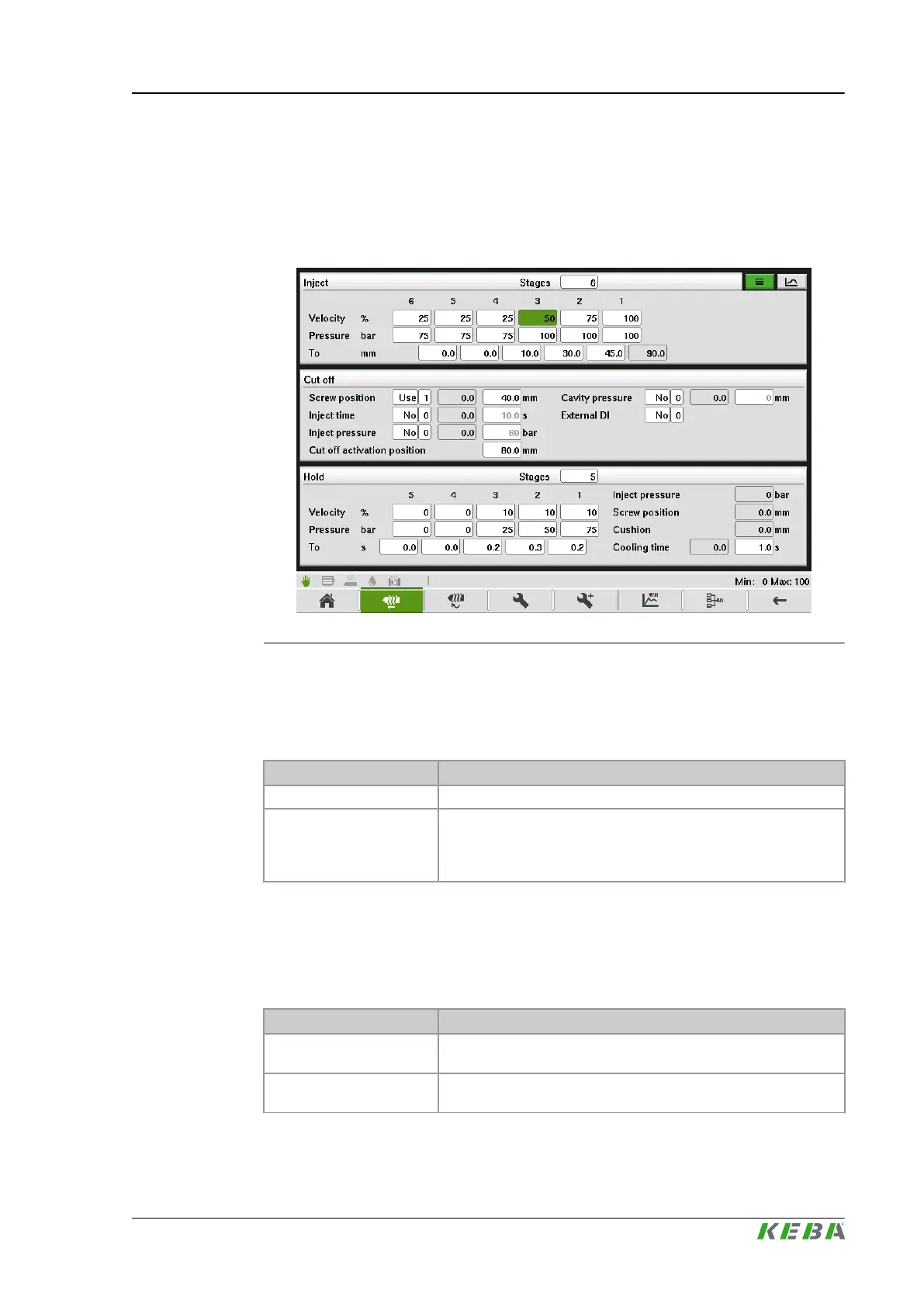

Fig.4-29: Mask "Injection Tab profile"
4.26.3 Description of the elements
Inject
Field Description
Stages Number of adjustable stages
Inject 1..Inject n
Setting of Pressure and Velocity between the end position of the
previous stage (in case of stage 1, screw position "Rear end po-
sition" when plasticizing) and the position specified under to during
injection.
Cut off
The cutt off criterion, at which the system changes from injection to hold pres-
sure, can be adjusted in this section. When selecting more than one criterion,
the system changes over to hold pressure as soon as one condition is met.
Field Description
Screw position
Specification of the screw position at which the system changes
to hold pressure.
Inject time
Specification of the duration, measured from the start of the injec-
tion process until the system changes to hold pressure.
