4.9.2 Description of the mask
The mask is devided into a part for mold tuning, valve control, mold position
control and force control.

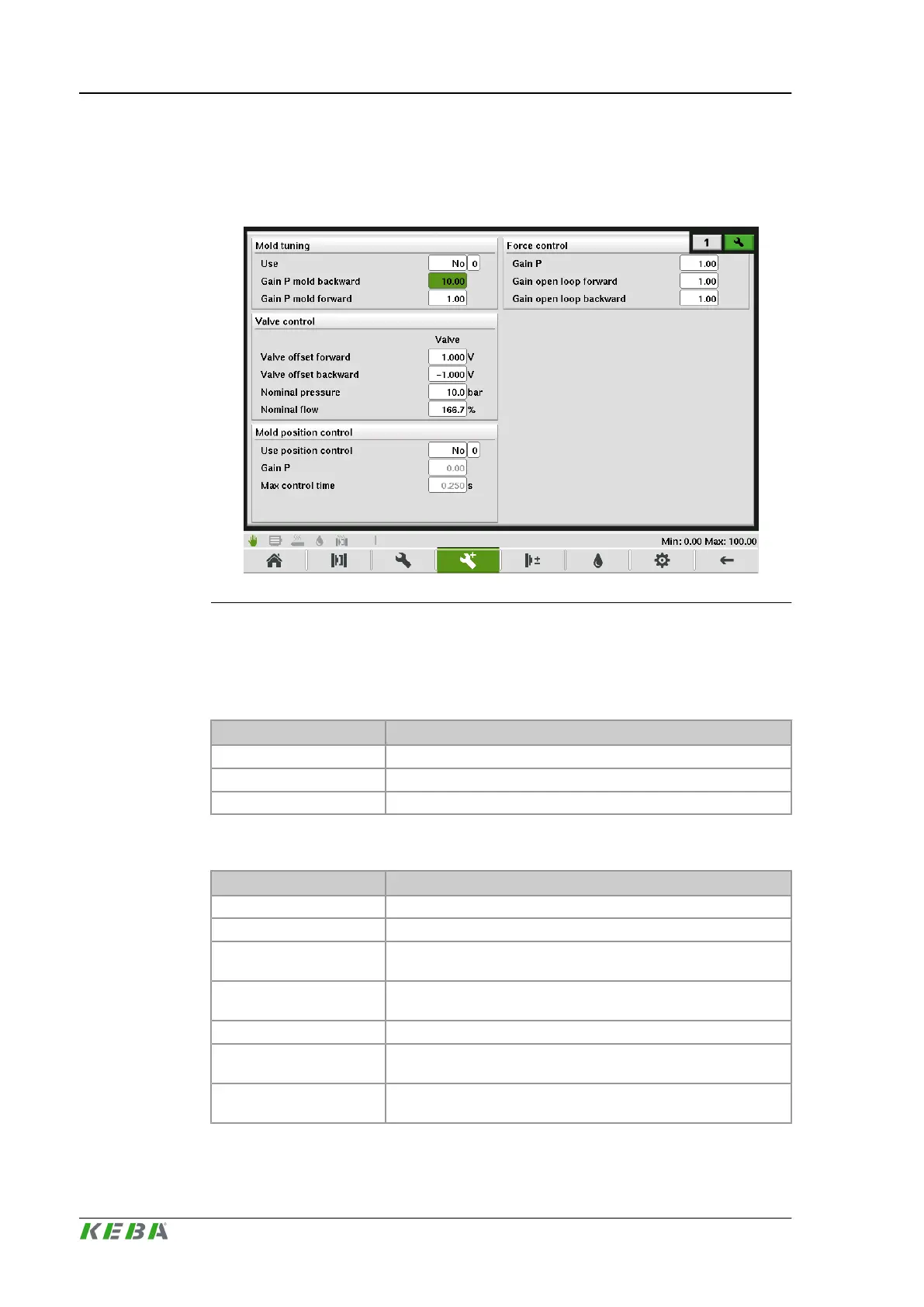

Fig.4-11: Mask "Mold setup advanced tab mold control"
4.9.3 Description of the elements
Mold tuning
Field Description
Use Enable / disable mold tuning.
Gain P mold backward Proportional gain for position error during mold open.
Gain P mold forward Proportional gain for position error during mold close.
Valve control
Field Description
Valve offset forward Necessary voltage on servovalve to start mold close movement
Valve offset backward Necessary voltage on servovalve to start mold open movement
Nominal pressure
Pressure difference on valve at the nominal flow. This value can
be found in the datasheet of the servo valve.
Nominal flow
Nominal flow of used servovalve. This value can be found in the
datasheet of the servo valve.
Valve offset backward Necessary voltage on servovalve to start mold open movement
Nominal pressure
Pressure difference on valve at the nominal flow. This value can
be found in the datasheet of the servo valve.
Nominal flow
Nominal flow of used servovalve. This value can be found in the
datasheet of the servo valve.
Description of the operating masks KePlast.HMI.KVB
© KEBA 2016
User's manual V3.0556
