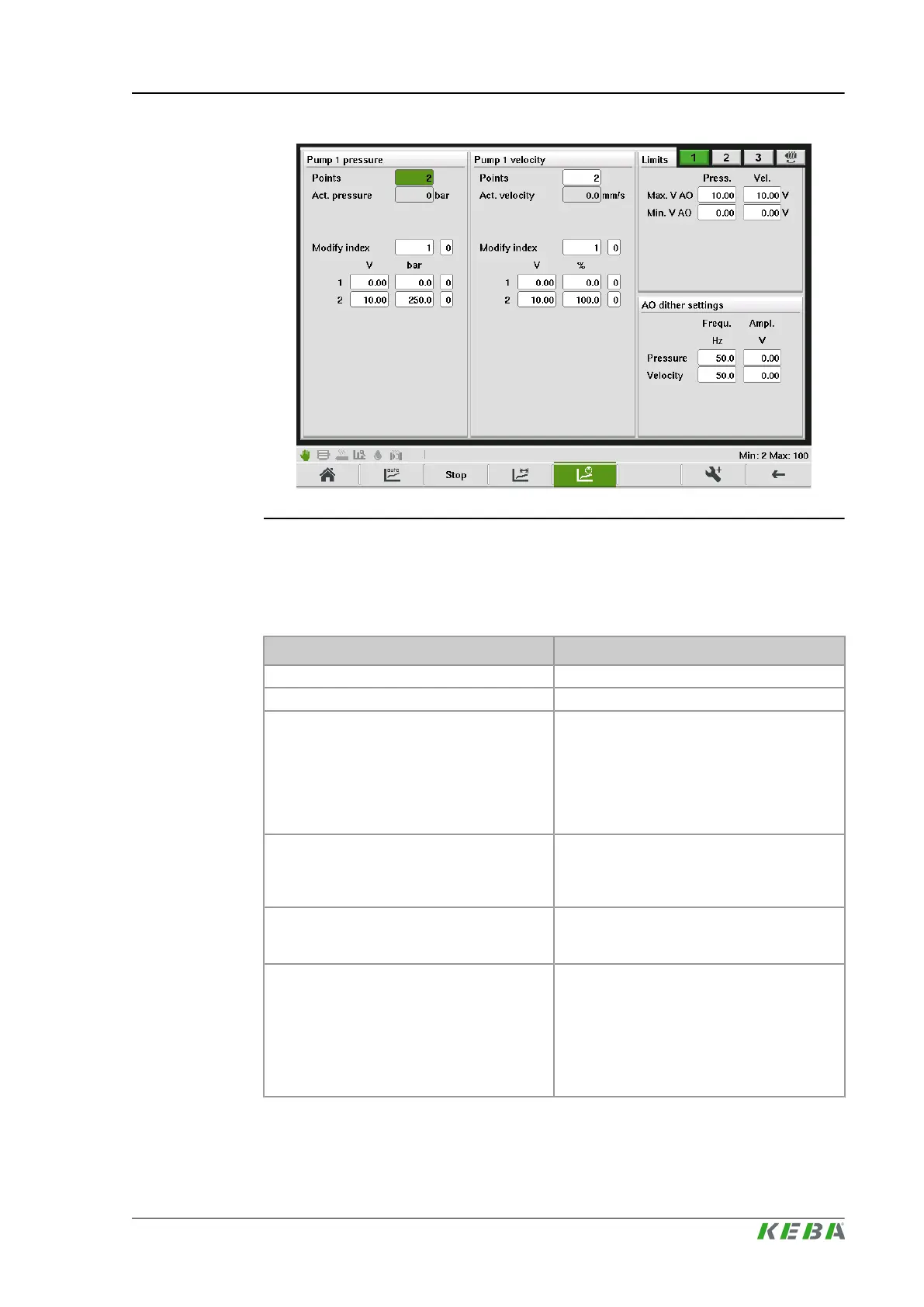

Fig.4-116: Mask ''Calibration pump"
4.110.3 Description of the elements
Pump pressure
Name Description
Points Number of points in the linearization table.
Act. pressure Displays the actual pump pressure.
Start Index
Since only a maximum of 9 linearization points
can be displayed on the mask, this field serves
for navigation purposes. The input value al-
ways corresponds to the index of the element
displayed first. Example: Value 1: linearization
points 1 to 9 are displayed. Value 17: lineari-
zation points 17 to 25 are displayed, etc.
Modify index
Linearization points can be deleted or added.
The configured index defines which lineariza-
tion point gets deleted resp. after which linea-
rization point a new point gets added.
V / bar
Calibration of the pump pressure sensor is
done by entering the pressure [bar] and the
voltage [V] for each linearization point.
Set output voltage
Possibility to force the set-voltage for the ana-
log output for pump pressure. For each linea-
rization point, the forcing of the analog output
voltage can be activated by entering '1'.
The resulting pump pressure is shown in field
'Act. pressure' and can be entered for the cor-
responding linearization point.
KePlast.HMI.KVB Description of the operating masks
© KEBA 2016
User's manual V3.05 215
