Field Description
Number of cylinders The number of cylinders is specified here.
Move forward by ring area
This field must be activated, if the mechanical integration of the
hydraulic cylinder for this movement requires that the movement
'Nozzle forward' is controlled by the ring area of the cylinder.
4.99 Strokes - Tab2
4.99.1 Purpose
This mask is used to set the principal characteristic values (stroke and diam-
eter) for a slide table. It is only displayed if a slide table is available.
4.99.2 Description of the mask
In the section Slide table the according mechanical parameters must be en-
tered:

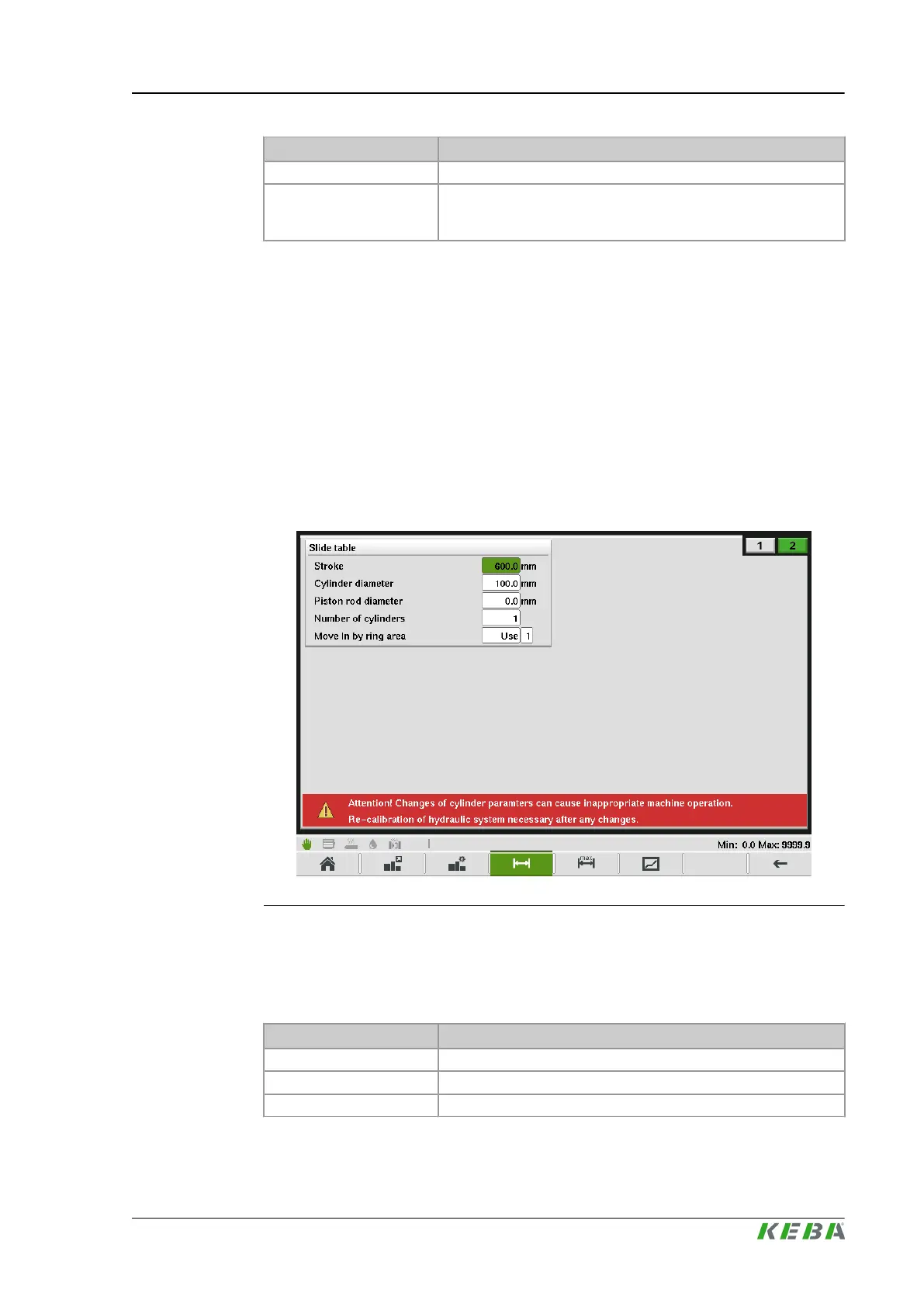

Fig.4-105: Mask "Strokes Tab2"
4.99.3 Description of the elements
Slide table
Field Description
Stroke The maximum stroke of the slide table.
Cylinder diameter The diameter of the cylinder(s) is specified here.
Piston rod diameter The diameter of the piston rod(s) is specified here.
KePlast.HMI.KVB Description of the operating masks
© KEBA 2016
User's manual V3.05 199
