4.88 Scope
4.88.1 Purpose
This mask is used for sampling variable values for diagnose purposes. If a
specific problem on a machine exists, the service personnel can easily retrieve
detailled variable recordings about the internal state of the system for further
offline analysis. For this purpose the user can select from various predefined
sampling configurations depending on the type of the problem (e. g. inject,
mold, ejector or heating) and export the measurements directly on an USB-
stick.
4.88.2 Description of the mask
The mask is divided into the sections Measurement, Settings for saving
measurement data, Export settings, Start settings and Stop settings. Be-
fore activating the sampling with the button Activate, a configuration has to be
selected and loaded via the Select dialog.

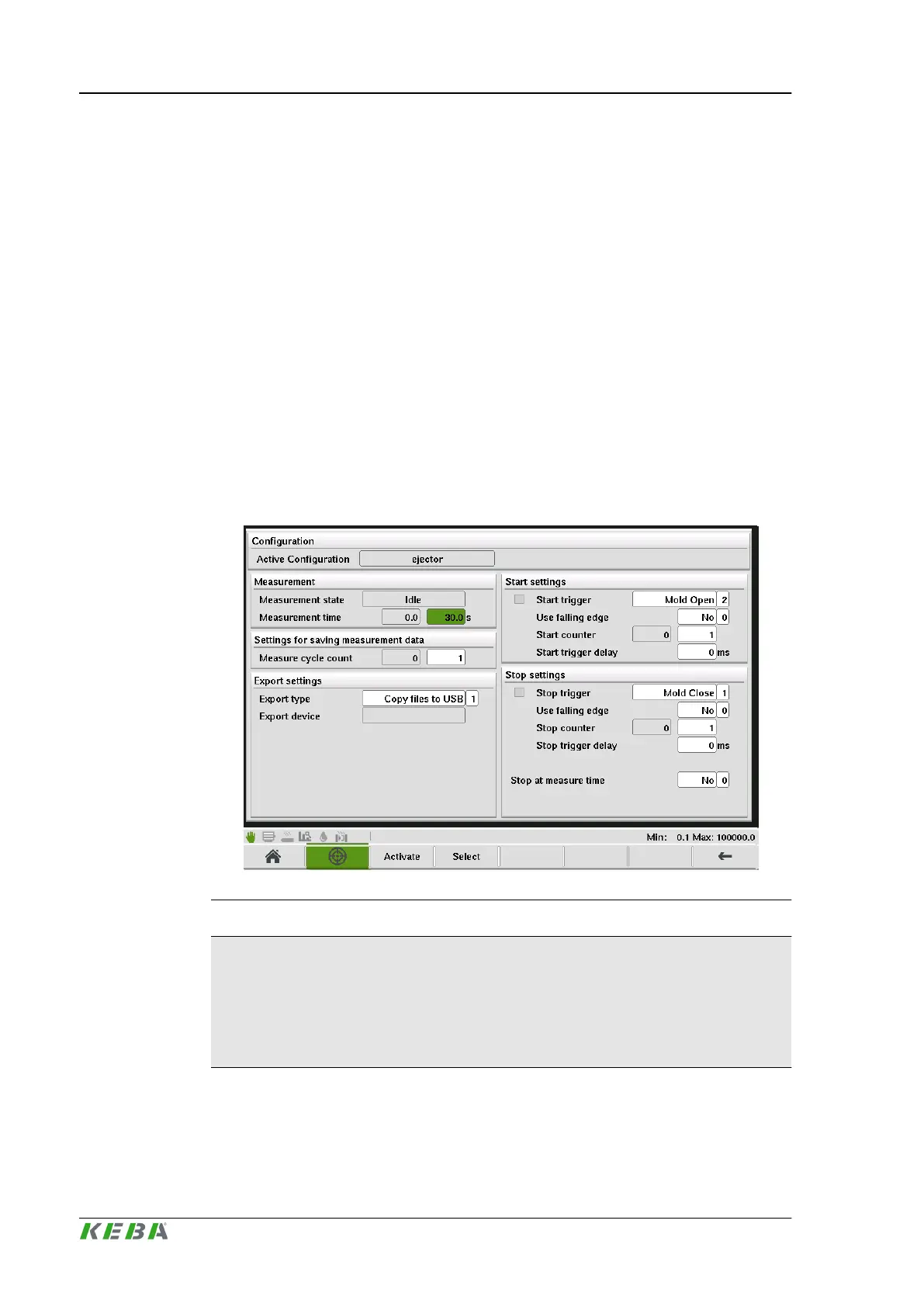

Fig.4-93: Mask '"Scope"
Information
Depending on the number of sampled variables and sampling time of the
tasks, the recording can negatively influence the overall performance of the
system. A recording should only be running if it is needed for system or prob-
lem diagnosis.
