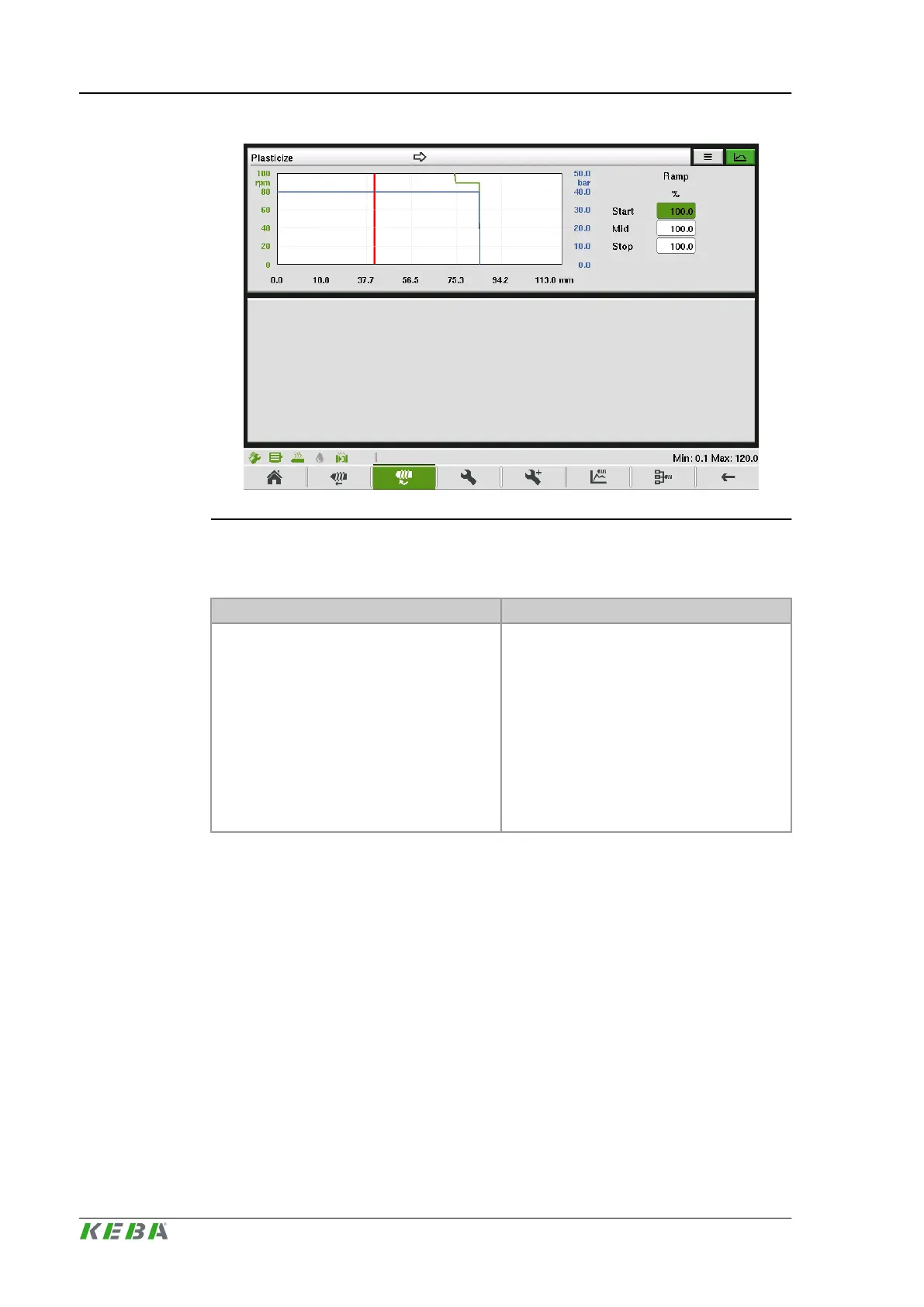

Fig.4-32: Mask "Plast profile graphic"
4.29.3 Description of the elements
Field Description
Ramp
The ramps [%] for movement start, movement
stop as well as for the inner profile of the move-
ment can be specified. The %- value refers to
the maximum ramp profile output settings that
are configured in setup advanced mask.
● Start: Defines start ramp value for move-
ment.
● Stop: Defines stop ramp value for move-
ment.
● Mid: Defines ramp for all inner profile
ramps for movement.
4.30 Inject Setup
4.30.1 Purpose
Additional parameters for injection can be set within this mask.
4.30.2 Description of the mask
Within this mask, parameters for Intrusion, Cold slug eject, maximum move-
ment and movement delay times as well as the constant outputs for the screw
movements can be set.
