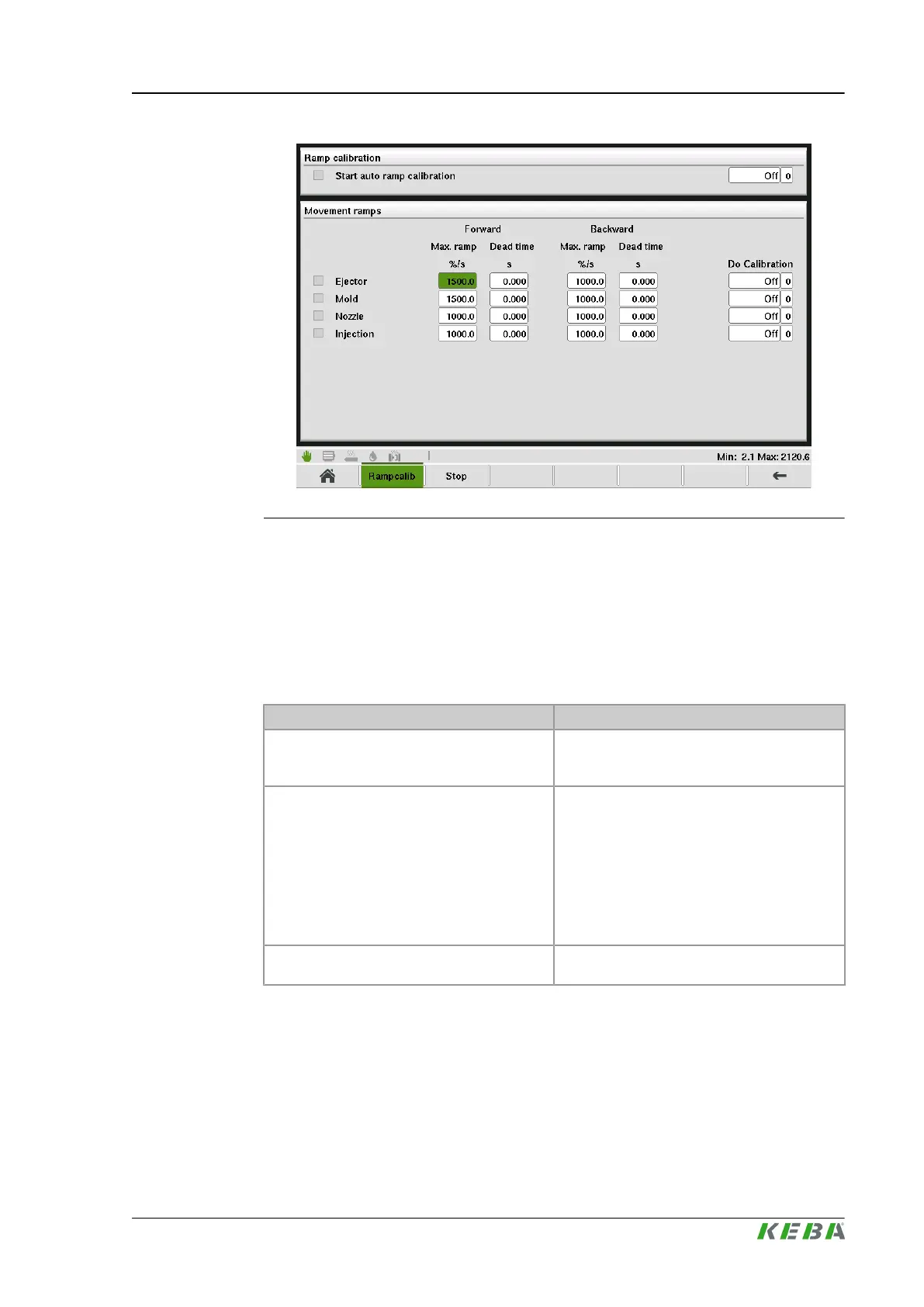

Fig.4-123: Mask "Automatic ramp calibration"
4.117.3 Description of the elements
Ramp calibration
Starts the automatic ramp calibration for all displayed movement ramps.
Movement ramps
Field Description
Max.Ramp
Identified maximum ramp. This value equates
the maximum velocity ramps in masks 'Profiles
1', 'Profiles 2' and 'Profiles 3'.
Dead time
Identified dead time of a ramp.
This value is used for internal dead time com-
pensation during execution of a movement.
The dead time compensation is used to im-
prove the positioning accuracy of a movement.
If a movement doesn't reach its target position
after optimization, the value of the dead time
has to be reduced.
Do Calibration
Starts the ramp calibration for the desired
movement.
