Name Description
Start Index
Since only a maximum of 9 linearization points
can be displayed on the mask, this field serves
for navigation purposes. The input value al-
ways corresponds to the index of the element
displayed first. Example: Value 1: linearization
points 1 to 9 are displayed. Value 17: lineari-
zation points 17 to 25 are displayed, etc.
Modify index
Linearization points can be deleted or added.
The configured index defines which lineariza-
tion point gets deleted resp. after which linea-
rization point a new point gets added.
V / bar
Calibration of the pressure sensors is done by
entering the pressure [bar] and the voltage
[V] for each linearization point.
4.109
Calibration pressure sensor for mold servo valve control
4.109.1 Purpose
When using a servo valve for mold positioning, two pressure sensors for
measuring the pressure drop at the mold servo valve are required.
This mask can be used to manually calibrate these pressure sensors.
4.109.2 Description of the mask
The manual calibration of a sensor is done by entering values in a linearization
table.

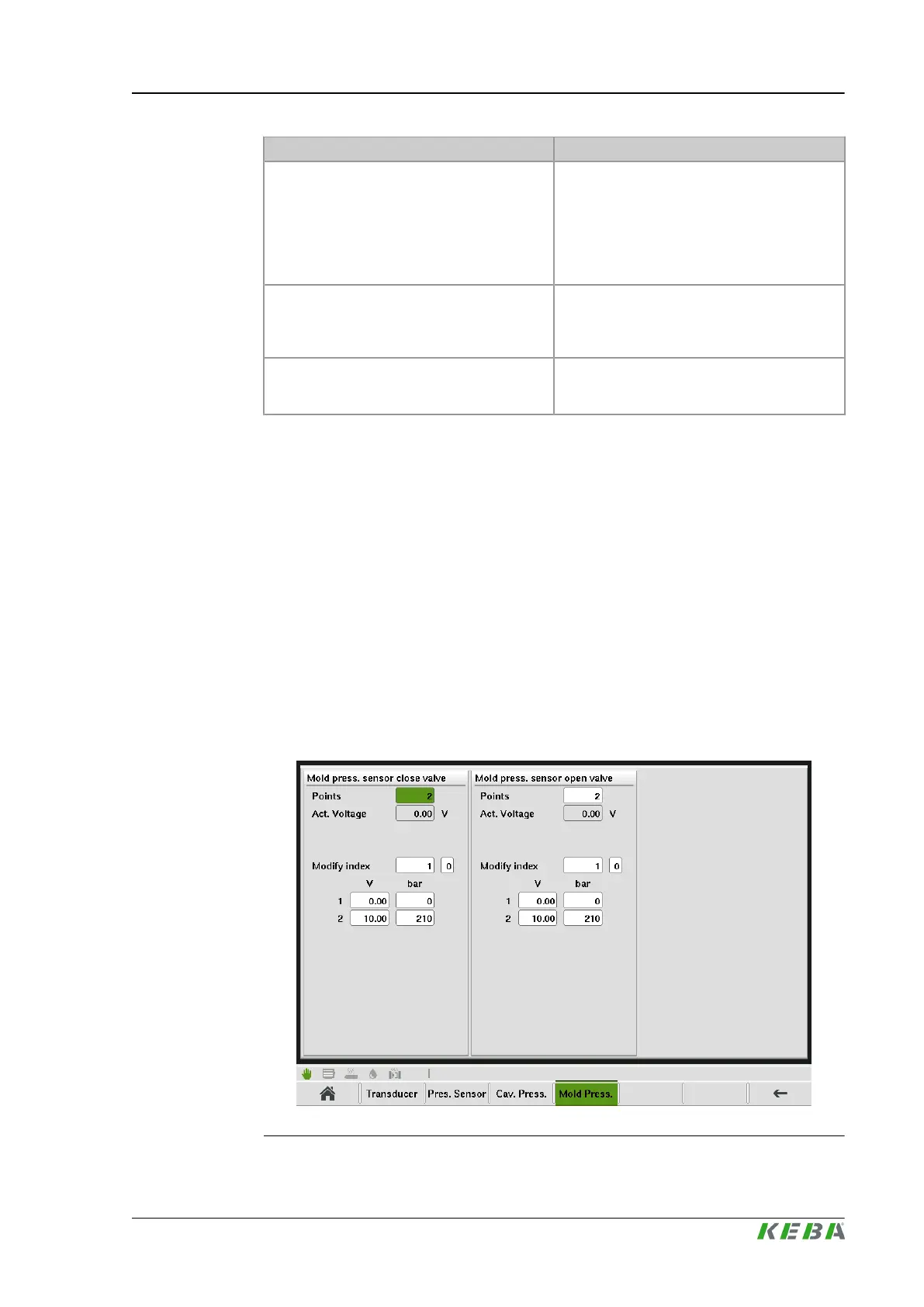

Fig.4-115: Mask "Calibration pressure sensor for mold servo valve control"
KePlast.HMI.KVB
Description of the operating masks
© KEBA 2016
User's manual V3.05 213
