Keba Kemro K2 - Description of the Elements

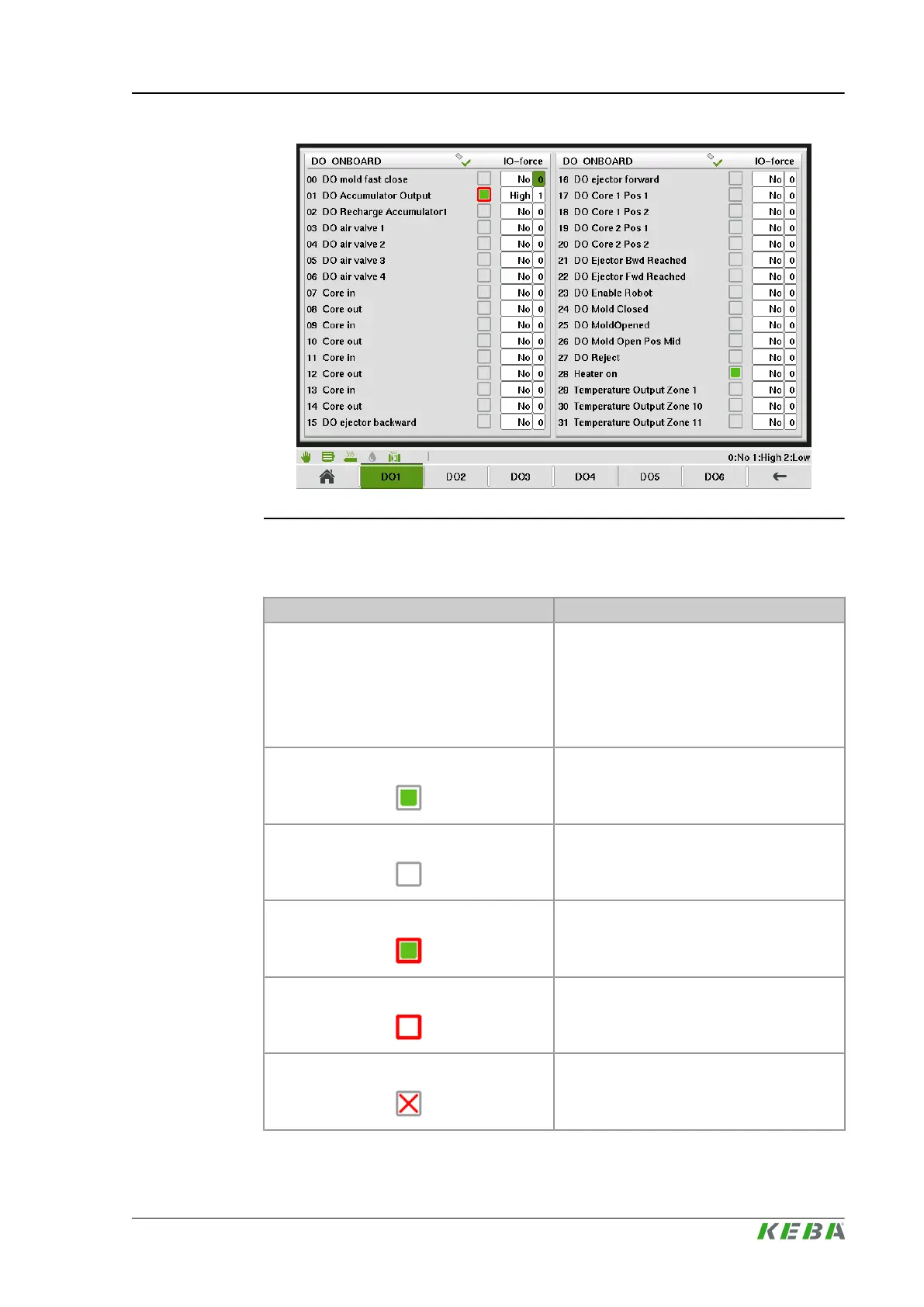

Fig.4-71: Mask 'IO Monitor Digital Outputs'
4.67.3 Description of the elements
Field Description
DO 0...n
The descirption of the digital output is dis-
played.
The left grey field indicates the current state of
the digital output.
The right input field activates the force of the
digital output.
Icon filled green.
Digital output state High
Icon not filled.
Digital output state Low
Icon filled and red border.
Digital output forced.
Icon not filled and red border.
Digital output unforced.
Icon with red cross.
Digital output erroneous.
