4 Description of the operating masks
This chapter describes the masks, which are used predominantly during on-
going production operation.
4.1 Overview mask
4.1.1 Purpose
This mask serves as standard display in ongoing production operation and
provides the operating personnel with an overview of the machine's key data.
4.1.2 Description of the mask
The upper part of the mask provides a graphic display of the states of the
nozzle heating zones. The central part of the mask shows the injection molding
machine. The actual position of the machine axis is displayed below. Further
actual overview data like pressure, velocity and production time of the current
production process are displayed.

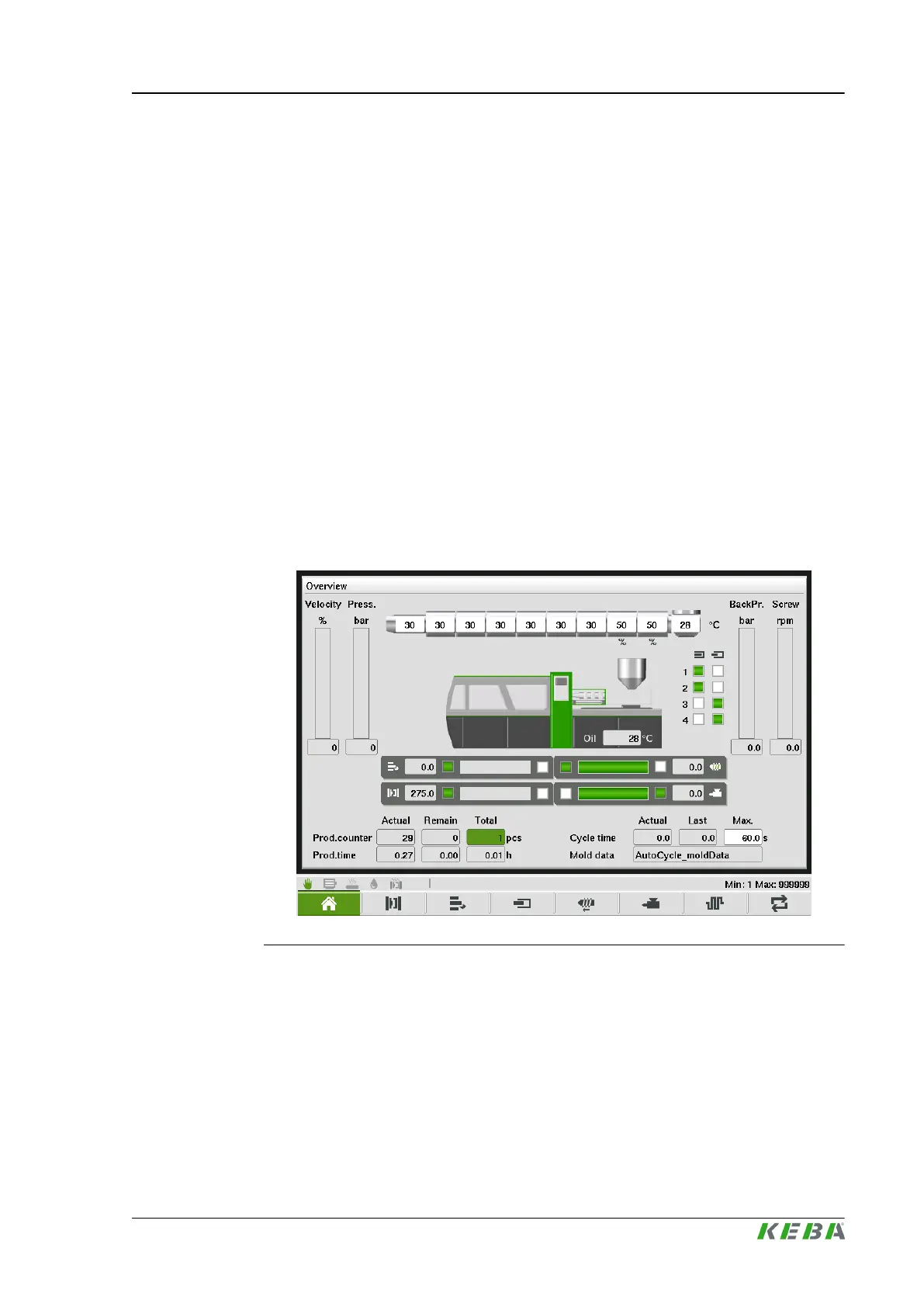

Fig.4-1: Mask "Overview"
4.1.3 Description of the elements
Heating zones
Up to 9 heating zones plus a hopper temperature status can be displayed here.
The current temperature is shown in the middle of the respective heating
zones. Error states of the heating zones are shown in the status bar along the
upper border of the image.
KePlast.HMI.KVB
Description of the operating masks
© KEBA 2016
User's manual V3.05 39
