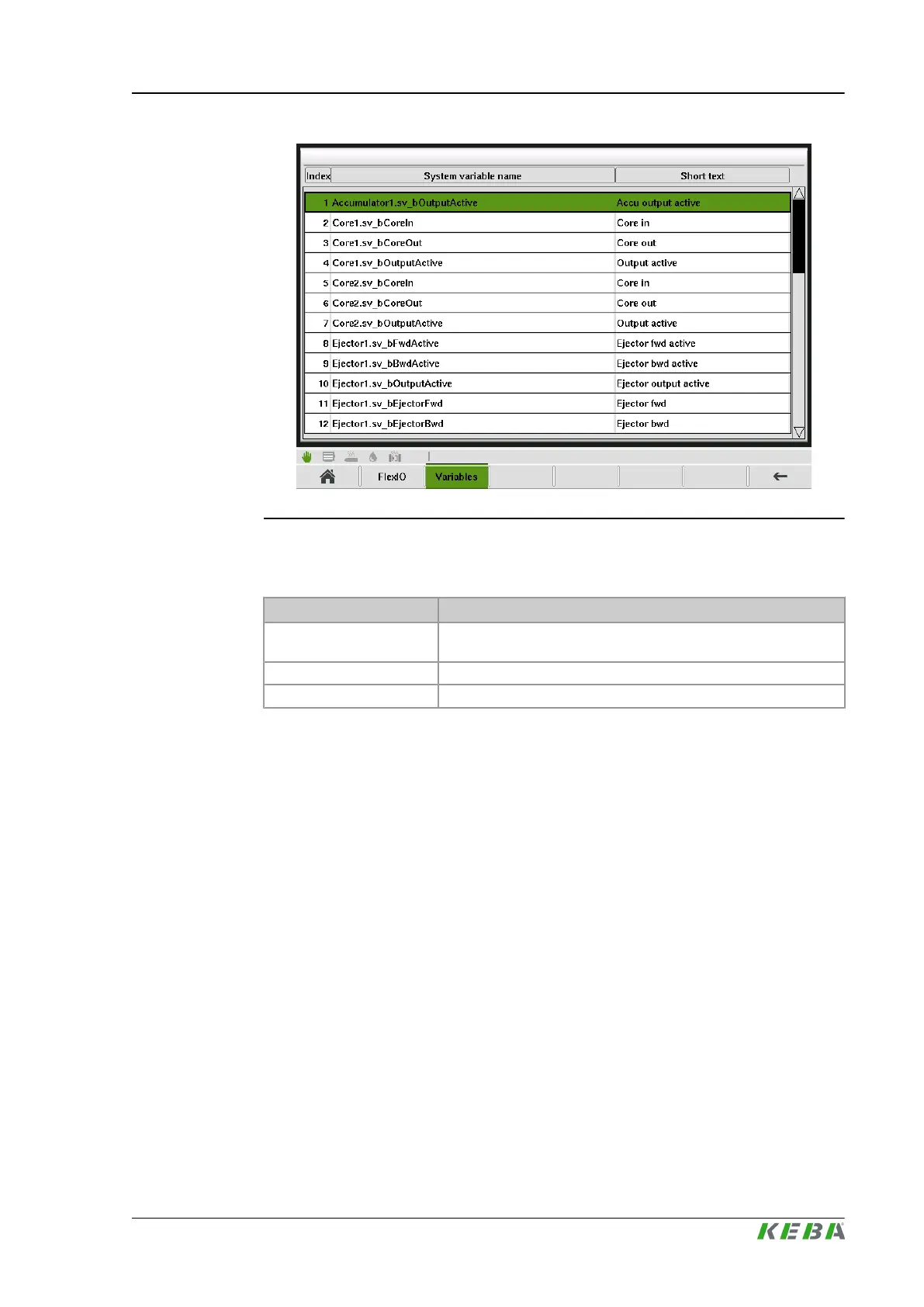

Fig.4-64: Mask "Flex IO SystemVariables"
4.60.3 Description of the elements
Field Description
Index
Index number of the system variable. This index number is used
in FlexIO- mask to select the desired system variable.
System variable name Shows all available system variables.
Short text Short text of the system variable.
4.61 Process data protocol (PDP)
4.61.1 Purpose
The process data protocol (PDP) serves to show process data in tabular form.
4.61.2 Description of the mask
The mask contains a horizontally scrollable list representing statistics and
process parameters for each SPC recorded variable. The buttons <Arrow
up> and <Arrow down> are used for vertical scrolling and the buttons <Arrow
left> and <Arrow right> are used for horizontal scrolling. For page scrolling use
the Quick access panel (button <Esc> and buttons <Arrow up>/<Arrow
down>). The variables shown in the list can be dynamically changed at runtime.
The lower part of the mask shows a quick overview of the most important sta-
tistics. The first column in the process data list shows the scrap flag - a red
(gray) exclamation mark signals an error (warning) in the corresponding shot.
A yellow background in the first column shows a shot being used as sample.
KePlast.HMI.KVB
Description of the operating masks
© KEBA 2016
User's manual V3.05 143
