NTP-008: Circuit Order 365-575-102
Page 6 of 12 Issue 8.0, July 2002
Instruct the technician at the West node to
remove the OC-48 optical fibers (line 1E)
connected to the East node.
—
6.
NOTE:
Refer to Figure 3 to help locate the OC-48 optical fibers that can now
be removed from the East node (fibers connected to West node).
Instruct the technician at the East node to
remove the OC-48 optical fibers (line 1W)
connected to the West node.
—

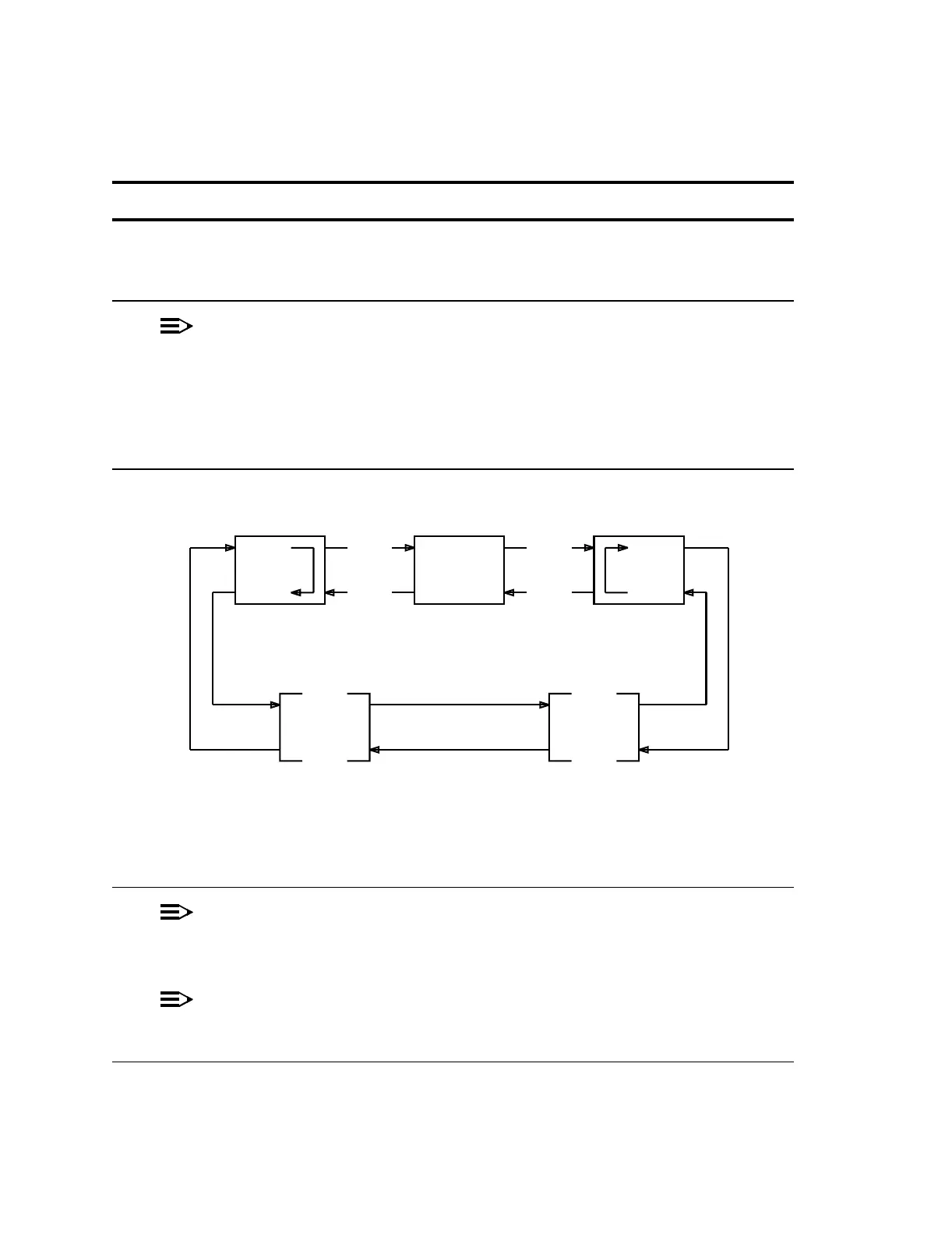

Figure 3 – Optical Fibers Removed
7.
NOTE:
Refer to Figure 4 and notice the new optical connections can now be
made to the "new node".
NOTE:
A transient node ID conflict condition will be observed after the ring is
reconnected.
DOITEMSBELOWINORDERLISTED....... FORDETAILS,GOTO
Line
1W
WEST
NODE
Line
1E
NEW
NODE
EAST
NODE
Other
Node(s)
Other
Node(s)
Line
1W
Line
1W
Line
1E
Line
1E
Line
1E
Line
1E
Line
1W
Line
1W
tpa 832677/01
To Next Page
