365-575-102 Circuit Order: NTP-008
Issue 8.0, July 2002 Page 7 of 12
NOTE:
Lightguide buildouts (if required) are installed on the receive fibers of
the "new node".
Select one of the receive fibers (change the
lightguide buildout as necessary) and con-
nect to the appropriate RCVR circuit pack.
For example, select line 1E of the West node
to be connected to line 1W of the "new
node".
DLP-512

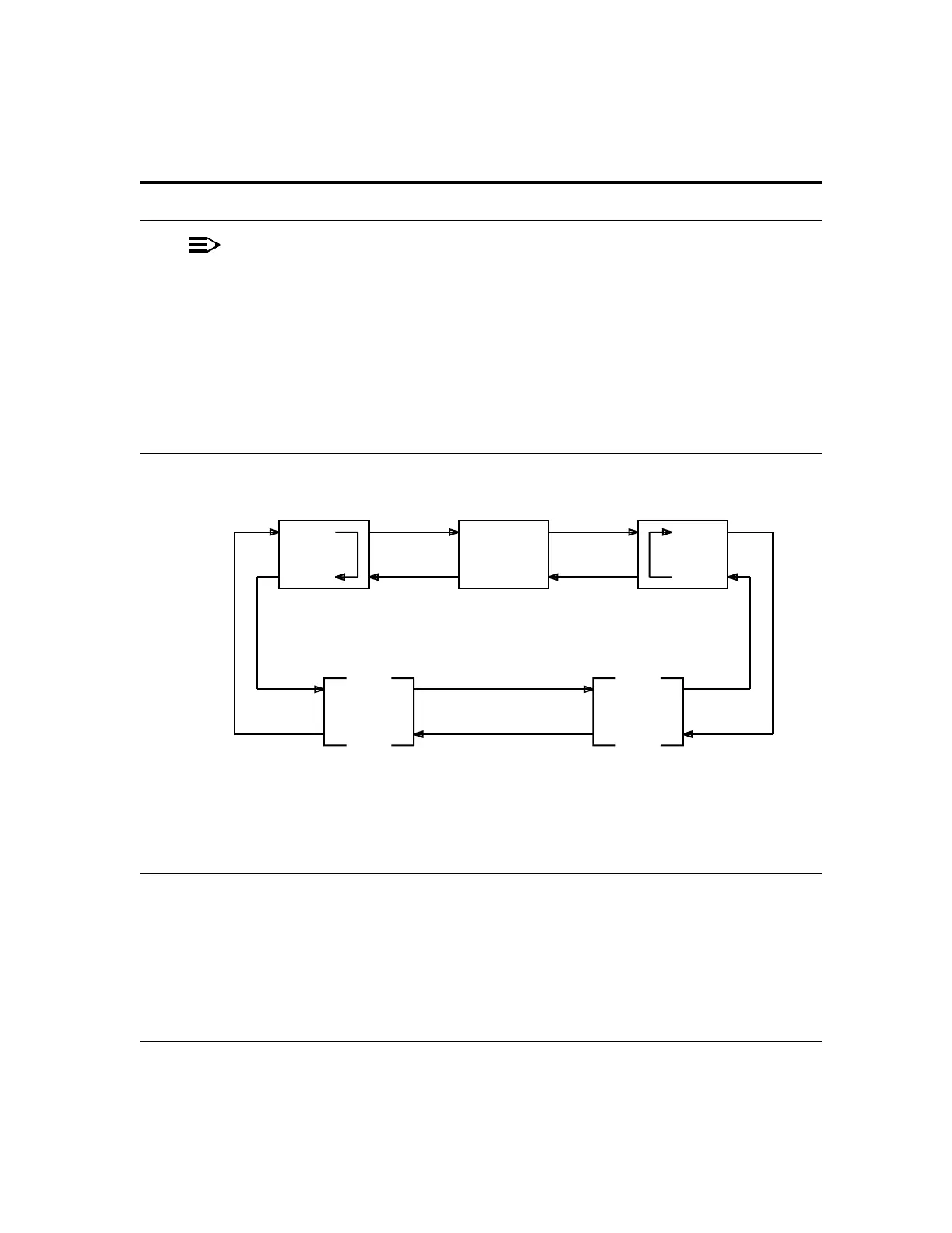

Figure 4 – Optical Fibers Connected to New Node
8. At the CIT, select FAULT-Retrieve-Alarm
command to obtain an Active Alarms and Status
Report and verify an incoming OC-48 LOS
condition does not exist for either the 1E or 1W
receiver (that is, whichever receive fiber that was
connected to the RCVR circuit pack in Step 7) at
the "new node".
—
DOITEMSBELOWINORDERLISTED....... FORDETAILS,GOTO
Line
1W
WEST
NODE
Line
1E
NEW
NODE
EAST
NODE
Other
Node(s)
Other
Node(s)
Line
1W
Line
1W
Line
1E
Line
1E
Line
1E
Line
1E
Line
1W
Line
1W
tpa 832678/01
