365-575-102 Circuit Order: NTP-009
Issue 8.0, July 2002 Page 5 of 8

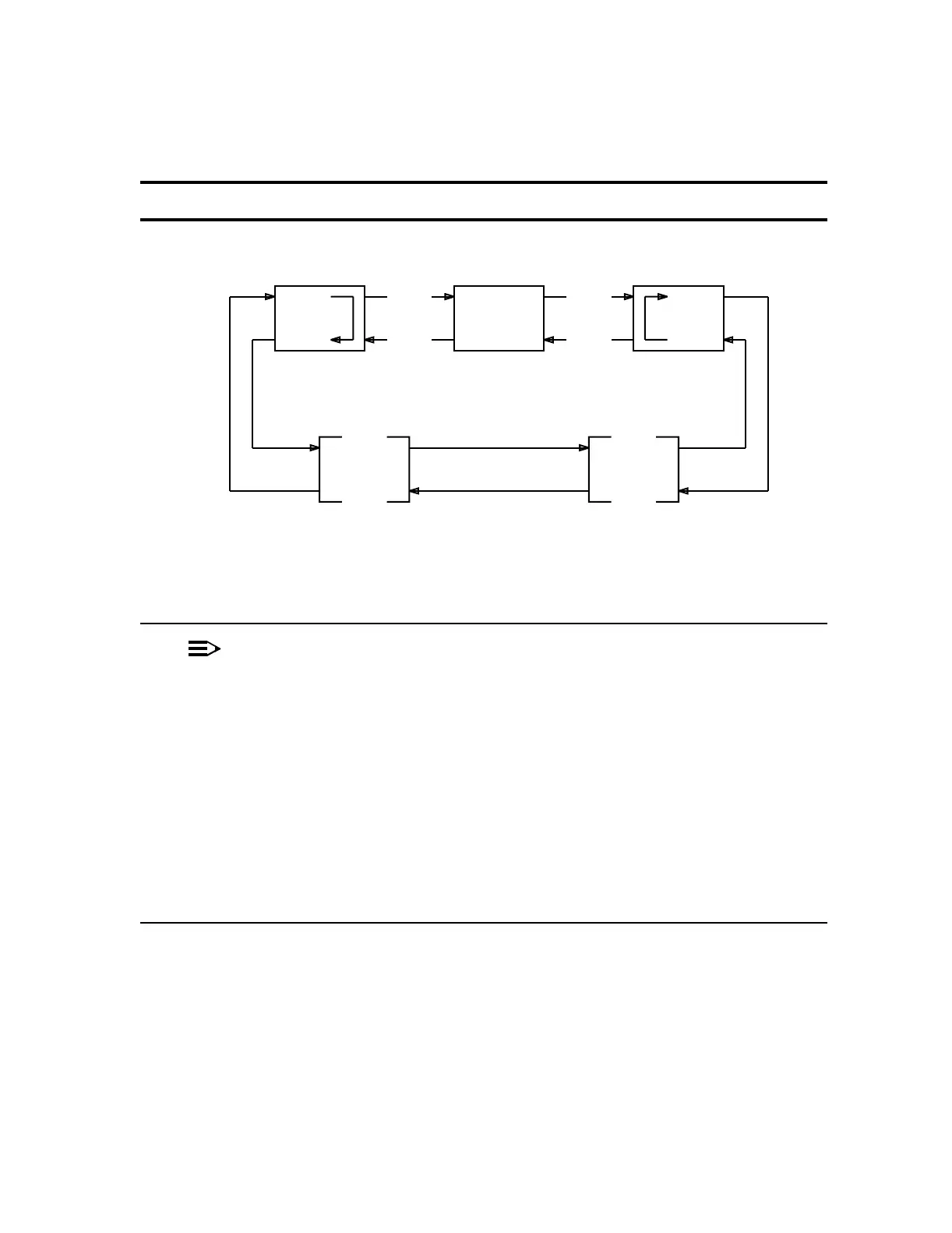

Figure 3 – Optical Fiber Removed
9.
NOTE:
Refer to Figure 3 to help locate the OC-48 optical fibers that can now be
removed at the Node To Be Deleted (fibers connected to the East
Node).
Remove the OC-48 optical fibers at the
Node To Be Deleted (line 1E) that connects
to the East Node. The node is now com-
pletely isolated from the ring. However, the
adjacent nodes (East and West Nodes) get
a sync mode auto switch condition if
they are "through timed" (Provisioned
Mode).
—
DOITEMSBELOWINORDERLISTED....... FORDETAILS,GOTO
Line
1W
WEST
NODE
Line
1E
EAST
NODE
Other
Node(s)
Other
Node(s)
Line
1W
Line
1W
Line
1E
Line
1E
Line
1E
Line
1E
Line
1W
Line
1W
tpa 832682/01
NODE
TO BE
DELETED
