NTP-009: Circuit Order 365-575-102
Page6of8 Issue8.0,July2002
DOITEMSBELOWINORDERLISTED....... FORDETAILS,GOTO
10.
NOTE:
Refer to Figure 4 and notice that new optical connections can now be
made at the West Node and at the East Node (bypass the Node To Be
Deleted).
NOTE:
Lightguide buildouts (if required) are installed only on the receive
fibers at the East and West Nodes.
Instruct the technician at the West Node to
change the lightguide buildout as necessary
and reconfigure the fibers to connect line
1E of the West Node to line 1W of the East
Node.
DLP-512

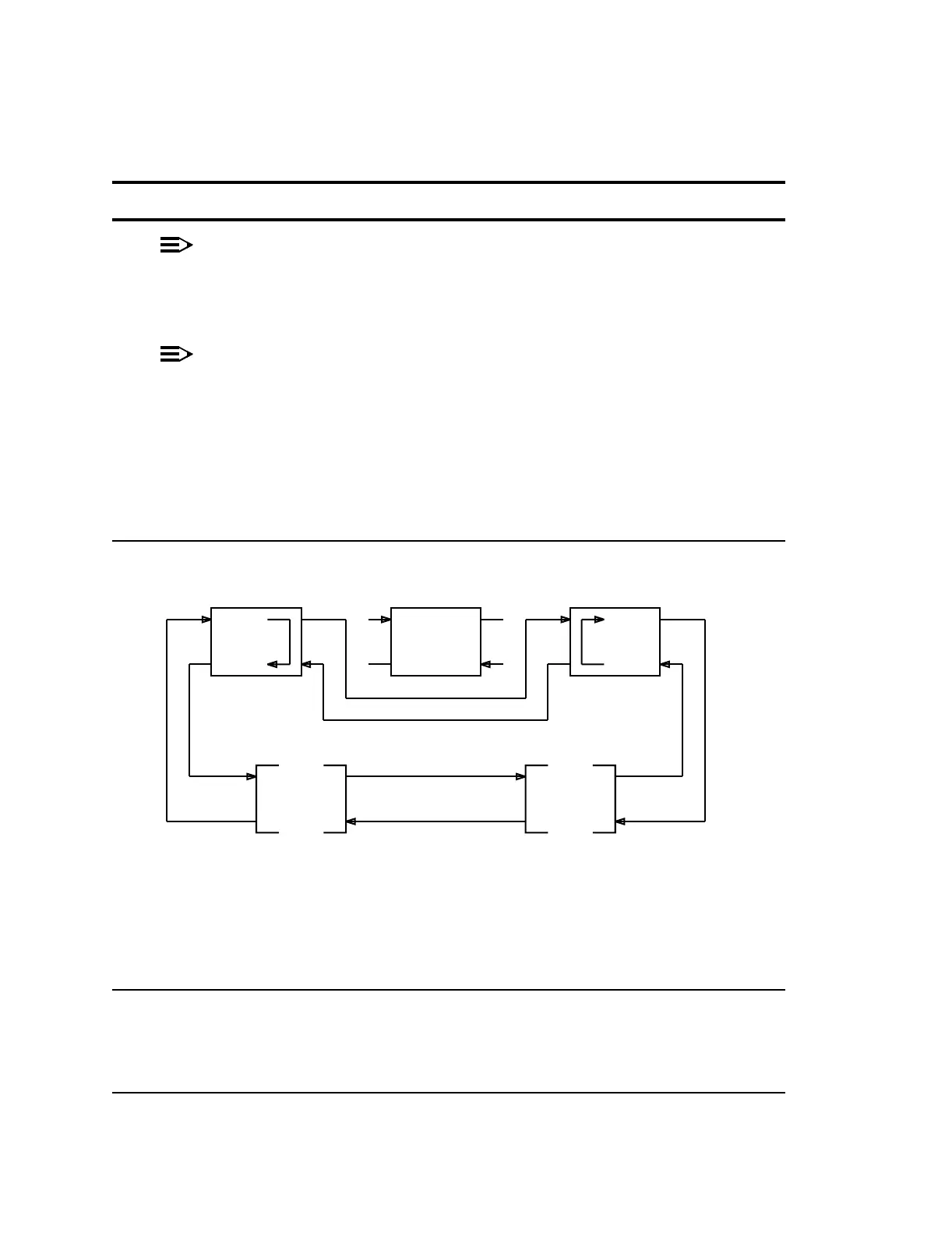

Figure 4 – Optical Fibers Connected to East Node and West Node
11. Instruct the technician at the East Node to
change the lightguide buildout as necessary and
reconfigure the fibers to connect line 1W of the
East Node to line 1E of the West Node.
DLP-512
Line
1W
WEST
NODE
Line
1E
EAST
NODE
Other
Node(s)
Other
Node(s)
Line
1W
Line
1W
Line
1E
Line
1E
Line
1E
Line
1E
Line
1W
Line
1W
tpa 832683/01
NODE
TO BE
DELETED
