Administration and Provisioning
Issue 8.0 July 2002
8-17
The 1-way add, drop, and through cross-connections may be used to provide the
following:
â–  Bridge cross-connections: In Release 4.1, bridge cross-connection is
limited to a drop cross-connection and a superimposed through
cross-connection sharing the same source (drop and continue). The drop
cross-connection and through cross-connection share the same incoming
STS-3 tributary of OC-48 high-speed line 1E or 1W. For example, Figure
8-3 shows incoming service STS-3 tributary 3 of OC-48 high-speed line 1W
cross-connected to outgoing service STS-3 tributary 3 of OC-48
high-speed line 1E. Incoming service STS-3 tributary 3 of OC-48
high-speed line 1W is also cross-connected to service low-speed interface
slot 1A.

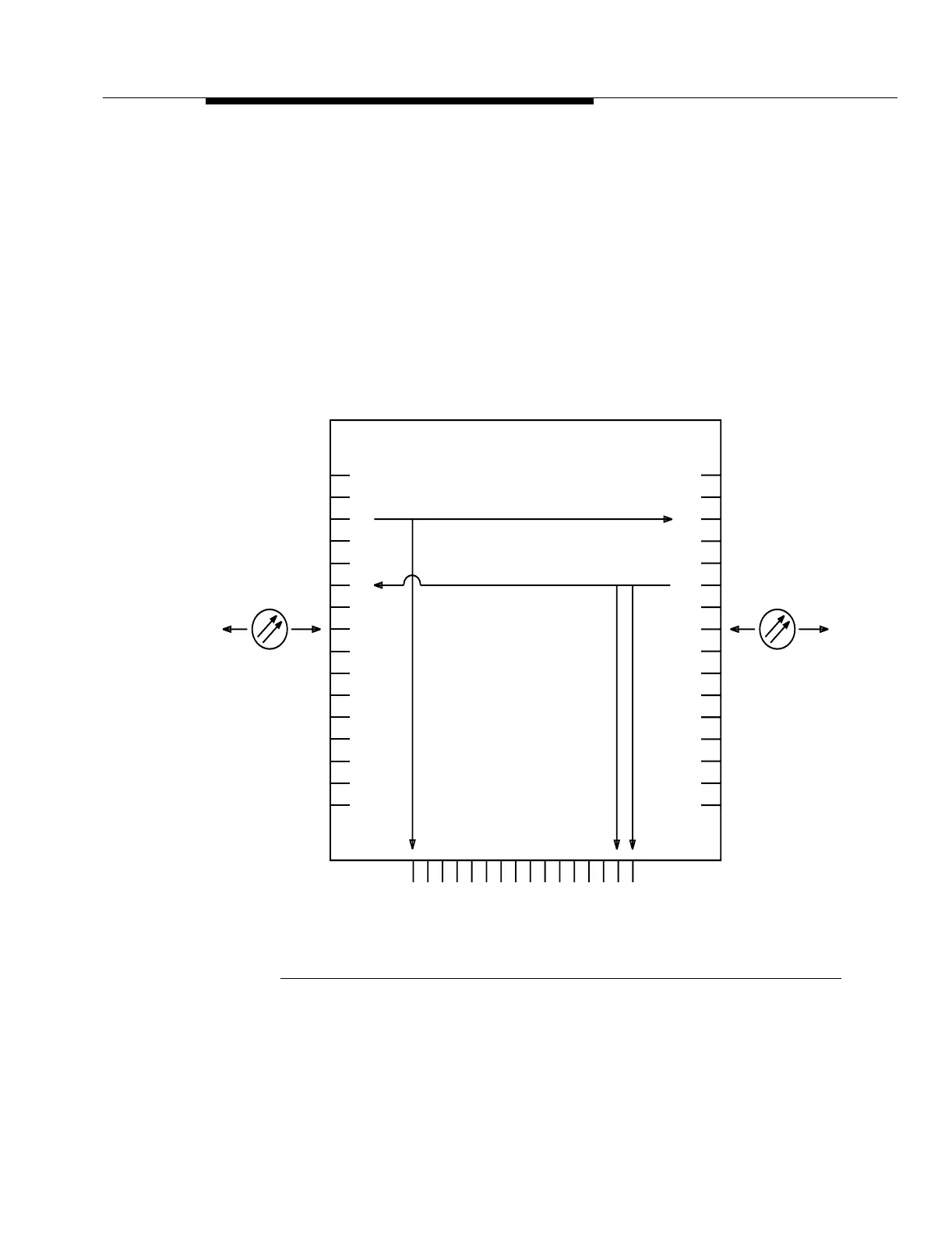

Figure 8-3. STS-3 Bridge Cross-Connections at an FT-2000 OC-48
Add/Drop-Rings Terminal
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
FT-2000 OC-48 Add/Drop-Rings Terminal
STS-3 Tributaries
1A 8B
OC-48
1E
Low Speed Interface Slots
OC-48
1W
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Through
Drop
Drop
Through
8A
