Parker EME
Communication
192-121102 N04 June 2008 401
Master Receive Mapping Table (max. 4)
Please select the mapping table number, which was defined in the slave (under
transmit mapping table).
Please enter where the data received shall be written (e.g. into an array object).
Please use the data formats as defined in the mapping table of the slave.
For axis coupling, please use the
coupling object (see page 412) O3920.1 in the
DSP format (see page 395) as an input (selection by clicking on the DSP switch).
Please make sure that the DSP switch is activated on the master and the slave
side in DSP format.

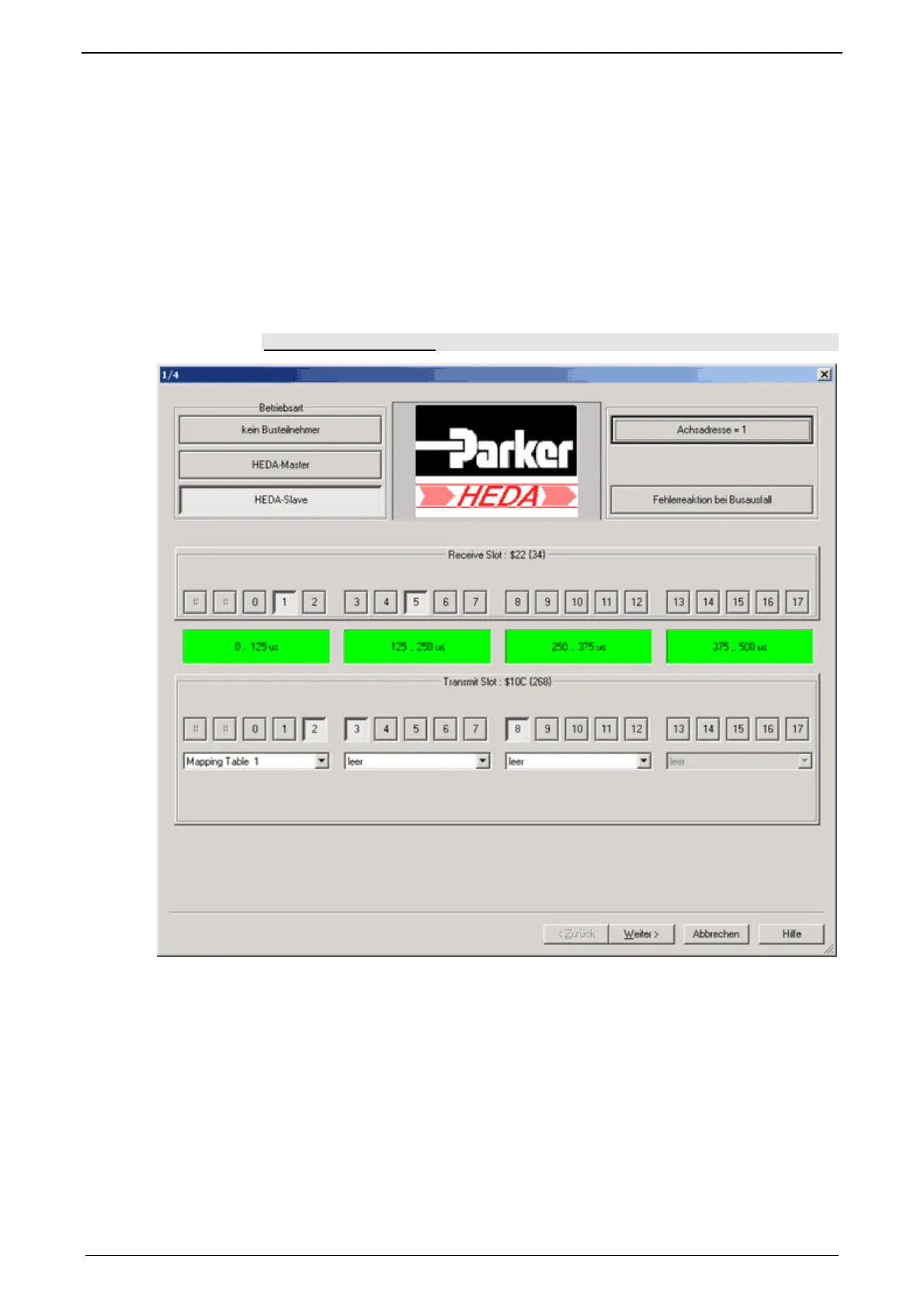

Setting the HEDA slave
HEDA slave settings:
Activating the HEDA Slave
Assigning the axis address = 0 (can be changed by clicking)
Setting the error reaction (from Compax3) at bus failure:
activated: Compax3 switches to error state in the case of a bus error.
deactivated: Compax3 will ignore a bus error.
Note:
