RHK Technology R9 - Feedback Loops; Figure B.15. Lock-In Amplifier Operating Independent of the Inputs

To Next Page

To Previous Page

Hardware Space Components

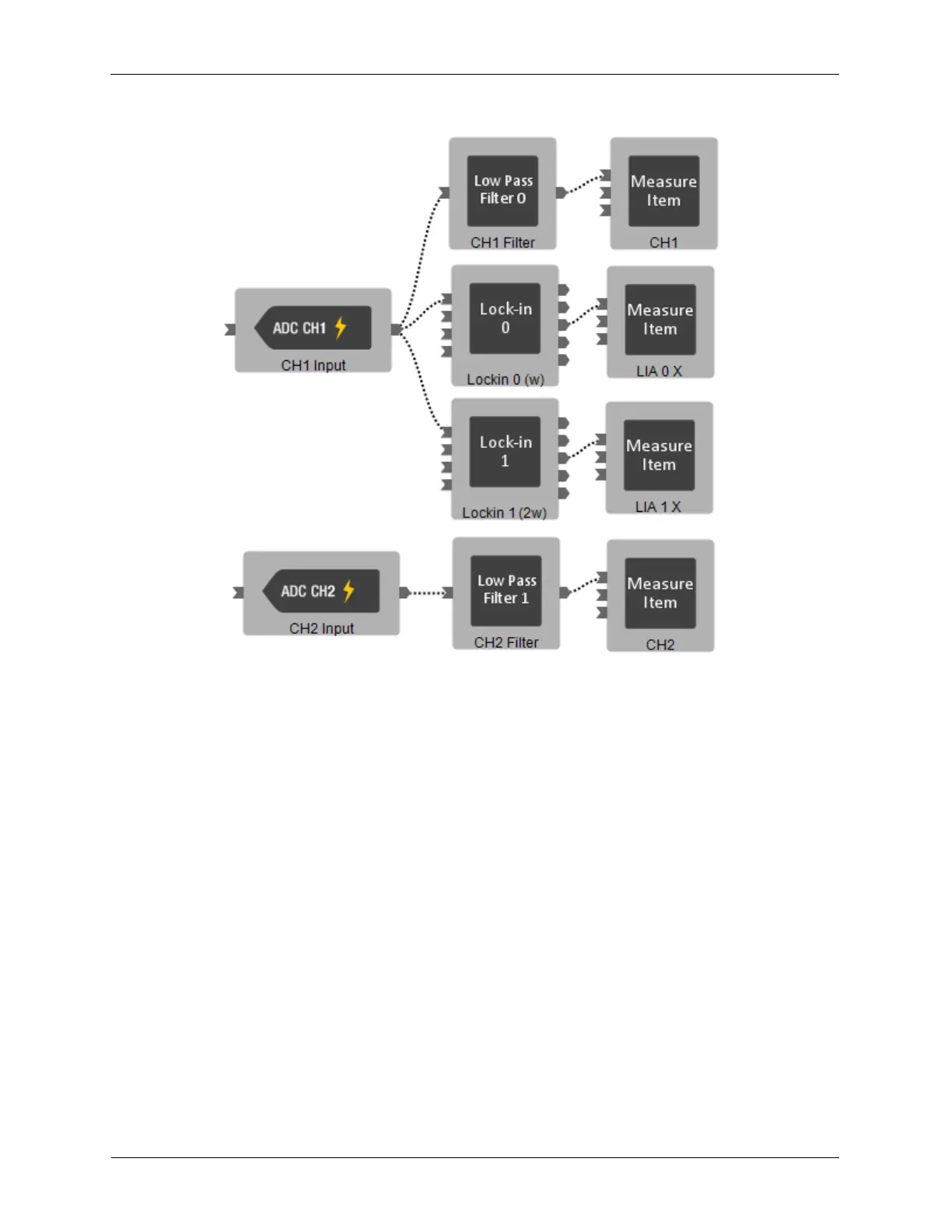

Figure B.15. Lock-in Amplifier operating independent of the inputs

B.7. Feedback Loops

There are two general purpose Feedback Loops (PI) available for use in controlling the SPM. These PI

icons are found in the Probe Interface Signal drawer of the Item Palette. The PI controller labeled Z PI

Controller is generally used for the feedback control of the Z Piezo. The PI controller labeled Kelvin PI

Controller is generally used for control of the sample bias in Kelvin Force Microscopy (KFM)

experiments.
