RHK Technology R9 - Z Scan Input Added to the Piezo Tube Item; External Hardware Item for AFM Cantilevers; Figure B.42. PPC200; Figure B.43. a -Z Scan Added to the Piezo Tube Item

Hardware Space Components
105
PPC200 are external to the R9 controller and do not need to be connected by virtual wiring. The PPC200
has a USB connection that plugs into the PC. The driver for the PPC200 is already part of the R9
software package and no further drivers are required.

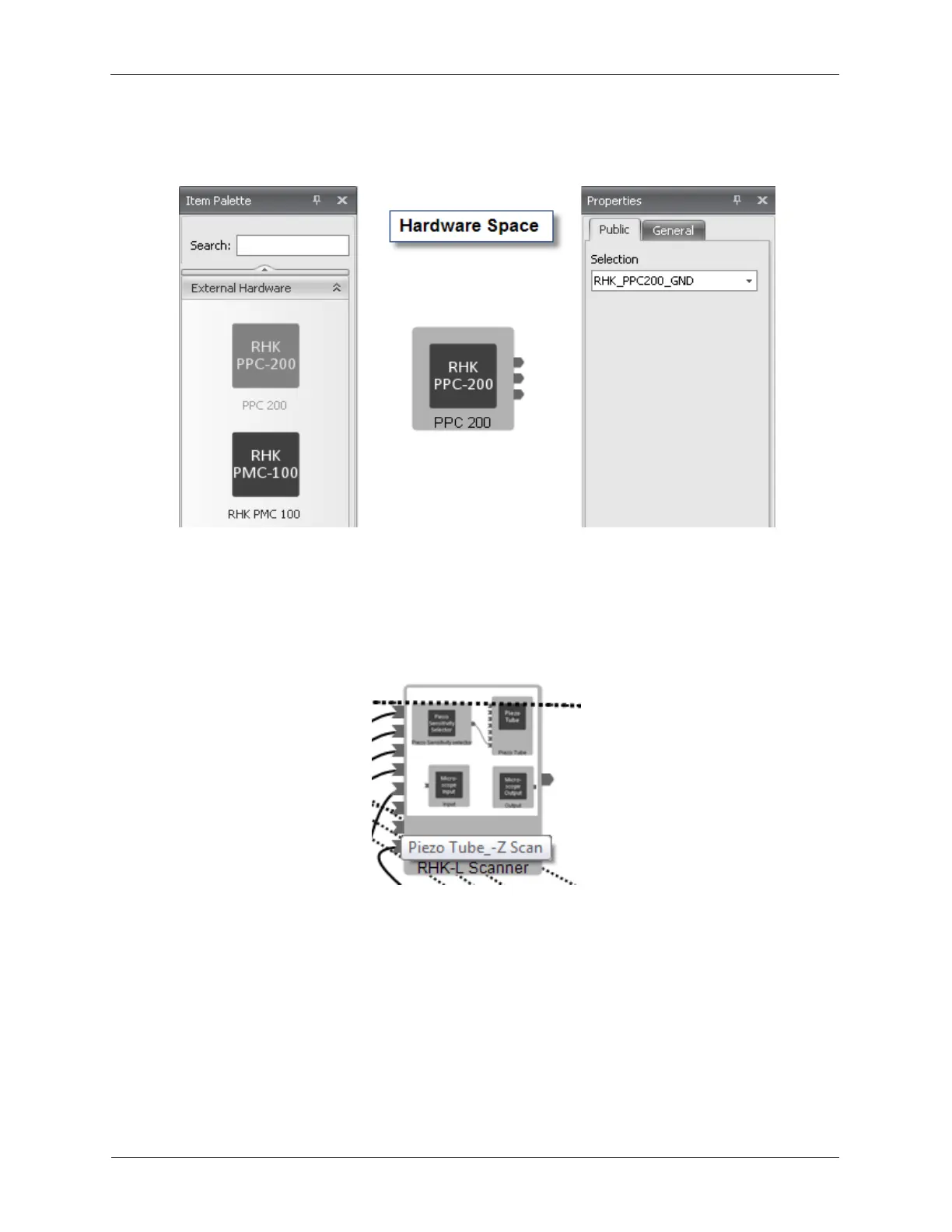

Figure B.42. PPC200
B.19.4. Z Scan Input added to the Piezo Tube Item
The piezo tube item has a -Z Scan input for increased flexibility for special case scan-head designs.
Figure B.43. A –Z Scan Added to the Piezo Tube Item
B.19.5. External Hardware Item for AFM Cantilevers
The AFM Cantilever item allows the user to enter the Spring Constant (N/m) and Detector sensitivity
(m/V) so that the input unit will be Newtons.
Figure B.44. External Hardware Item for AFM Cantilevers
