RHK Technology R9 - R9 DC Power Output 9-Pin Female Connector; Figure D.2. DC Power Output 9-Pin Female Connector

To Next Page

To Previous Page

R9 Connector Pinouts

115

D.2. R9 DC Power Output 9-Pin Female Connector

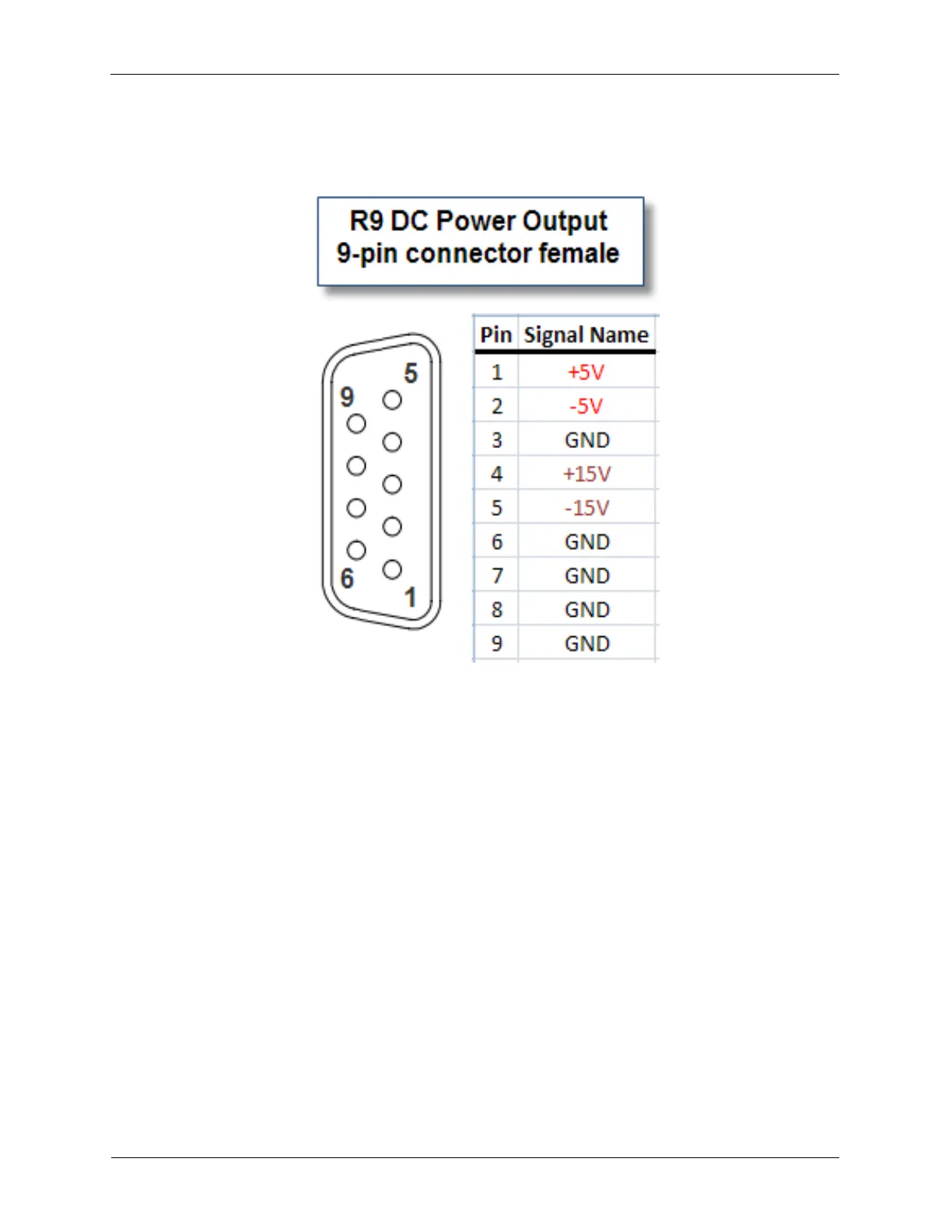

Figure D.2. DC Power Output 9-Pin Female Connector
